Computer Setup for Switching to Static IP
Windows10 Computers
1. Go to Settings>Network & Internet>Local Area Connection>Properties
2. Select Internet Protocol Version 4 (TCP/IPv4) then select Properties
3. Select "Use the following IP Address"
4. Enter IP Address: 192.168.144.99
5. Enter Submask: 255.255.255.0
6. Select "OK"
7. Open internet browser
8. Enter default IP Address of the WiP7500 – 192.168.1.155
9. When complete, reset computer to original TCP/IP settings
MacOS Computer Settings
1. Go to System Preferences>Network
2. Select "Ethernet" in left column list.
3. Change Configure IPv4 from "DHCP" to "Manually"
4. Enter IP Address: 192.168.1.99
5. Enter Submask: 255.255.255.0
6. Select "Apply"
7. Open internet browser
8. Enter default IP Address of the WiP7500 – 192.168.1.155
9. When complete, reset computer to original TCP/IP settings
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15 - 5.25GHz band are restricted to indoor usage only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
Wi3 Patents #6,108,331 and #7,027,431 apply.
Wi3 Pub. WiP7500.QSGv12
Quick Start Guide

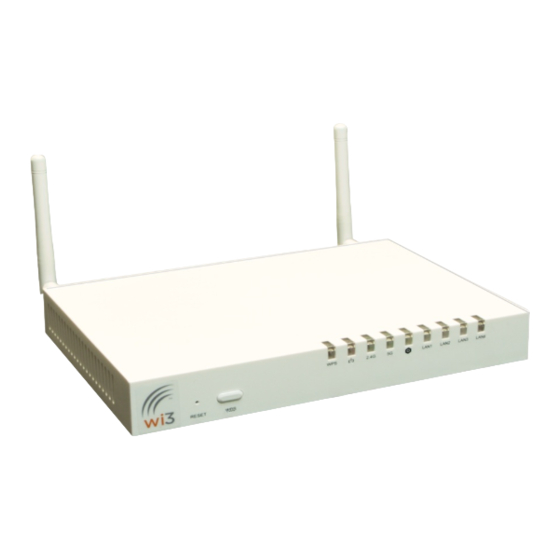

WiPNET WiP7500
MoCA 2.0 WiFi
Contents
• One WiP7500 MoCA2.0 802.11ac WiFi AP
• One External Power Adapter – 12v/2A
• Two RF Antennas
• Quick Start Guide
WiP7500 Connections
Ethernet Ports
12v DC Power
Antenna

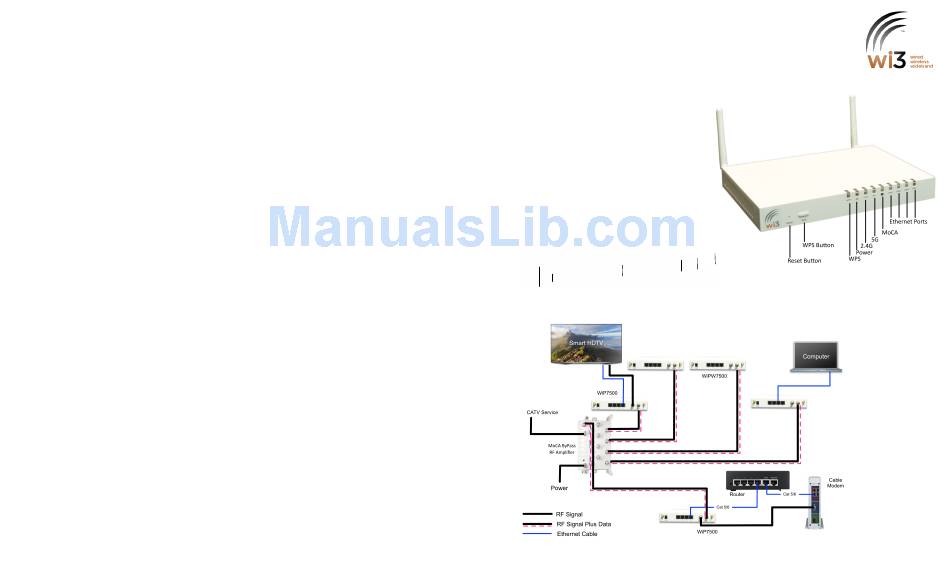

System Installation Overview
Antenna
Cable In
Cable Out
(TVPlus Data)
(TV Only)
LED Indicators
• Replace any existing RF
amplifier with a MoCA
ByPass amplifier for best
results.
• CATV and Off-air
compatible. Not for use
with Satellite TV Systems
• WiP7001 may be used at
Cable Modem connection
instead of WiP7500 if WiFi
is not needed in that
immediate area.
