FILA FILACTIVE 38-980 User Manual

FILActive
User
FCD006
38-980
FCA011CH
38-131
38-048
www.fila.com/watch
1

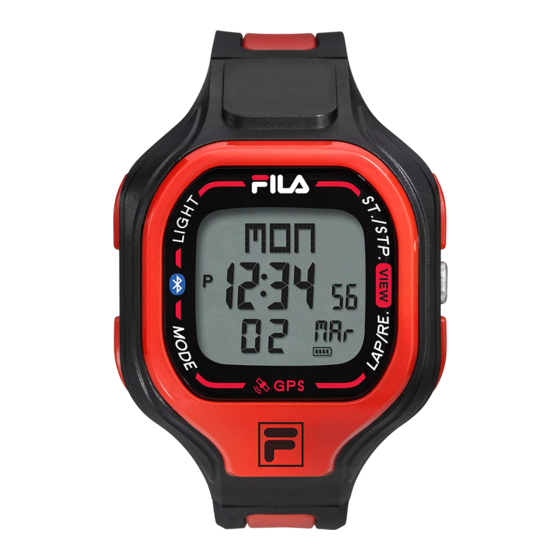

Design of the Watch
Thank you for purchasing this watch.
Please read this manual thoroughly before using the watch!
[L]
LIGHT
[M]
MODE
LIGHT Button [L]
• Press to turn ON the EL backlight for about 3 seconds.
• At Home Time Mode, Hold to enter Night Mode.
(Press once to exit)
• Hold to change fields in Workout Mode.
Mode Button [M]
• Press to select among the functional displays.
• Hold to enter the setting mode.
• Hold to fast exit to function modes when you are several levels
down the menu.
• Press to exit setting or go back one level up the menu.
• Hold to change fields in Workout Mode.
Start/Stop Button [S/S]
• Press to move forward.
• Press to increase watch data.
• Press to Start / Stop Workout / Chronograph.
VIEW Button [V]
• Press to enter sub-modes or workout view.
• Press to make selection / confirmation.
• Hold to change fields in Workout Mode.
Lap/Reset Button [L/R]
• Press to move backward.
• Press to decrease watch data.
• Press to take laps in the Workout Mode.
• Hold to clear the workout data.
2

Specifications

GPS
• 5 fully customized profiles (Running, Cycling, Hiking, User-1,
User-2) for fast workout setup
• 2 configurable workout views (screens) for each profile
• 3 programmable fields for each view
• Auto Lap (lap taken by distance)
• 99 laps per workout
Interval Workout Features
• Total 4 programmable interval steps
• Intensity level of each step can be selected among 6 levels
• Each step time can be pre-set
• Repetition pre-settable
• Visual and audio alerts during step advance
• Result can be saved and reviewed at History
Hardware Features
• Super compact, small size and light weight
• Ergonomic body and strap design for comfortable wearing
• BLE (Bluetooth) chest strap
• EL backlight
• Rechargeable lithium polymer battery
• Bluetooth communications with iOS and Android phones
Other Features
• Programmable heart rate zone with high / low limit alerts
3
Install the [App]
To fully utilize the Watch, you need to use with the [App];
FilaGPS. Please visit our website for app information:
www.fila.com/watch, or download directly from the App Store or
Google Play.
FilaGPS
TO START: Please set up all info requested in the app SETTINGS.
Incorrect or missing information can result in inaccurate workout
activity recordings.
The Main Unit can store up to 30 days of data, however, we
suggest that you sync your data to the FilaGPS app at least
once a week.
4
Major Function Modes
Clock Mode
MANUAL
FM-726.1
Alarm mode
[S/S]
5
ST / STP
[V]
Setting Modes
VIEW
[L/R]
LAP / RESET
hold [M]
HR Chest Strap
Paring
Auto Lap
Distance
Heart Rate Zone
On/Off
Gender
General Setting
• Press and Hold [M] button for 3 seconds to enter settings mode.
• Press the [S/S] or [L/R] buttons to adjust the value (Increase or
Decrease) of the flashing setting. Hold [S/S] or [L/R] buttons
to adjust the value faster.
• Press [V] to confirm the value and move to the next setting.
Function Setting
• GPS Clock Sync (ON/OFF) : Enable the watch to use GPS to set
the time automatically. The current time will not change until
the next time the watch is connected to the GPS satellites. If the
setting is OFF, the next screens will ask you to set the time
and date ( Seconds, Minutes, Hour, Year, Month and Day ).
• DST (ON/OFF): Turn ON this feature if daylight saving time is start.
(Only when GPS Clock sync is set ON)
• 12/24 Hour Format: Select between 12 or 24 hour format.
• Dual Time: Set the second time zone.
• Unit: Select the perferred unit between Metric (MET)/ Imperial (IMP).
• Auto Lap - Distance and ON/OFF: Allows you to automatically
record a new lap at a preset distance.
• Scroll (ON/OFF): Auto scroll between two preset screen in workout
mode. See chapter 6 to set the display data.
• Maximum and Minimum Heart Rate Zone
• Heart Rate Zone Alert On/OFF
• Gender (M/F)
• Weight
• Keytone (ON/OFF): Button "beep" sound
• Contrast (1-16): Change the screen brightness
NOTE: When the setting is completed, Press and Hold [M] to exit
the setting display. The Watch will also exit the setting display if
NO key-stroke has been activated for 1 minute.
[M]
Workout mode
[M]
Interval mode
[M]
History mode
Clock Mode Display
[V] [V]
App
GPS Sync
Paring
Clock On/Off
[V] [V]
Hour Minute Second
[V]
[V] [V]
Year Month
[V] [V]
Units Time 2 Format
[V]
[V] [V]
Auto Lap
View Scroll
On/Off
On/Off
[V] [V]
Minimum Maximum
Alert
Heart Rate Zone Heart Rate Zone
[V]
[V] [V]
Key Tone
Weight
On/Off
[V] [V]
Reset Language Contrast
[S/S] / [L/R]
hold [S/S] / hold [L/R]
Increase /
Increase the number
Decrease
at a higher speed
the number
[V]
6
Workout Mode
[M]
How to start the Workout Mode
• Press [M] in the Clock mode to enter the Workout mode.
• Press [S/S] to Start/Stop the Workout. Heart Rate and
GPS is turned ON automatically at start.
Mark Laps
• Press [L/R] to take Laps. The maximum number of laps
for a single workout session is 99.
Reset Workout / Navigation
• When workout has been stopped, hold [L/R] until you
[M]
see the SAVED popup message to reset workout. This
clears the current session of workout data and prepares
you to start another new workout. Workout data are
recorded and stored in the memory at reset.
• See chapter 10 to check your workout history.
How to change the Workout view
• Press [V] to select among the 2 preset displays. These
2 displays will be shown in sequence when the Scroll
function has been turned ON. Each display stays for
about 3 seconds.
• See chapter 5 to turn Scroll ON/OFF.
NOTE: See next chapter to select the Workout profiles,
customize the data display and review the workout history.
NO key-stroke has been activated for 1 minute.
7
Workout Mode- Workout Profile
[V]
Day
[V]
How to select Workout Profile
• Hold [L/R] to view 5 workout profile.
• When the desire workout profile appear on screen,
release the [L/R] to confirm and select the profile.
[V]
How to customize the Workout view data
• Hold [L] to select the Line 1 profile, release the [L] to
confirm.
• Hold [V] to select the Line 2 profile, release the [V] to
confirm.
• Hold [M] to select the Line 3 profile, release the [M] to
confirm.
How to reset and save the Workout data
[V]
• Hold [L/R] to save and reset when workout mode stop.
• The screen show "Saved!"
Altitude
Lap No.
Lap Time
Time
Latitude
Distance
Workout mode
Line 1
Line 2
Line 3
[V]
Workout mode
Line 1 and Line 3
Calories Distance
Heart Rate Duration
Pace Pace
(Average) (Current)
Speed Speed
(Current) (Average)
Longitude
Line 2
Duration Heart Rate
Speed Pace
