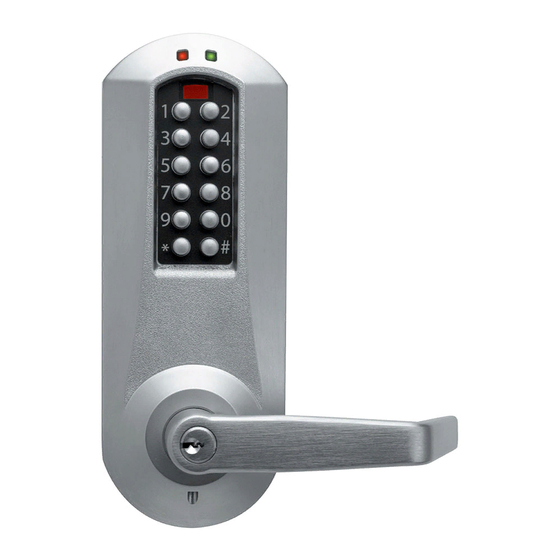

Kaba E-Plex 3200 Quick Reference Manual

3200 / 5200
To begin, put lock in programming mode by pressing: #Master Code#
Summary of Pushbutton Programming Commands
Name
Configuration
Manual
Passage
Global
Lockout
Diagnostics
Communication
Startup
Kaba Access & Data Systems Americas
2941 Indiana Avenue
Winston-Salem, NC 27105 USA
Tel: (800) 849-8324 (336) 725-1331
Fax: (800) 346-9640 (336) 725-3269
www.kaba-asdamericas.com
Quick Reference
Guide
Command
000 #
MMMMMMMM#
MMMMMMMM#
001#
MMDDYY#
MMYYDD#
002#
HHMM#
HHMM#
399 #
P#
499 #
L#
500 #
1234567890*#
501 #
900#
Description of Command
'Modify Master User Access
Code (lock's activation)'
(Always 8 digits)
'Date Setup' (MM = 01 to 12;
DD = 01 to 31; YY = 00 to 99
'Time Setup' (HH = 00 to 23;
MM = 00 to 59)
'Activate/De-Activate Passage
Mode' (P = 0 or 1; 0 = disable
Passage Mode; 1 = enable
Passage Mode)
'Activate/De-Activate Lockout
Mode' (Master User not affected
by Lockout Mode) (L = 0 or 1;
0 = disable Lockout Mode;
1 = enable Lockout Mode)
'Manual diagnostics'
Identify if the lock is an
E-Plex™ 5000, 5200, 5700,
or 5800
'Communications startup'
Authorization
Master
Master, Mgr
Master
Master, Mgr
Master, Mgr
