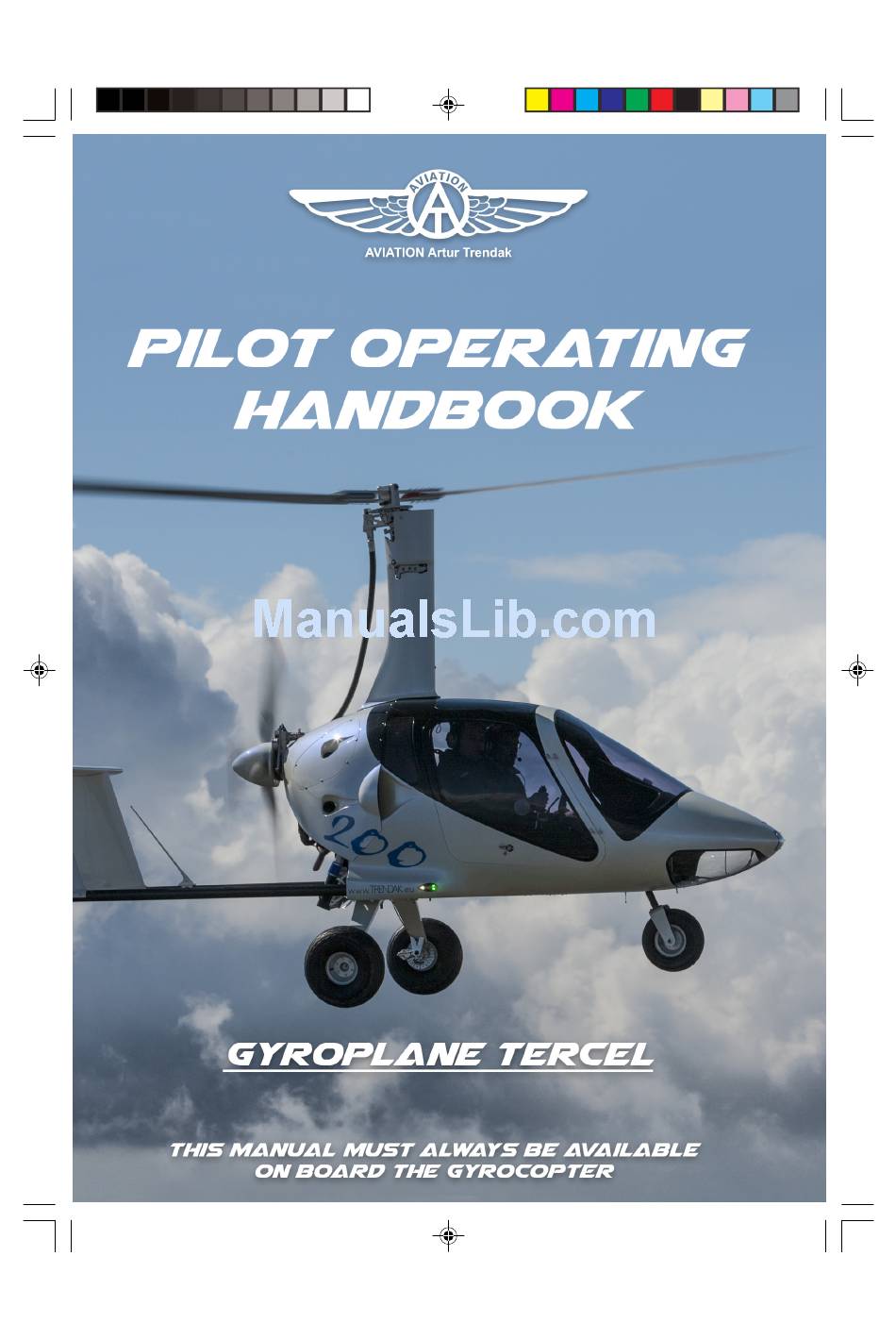

AVIATION ARTUR TRENDAK
PILOT OPERATING
HANDBOOK
GYROCOPTER
TERCEL
SERIAL NUMBER:
REGISTRATION MARKS:
NUMBER ON FILE:
THIS MANUAL WAS APPROVED BY A DECISION OF
THE PRESIDENT OF THE CIVIL AVIATION AUTHORITY
........................................
. ...........................
DATED
NO
THIS GYROCOPTER CAN BE USED IN THE ULTRALIGHT CATEGORY
FOR LEISURE, SPORTS AND DEMONSTRATION PURPOSES, EXCLUDING
AIR TRANSPORT.THIS MANUAL IS NOT A SUBSTITUTE FOR PROPER
THEORETICAL AND PRACTICAL TRAINING BY A QUALIFIED
INSTRUCTOR. THE GYROCOPTER MUST BE OPERATED TO COMPLY
WITH THE RESTRICTIONS AND INFORMATION CONTAINED HEREIN.
THIS MANUAL MUST ALWAYS BE AVAILABLE
ON BOARD THE GYROCOPTER
