RF-TVMUC01_10-0665 QSG _V3_EN_final press.pdf 1 8/4/2010 2:01:50 PM

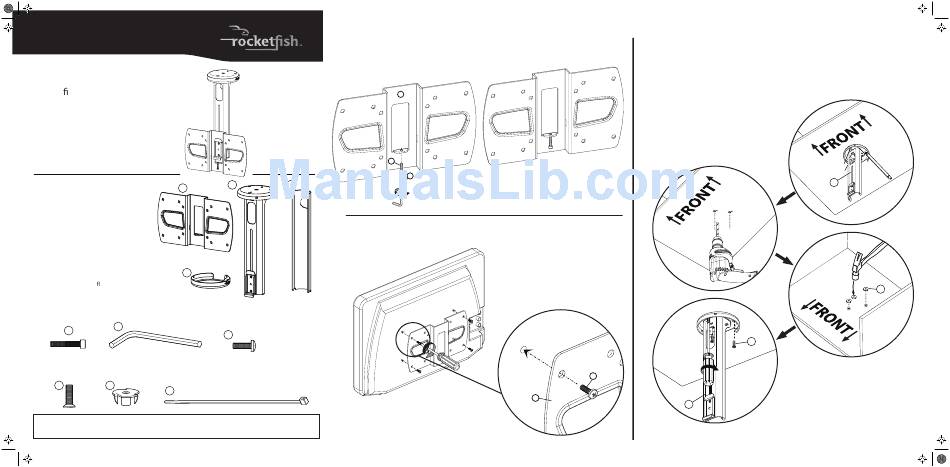

QUICK SETUP GUIDE
RF-TVMUC01
Thank you for choosing the
Rocket sh RF-TVMUC01.

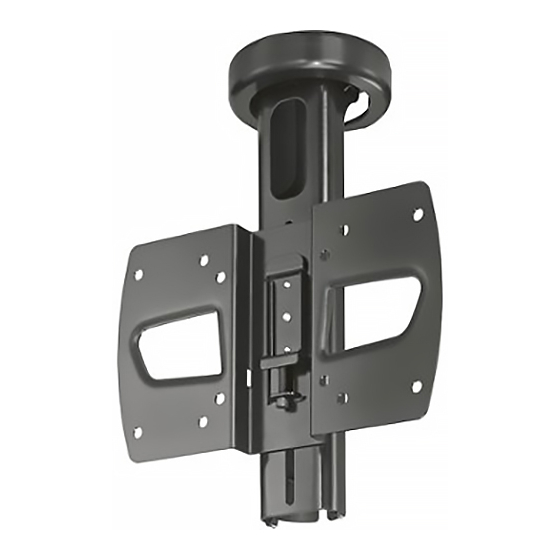

The RF-TVMUC01 TV mount
is designed to support
a TV weighing up to
35 lbs. (15.9 kg).
Package contents
A
A TV bracket (1)
B Under cabinet mount (1)
C Plate cover (1)
D Cable cover (1)
Locking hardware
E TV bracket screw (1)
F 5/32 in. hex key (1)
M4 bag
G M4 x 12 mm screws (4)
Mounting hardware
C
H Cabinet mount screws (3)
10-24 x 5/8 in. phillips at head screws
I
3 prong T-nuts (3)
Wire ties
J 8 in. Black Wire Ties (3)
Locking hardware
F
E
5/32 in.
Wire ties
Mounting hardware
H
I
J
10-24 x 5/8 in.
• Pencil
Tools you will need:
• ¼ in. wood drill bit
• Phillips screwdriver
• Power drill
• Hammer
1: Install the locking screw
Screw the TV bracket locking screw (E)into the TV bracket (A) using the
hex key (F). Do not screw in more than three or four turns.
A
E
B
D
2: Attach the TV bracket
Attach the TV bracket (A) to the back of the TV using the four screws (G).
M4 bag
G
M4 x 12 mm
F
A
3: Install the under cabinet mount
Note: Cabinet thickness must not be less than 7/16 in.
a. Use the ceiling plate of the under cabinet mount (B) as a template to mark the hole locations.
b. Drill holes through the bottom of the cabinet using a 1/4" drill bit.
c. Tap the three 3-prong T-nuts (I) into the holes in the upper surface of the cabinet.
damage cabinet surface.
d. Attach the under cabinet mount (B) to the bottom surface of the cabinet using the
three cabinet mounting screws.
b
d
H
G
B
Be careful not to
a
B
c
I
