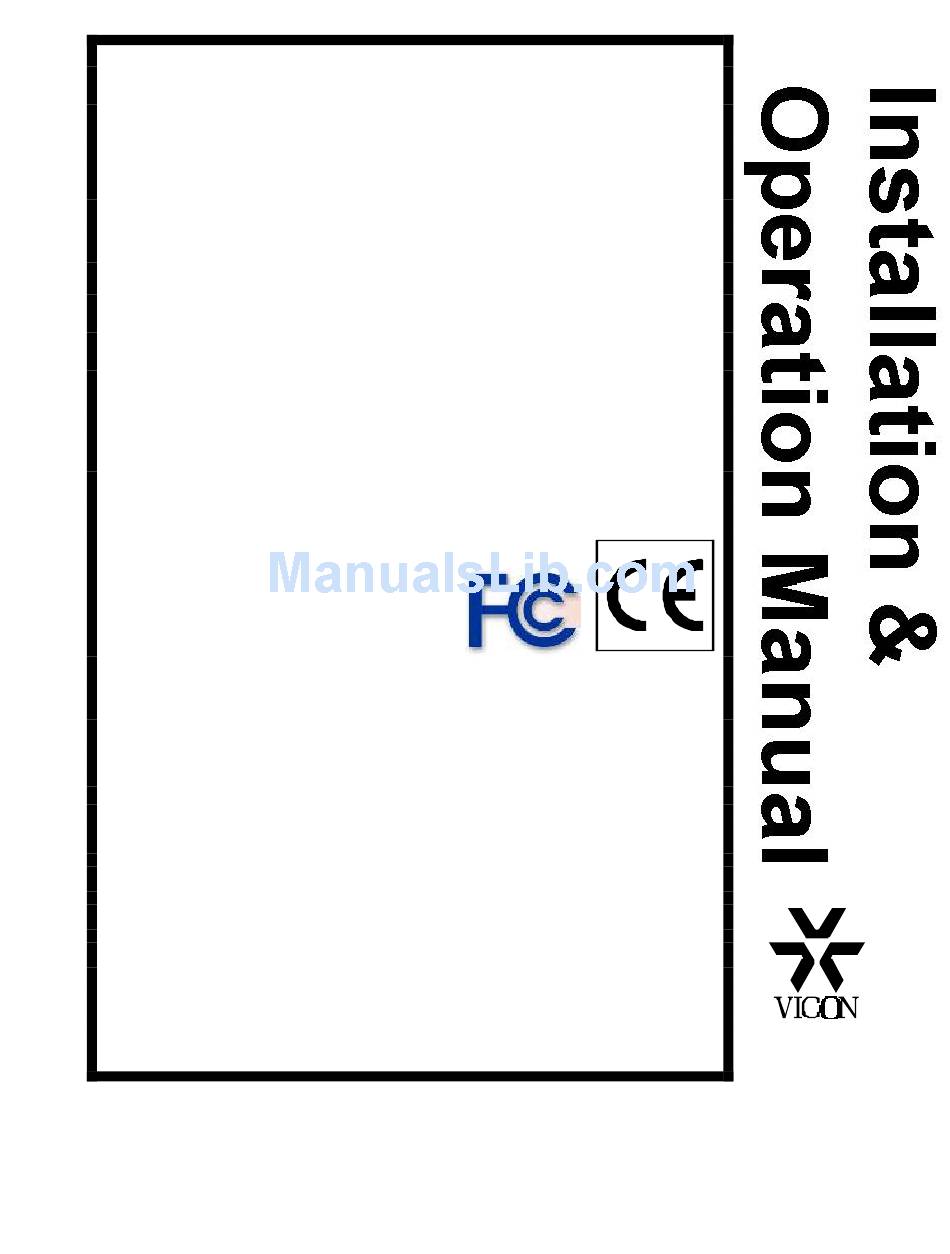

XX096-01
V422-VI RS-422 TO VICOAX
TRANSLATOR
Vicon Industries Inc. does not warrant that the functions contained in this equipment
will meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life -critical situations and must not be used for this purpose.
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8096-01-00
Rev 502 Section 9
Advertisement
Table of Contents
Summary of Contents for Vicon V422-VI
- Page 1 V422-VI RS-422 TO VICOAX TRANSLATOR Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life -critical situations and must not be used for this purpose.
-
Page 3: Table Of Contents
Mounting the Unit ..........................4 Connections............................4 RJ-45 Connections..........................5 BNC Connections ..........................7 Addressing............................7 Operation............................8 Maintenance ............................8 Fuse Replacement..........................8 Shipping Instructions........................9 Reference ............................10 Technical Information ........................12 Contents • • i XX096-01-00 Rev 502 V422-VI RS-422 to Vicoax Translator... - Page 4 Quick Installation ii • • Quick Installation XX096-01-00 Rev 502 V422-VI RS-422 to Vicoax Translator...
-
Page 5: Introduction
Vicoax receivers. Up to 16 V422-VIs are DIP switch addressable and can be cascaded to address up to a maximum of 256 Vicoax receivers/cameras. In the event of a failure in the V422-VI, a fail safe circuit allows the control to communicate to the next RS-422 receiver. -
Page 6: Inspection For Visible Damage
If the equipment must be returned for repair, follow the Shipping Instructions at the end of this manual. Mounting the Unit The V422-VI is a rack mount unit designed to fit into a standard EIA 19-inch (483 mm) rack. Install it according to the instructions accompanying the rack. -
Page 7: Connections
Refer to Figure 2 for connection diagram. The RS-422 OUT connector is used to loop out V422-VI units, up to a total of 16, making it possible to connect to up to 256 receivers. The V422-VI can be installed in either a star or daisy-chain configuration. - Page 8 In a daisy-chain configuration, a number of V422-VI units are connected using the RS-422 IN and OUT RJ-45 connectors. Refer to Figure 4. In this configuration, a failed V422-VI does not break communication with other units in the system, due to its internal fail-safe circuit.
-
Page 9: Bnc Connections
There is a 4-pole DIP switch, labeled ADDRESS, on the rear panel of the unit. Refer to Figure 1.The DIP switch allows the user to select a group of 16 cameras/receivers within the 256 possible addresses to communicate with a particular V422-VI; up to 16 V422-VIs may be addressed in the system. Refer to Table 1 for address settings. -
Page 10: Operation
Fuse Replacement The V422-VI has a fuse located on the rear panel. If it must be changed, be sure to replace it with one with the same rating, 0.25 A, 5 mm, 250 V, slo blo for 120 VAC or 0.125 A, 250 V, slo blo for 230 VAC. -
Page 11: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 12: Reference
400 (120) 530 (160) 820 (250) * Longer cable runs may produce a dim, faint picture. Use a Vicon Video Amplifier to obtain a usable picture for long cable runs. Usable Vicoax Signal vs. Cable Length Maximum Cable Length ft (m) - Page 13 Twisted-Pair Cable Caution: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effective ly for long distances.
-
Page 14: Technical Information
Unit is operated using external control system. Control Format: Converts RS-422 protocol to Vicoax protocol (superimposed digital data on video). Supports simplex or half duplex at 4800 baud rate. 12 • • Technical Information XX096-01-00 Rev 502 V422-VI RS-422 to Vicoax Translator... - Page 15 32 to 104° F (0 to 40° C). Operating Humidity: Up to 90% relative, noncondensing. Storage Temperature Range: -40 to 150° F (-40 to 65° C). Storage Humidity: Up to 90% relative, noncondensing. Technical Information • • 13 XX096-01-00 Rev 502 V422-VI RS-422 to Vicoax Translator...
- Page 16 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) &Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax:+44 (0) 1489 566322 Brussels Office...
