2.4GHz Ergo Laser Mouse
RF-MSE14
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-MSE14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RocketFish RF-MSE14

Summary of Contents for RocketFish RF-MSE14

  • Page 1 2.4GHz Ergo Laser Mouse RF-MSE14 User Guide...

  • Page 2: Table Of Contents

    Bottom ...7 Setting up the mouse ... 8 Installing the battery ...8 Setting up the mouse... 11 Installing the mouse driver and software ... 12 Configuring the Mouse... 18 Uninstalling the mouse driver and software ... 25 Maintaining ...26 Troubleshooting ...27...

  • Page 3: Important Safety Instructions

    Replace only with the same or equivalent type. Introduction Congratulations on your purchase of the 2.4GHz Ergo Laser Mouse. This mouse represents the state of the art in wireless mouse design and is designed for reliable and trouble-free performance.

  • Page 4: Features

    Features • Nano dongle • 2.4 GHz wireless connection • Tilt/scroll wheel • Six mouse buttons • Excellent performance working range of more than 32.8 feet (10 meters) (with no interference) • Four LED indicators Package contents • Mouse • Nano dongle •...

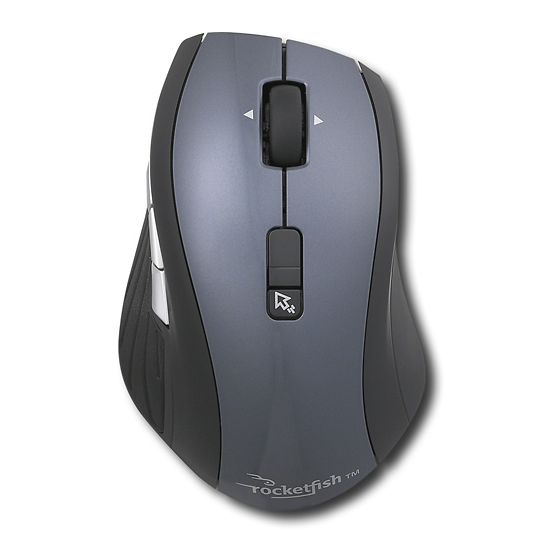

  • Page 5: Top

    Press to go to the previous page in a Web browser. Press to activate dynamic search. You must install the mouse driver to use this feature. Press to go to the next page in a Web browser. Press to perform standard left-mouse actions such as selecting items and opening programs.
  • Page 6 Roll to move the screen image up or down or tilt to move the screen left or right. If you press down on the scroll wheel, a four- way icon appears on the screen. Move the mouse up, down, left, or right to scroll. Press to perform standard right mouse actions such as opening popup menus or viewing help information.

  • Page 7: Bottom

    Battery comparntment Laser sensor Power button Description Provides storage for the battery and dongle. Detects the mouse movements and sends signals to the computer to move the mouse pointer on the screen. Slide to turn the mouse on or off. RF-MSE14...

  • Page 8: Setting Up The Mouse

    Setting up the mouse Installing the battery To install the battery: 1 Press the tab on the battery compartment cover, then lift the cover away from the mouse.
  • Page 9 2 Pull the dongle out of the battery compartment. 3 Insert one AA battery into the battery compartment. Make sure that the + and – symbols on the battery match the + and – symbols in the battery compartment. RF-MSE14...
  • Page 10 4 Replace the battery compartment cover.

  • Page 11: Setting Up The Mouse

    To set up the mouse: 1 Plug the USB dongle into a USB port on the computer. 2 Slide the power button on the bottom of the mouse to the right to turn on the mouse. The computer detects the mouse.

  • Page 12: Installing The Mouse Driver And Software

    Installing the mouse driver and software To use advanced functions, such as dynamic search and magnifier, you need to install the mouse driver and software. Note: The following instructions are based on the Windows® XP operating system. To install the mouse driver and software: 1 Make sure that you have installed the battery, connected the dongle, and turned on the mouse.
  • Page 13 3 Click Install Mouse Driver. The Welcome screen opens. 4 Click Next. The Start Installation screen opens. RF-MSE14...
  • Page 14 5 Click Next. An installation progress bar appears. When the installation is complete, the Setup Complete screen opens. 6 Click Finish.

  • Page 15: Using The Mouse

    Using the mouse To use the mouse: • Press the left or right mouse buttons to perform standard left and right mouse clicks. • Move the scroll wheel to move the screen image up, down, left, or right. Tip: You can also scroll the screen by sliding your mouse instead of using the scroll wheel.
  • Page 16 • Press button B to go to the next page in a Web browser or press button A to go the previous page in a Web browser. B button A button...
  • Page 17 • Press button C to use the dynamic search function. C button Note: To use dynamic search, press the left mouse button and drag the mouse to highlight a word. Press the dynamic search button. The Google™ Web site opens and displays information about the word.

  • Page 18: Configuring The Mouse

    Configuring the Mouse To configure the mouse: • Double-click the mouse icon on the system tray to open the mouse program, then click a tab to adjust a mouse function. If the mouse icon is not in your system tray, click Start, Settings, Control Panel, then click RF 2.4GHz Ergo...

  • Page 19: Configuring Mouse Buttons

    2 Click the Function list arrow to open the list of functions, then click the function you want to assign to the button. The default settings for the mouse buttons are: Button Function...
  • Page 20 3 Click other tabs to make more adjustments, or click OK to save your selections and close the program. Note: To restore default button functions, click Use Default. Adjusting the double-click speed To adjust the double-click speed: 1 To adjust double-click speed, drag the slider. 2 To test the click speed, double-click the Test Area icon.
  • Page 21 Adjusting the orientation Use this tab to adjust the angle at which you use the mouse. To adjust the orientation: 1 Click Set Orientation to activate orientation setup, then use the on-screen pointer to follow the dog as it moves around.
  • Page 22 Adjusting the wheel settings To adjust the wheel settings: 1 To select the wheel scrolling method, click: • Enable Universal Scrolling—Uses common scrolling functions. • Use Microsoft Office 97 Scrolling Emulation Only—Uses Microsoft Office 97 scrolling emulation. 2 To specify scrolling exceptions, click Exceptions. 3 To adjust vertical scrolling speed, click: •...
  • Page 23 1 Click a pointer option. You can select: • Pointer Wrap—The pointer goes to the opposite side of the screen when it reaches the screen edge. • X Focus—Activates a window when the pointer moves over the title bar. RF-MSE14...
  • Page 24 2 Click other tabs to make more adjustments, or click OK to save your selections and close the program. Hiding the system tray’s mouse icon To hide the system tray’s mouse icon: • Uncheck Show mouse icon in systray, then click OK to save changes and close the application.

  • Page 25: Uninstalling The Mouse Driver And Software

    To uninstall the mouse driver and software: 1 Unplug the dongle. 2 Click Start, Programs, RF 2.4GHz Ergo Laser Mouse, then click Uninstall RF 2.4GHz Ergo Laser Mouse Driver. A message asks if you are sure you want to uninstall the driver.

  • Page 26: Maintaining

    4 When the uninstallation is complete, click OK to continue. The Uninstall Complete screen opens. 5 Click Finish. Your computer restarts and the uninstallation is complete. Maintaining To clean the mouse: • Wipe the surface and the optical sensor with a soft, lint-free cloth slightly moistened with water.

  • Page 27: Troubleshooting

    • When the mouse LED lights red, the battery power is low. Replace the battery with a new one. • If the laser mouse fails to work, check the USB port to see if the dongle is correctly connected. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action.

  • Page 28: Specifications

    0.26 × 0.74 × 0.59 inches (6.6 × 18.8 × 15.0 mm) Resolution 800, 1200, 1600 dpi Tracking speed Maximum 30 inch/sec (76.2 cm/sec) Weight Mouse (without battery): 2.82 oz. (80 g) Dongle :0.11 oz. (3 g) Buttons 5 buttons with tilt scroll wheel Compatibility Windows XP Service Pack 3...

  • Page 29: Legal Notices

    This product is made and tested to meet safety standards of the FCC, requirements and compliance with safety performance of the U.S. Department of Health and Human Services, and also with FDA Radiation Performance Standards 21 CFR Subchapter J. RF-MSE14...
  • Page 30 Canada ICES-003 statement This Class B digital apparatus complies with Canadian ICES-003. Important notice FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 31: One-Year Limited Warranty

    Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you. If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges.

  • Page 32: How To Obtain Warranty Service

    How to obtain warranty service? If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
  • Page 33 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2009 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
  • Page 35 RF-MSE14...
  • Page 36 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2009 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. All other products and brand names are trademarks of their respective owners.
