  • Page 1 BAM MD-VS-001-x Base Station/Charger Quick Reference Guide english...
  • Page 2 Windows 7® are registered trademarks of Microsoft Corporation ; QR Code (R) is a registered trademark of Denso Wave Incorporated. Balluff and Balluff Logo are registered trademarks of Balluff GmbH in many countries.It is the user’s responsibility to observe any property rights and provisions.

  • Page 3: Table Of Contents

    Numlock ....................20 Technical Features....................... 21 Regulatory Addendum ....................22 Regulatory Information ................24 WEEE Compliance ..................28 Imager Labeling ..................29 Aiming System ................. 29 Letter of Conformity ................... 33 Ergonomic Recommendations ..................34 Services and Support ....................35 www.balluff.com...

  • Page 4: Using The Bam Md-Vs-001-X Base Station

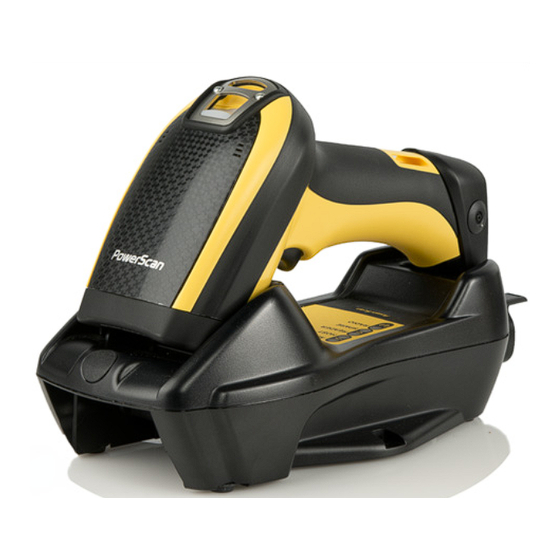

    Using the BAM MD-VS-001-x Base Station Using the BAM MD-VS-001-x Base Station The BAM MD-VS-001-x base station, when paired with one or more Balluff BVS HS-PB series of handheld barcode readers, builds a Cordless Reading System for the collection, decoding and transmission of barcode data. It can be connected to a Host PC via RS-232, USB, and is suited for single-cradle layouts.

  • Page 5: Installation

    (Horizontal) Tabs Ribs Bosses - Desktop mount bracket has ribs to keep the scanner in place when the cradle is hori- zontal - Wall mount bracket contains bosses to keep the scanner in place when the cradle is vertical. www.balluff.com...
  • Page 6 BAM MD-VS-001-x Base Station/Charger Installation Change the Bracket: Remove the screw holding the Bracket in place. Retain the screw for re-use. Carefully lift off the Bracket. Install the other bracket by first slipping the end tab into place on the base station, then easing the tabs (shown in Figure 1 on page 5) into place on the sides.

  • Page 7: Permanent Mounting

    For either desktop or wall mounting, the cradle can be fastened directly to a flat surface using screws (not included). When mounting on drywall, the base should be screwed to a wall stud or supporting beam for additional support. NOTE Figure 3: Base Station Bottom Rubber Feet Protective adhesive strips Mounting Holes www.balluff.com...

  • Page 8: Mounting For Portable Use

    BAM MD-VS-001-x Base Station/Charger Installation 2.1.3 Mounting for Portable Use If portability of the cradle is required, the metal plate must be used. There are two ways this can be done: (1) by first mounting the metal plate on a flat surface so the cradle can be slid off and on, or (2) mounting the metal plate onto the back of the base station and then screw- ing both to the desired surface.
  • Page 9 BAM MD-VS-001-x Base Station/Charger Installation Attaching the Metal Plate to Base Alternatively, the mount can be attached first to the base, then both can be mounted to a wall as described above. Figure 5: Attaching Mounting plate to base www.balluff.com...

  • Page 10: System Connections

    BAM MD-VS-001-x Base Station/Charger Installation 2.1.4 System Connections Connections should always be made with power off! CAUTION The cradle provides a multi-interface connector and a power supply connector as shown: Power Supply Multi-Interface Connector 2.1.5 Connecting and Disconnecting the Interface Cable The can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle.
  • Page 11 The power supply is optional, the cradle can be powered by the USB port. In this case the full charging of an empty battery will take about 10 hours. For intense usage and/or when the system is shut down during the night, the use of an external power supply is recommended. www.balluff.com...

  • Page 12: Cradle Configuration

    Scanning this barcode will RESET all settings for the BVS HS-PW. Any customized settings that may have been applied to the reader will be lost. CAUTION To change the defaults refer to the BVS HS-Px operational manual, which is downloadable from the Balluff website.

  • Page 13: Selecting The Interface Type

    RS-232 RS-232 standard interface Select RS232-STD USB COM to simulate RS-232 standard interface USB-COM-STD USB-OEM (can be used for OPOS/UPOS/JavaPOS) USB-OEM USB Keyboard with standard key encoding Select USB Keyboard www.balluff.com...

  • Page 14: Keyboard Interface

    Base Station/Charger Selecting the Interface Type USB Keyboard with alternate key encoding USB Alternate Keyboard USB Keyboard for Apple computers USB-KBD-APPLE Download the correct USB COM driver from www.balluff.com Keyboard Interface Use the programming barcodes to select options for USB Keyboard.

  • Page 15: Country Mode

    All other interfaces support ONLY the following Country Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain, Sweden. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Supports only the interfaces listed in the Country Mode feature description www.balluff.com...
  • Page 16 BAM MD-VS-001-x Base Station/Charger Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Croatia* Country Mode = Czech Republic* Country Mode = Denmark* Country Mode = France $CKBCO13(CR) Country Mode = French Canadian Country Mode = Germany *Supports only the interfaces listed in the Country Mode feature description...
  • Page 17 Country Mode = Hungary* Country Mode = Italy Country Mode = Japanese 106-key* $CKBCO14(CR) Country Mode = Lithuanian Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* Supports only the interfaces listed in the Country Mode feature description www.balluff.com...
  • Page 18 BAM MD-VS-001-x Base Station/Charger Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Romania* Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* Supports only the interfaces listed in the Country Mode feature description...

  • Page 19: Caps Lock State

    This does not apply when an alternate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable www.balluff.com...

  • Page 20: Numlock

    BAM MD-VS-001-x Base Station/Charger Selecting the Interface Type Numlock This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled...

  • Page 21: Technical Features

    235 x 108 x 80 mm Max number of devices per base station Having a switching regulator inside, the BAM MD-VS-001-x draws the same power, regardless of the supply voltage. i.e. as the input voltage increases the current drawn decreases www.balluff.com...

  • Page 22: Regulatory Addendum

    BAM MD-VS-001-x Base Station/Charger Regulatory Addendum Regulatory Addendum ©2014-2015 Datalogic ADC, Inc.o All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.
  • Page 23 U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners. Patents See www.patents.datalogic.com for patent list. This product is covered by one or more of the following patents: Design patents: USD716818, EP002109371, ZL201330082835.2 Utility patents: EP1873886B1, US7948214, ZL200780030808.2 www.balluff.com...

  • Page 24: Regulatory Information

    BAM MD-VS-001-x Base Station/Charger Regulatory Addendum Regulatory Information All models are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to equipment, not expressly approved by Datalogic could void the user's authority to operate the equipment.
  • Page 25 3. 정 격 : 3.7 Vdc, 2 100 mAh 4. 제조자딩 : Shenzhen Bak Technology Co., Ltd 5. 신고 인 : Shenzhen Bak Technology Co., Ltd 6. 제조국 : 중국 7. 제조년월 : 2014-04 8. 아프터서비스연락처 : 데이터로직에이디씨싱 가포르피티이엘티디 한국사무소 02-3281-9296 www.balluff.com...
  • Page 26 BAM MD-VS-001-x Base Station/Charger Regulatory Addendum Anatel (Brazil conformity) Modelo PBT9500 Base carregadora BC9030-BT, BC9130-BT, BC9180-BT “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção con- tra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.”...
  • Page 27 BAM MD-VS-001-x Base Station/Charger Regulatory Addendum CHINA ROHS TABLE OF RESTRICTED ELEMENTS (BASE) www.balluff.com...

  • Page 28: Weee Compliance

    BAM MD-VS-001-x Base Station/Charger Regulatory Addendum WEEE Compliance Waste Electrical and Electronic Equipment (WEEE) Statement English Our BVS HS-P and BVS HS-Q series handheld readers are only intended for commercial use as B2B devices as per the WEEE Directive. The WEEE Directive, valid across the EU, is a standard defining how waste electrical equipment has to be handled.

  • Page 29: Imager Labeling

    CLASSE 2 PUIS- CIA DE SALIDA: D'USCITA: SLEISTUNG: SANCE DE SORTIE: LONGITUD DE LUNGHEZZA WELLENLÄGE: LONGUEUR ONDA EMITIDA: D'ONDA EMESSA: ENTSPR. EN 60825-1 D'ONDE EMISE: CONFORME A CONFORME A (2007) CONFORME A EN 60825-1 (2007) EN 60825-1 (2007) EN 60825-1 (2007) www.balluff.com...
  • Page 30 BAM MD-VS-001-x Base Station/Charger Regulatory Addendum ENGLISH The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your terminal. STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 and EN 60825-1 at the date of manufacture.
  • Page 31 Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces réfléchissantes (miroirs, par exemple). www.balluff.com...
  • Page 32 BAM MD-VS-001-x Base Station/Charger Regulatory Addendum ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se refieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de seguridad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.

  • Page 33: Letter Of Conformity

    MENDMENT EN 50581, S 2012 : ECHNICAL OCUMENTATION FOR THE SSESSMENT OF EPTEMBER LECTRICAL AND LECTRONIC RODUCTS WITH ESPECT TO THE ESTRICTION OF AZARDOUS UBSTANCES Lippo di Calderara, December 9th, 2014 Ruggero Cacioppo Quality & Reliability Manager - Europe www.balluff.com...

  • Page 34: Ergonomic Recommendations

    BAM MD-VS-001-x Base Station/Charger Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your company’s safety pro- grams to prevent employee injury.

  • Page 35: Services And Support

    BAM MD-VS-001-x Base Station/Charger Services and Support Services and Support Balluff provides several services as well as technical support through its website. Log on to www.Balluff.com, choose your country and then click on the links indicated for further infor- mation. Products Search through the links to arrive at your product page where you can download specific Manuals, Data Sheets, List of Accessories etc.
  • Page 36 World Headquarters Subsidaries Germany Balluff GmbH Balluff Inc. Schurwaldstraße 9 8125 Holton Drive 73765 Neuhausen a.d.F. Florence, Deutschland Kentucky 41042-0937 Tel. +49 7158 173-0 Phone (859) 727-2200, Fax +49 7158 5010 1-800-543-8390 balluff@balluff.de applications@balluff.com www.balluff.com...
