RocketFish RF-BTCMBO2 Quick Setup Manual

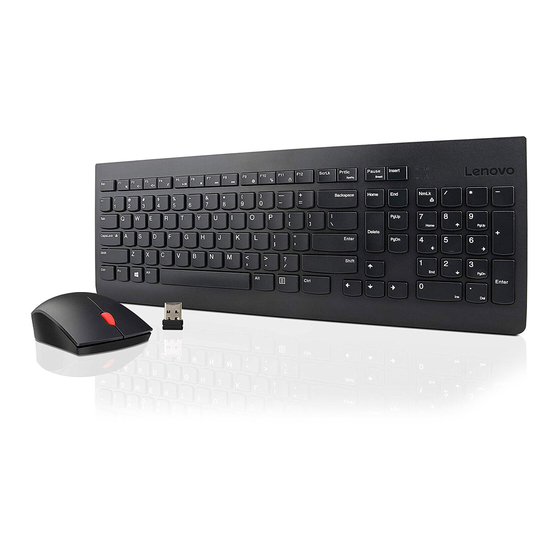

Bluetooth keyboard and mouse combo
Package contents
• Keyboard
• Laser mouse
• USB Bluetooth receiver
• Installation CD including User Guide
• Quick Setup Guide
• AA batteries (4)
Features
Keyboard
• 104-key design
• 18 hotkeys
• Connect button
• Power switch
• LED showing pairing and battery status
• Soft palm rest
Mouse
• Three mouse buttons (left, right, and middle)
• Tilt/scroll wheel
• Two hotkey buttons
• Power saving mode
• Excellent performance
• Working range up to 32.8 feet (10 meters)
• Dual-color status LED indicator
• Connect button
• Power switch
USB Bluetooth receiver
• Bluetooth specifi cation v1.0, v2.0, and v2.1 compliant
• Supports both keyboard and mouse
• Supports additional Bluetooth devices
System requirements
• One available USB port (USB 2.0 or 1.1)
• Operating system: Microsoft® Windows® 7, Windows® Vista,
or Windows® XP with Service Pack 3 or higher
RF-BTCMBO2
RF-BTCMBO2_09-0481_QSG_V1_ENG.in1 1 RF-BTCMBO2_09-0481_QSG_V1_ENG.in1 1
Keyboard top
F1
Esc
F6
~ ! #
^
@ 3
` 1
2 7
Q
Tab U
A
Caps Lock K
Z
Shift
Ctrl Alt
# Description
1 Gadget (Vista, 7) or Calculator (XP)
button
2 Flip 3D (Vista, 7) or application switch
(XP) button
3 Play/Pause button
4 Stop button
5 Previous track button
6 Next track button
7 Volume + button
8 Volume - button
9 Mute button
10 Help button
Keyboard bottom
QUICK SETUP GUIDE
F2 F3 F4 F5 F9 F10 F11 Prt Scr Scroll
F7 F8 F12 Pause
Screen Lock
_
$ % * ( +
Backspace Insert Home Num _
& ) / *
4 5 6 - = Page Up Lock
8 9
W E R T Y { 7 9
Page
I O P Delete Down 8
[ \ End PgUp
H +
S D F G H J
4 5 6
L : " Enter
;
X C V B > ? 1 2 3
Shift
<
N M . /
End PgDn
Enter
.
0
Alt Ctrl
Ins Del
# Description
11 Spelling button
12 Slide show button
13 Status LED
14 E-mail button
15 Sleep button
16 Home button
17 Search button
18 My Favorite button
19 Back web page button
20 Forward web page button
21 Refresh web page button
22 Stop web page button
CONN EC T
OF F ON
# Description
1 Connect button
2 Power switch
Mouse top Mouse bottom
CONNECT
# Description # Description
1 Left button 7 Laser sensor
2 Forward button 8 Connect button
3 Back button 9 Power button
4 Right button 10 Battery compartment
5 Tilt/scroll button
6 LED indicator
Setting up
Installing the batteries
To install the keyboard batteries:
1 Remove the battery cover on the bottom of the keyboard.
2 Install two AA batteries (included). Make sure that the + and – symbols on the batteries match the symbols in
the battery compartment.
3 Replace the battery cover.
OFF ON
