RocketFish RF-TVMLPT03 Quick Setup Manual

QUICK SETUP GUIDE
RF-TVMLPT03
Thank you for choosing the
Rocketfish RF-TVMLPT03.

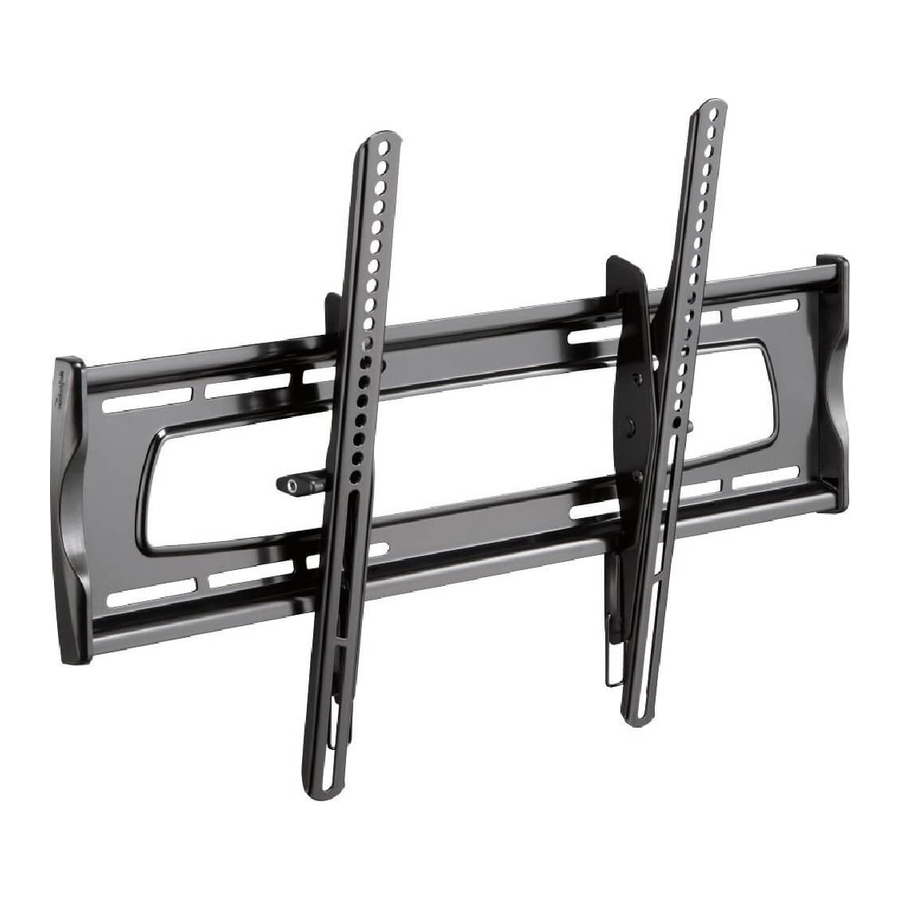

The RF-TVMLPT03 TV mount
is designed to support
a TV weighing up to
130 lbs. (59 kg)
Package contents
A Wall plate (1)
B Left TV bracket (1)
C Right TV bracket (1)
M4 bag
D M4 x 12 mm screws (4)
E M4 x 30 mm screws (4)
A
F M4/M5 washers (8)
G M4/M5 spacers (4)
M5 bag
H M5 x 12 mm screws (4)
I M5 x 30 mm screws (4)
M4 bag
E
D
M6 bag
J M6 x 12 mm screws (4)
K M6 x 20 mm screws (4) M4 x 12mm M4 x 30mm
L M6 x 35 mm screws (4)
M4/M5
M M6/M8 washers (4)
M5 bag
H I
N M6/M8 spacers (4)
M8 bag
M5 x 12mm M5 x 30mm
O M8 x 16 mm screws (4)
P M8 x 40 mm screws (4)
M6 bag
Q M8 x 60 mm screws (4)
J K
Hex key bag
M6 x 12mm M6 x 20mm M6 x 35mm
R 3⁄ 1 6 in. Hex Key (1)
M8 bag
P
Lag bolt bag O
S Concrete anchors (4)
T Lag bolt washers (4)
M8 x 16mm M8 x 40mm
U 5⁄ 1 6 in. x 23⁄ 4 in. lag bolts (4)
Tools you will need:
• Phillips screw driver
• Stud finder
• Hammer (Concrete Only)
• Awl
• ½ in. socket wrench
• Pencil
• 3/16 in. wood drill bit
• Level
• 3/8 in. masonry drill bit (Concrete Only)
• Tape measure
• Power drill
1 Attach the TV brackets
Option 1: Attaching to a at
mounting surface
Attach the left and right TV brackets
(B and C) to the back of the TV using:
The M4/M5 washers (F) and
the M4 x 12 mm (D)
or M5 x 12 mm (H) screws.
Or
The M6/M8 washers (M) and
the M6 x 12 mm (J) screws
or M6 x 20 mm (K) screws
or the M8 x 16 mm (O) screws.
B
C
Option 2: Attaching to a curved or
irregular mounting surface
Attach the left and right TV brackets (B and C) to the
F
G
back of the TV using:
The M4/M5 spacers (G), M4/M5 washers (F), and
the M4 x 30 mm screws (E) or M5 x 30 mm screws (I).
M4/M5
Or
The M6/M8 spacers (N), M6/M8 washers (M),
and the M6 x 35 mm screws (L)
or the M8 x 40 mm (P) or M8 x 60 mm screws(Q).
Note: Use the M4 washers (F) between
N
M
L the spacers and the bracket with the M4
or M5 screws only.
M6/M8
M6/M8
Hex key bag
Q
R
3/16 in.
M8 x 60mm
Lag bolt bag
S
T
U
in. x 2 in.
C
B
or
or F M
B
C
D H
J K
O
C
B
F
or
F
M
E I
L P
Q
G or N
B
C
2 Install the wall plate
Option 1: Installing to a wood stud wall
Caution: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts.
Note: Any material covering the wall must not exceed 5/8 in. (16 mm).
a. Locate the studs. Verify the center of the stud with an awl or thin nail or use an
edge-to-edge stud finder.
b. Level the wall plate (A) and mark hole locations.
c. Drill pilot holes as illustrated.
d. Align the wall plate (A) with the pilot holes, then place the washers (T) over the holes.
Insert the lag bolts (U) through the washers, then tighten the lag bolts with a socket wrench
only until the washers are pulled firmly against the wall plate.
DO NOT over-tighten the lag bolts.
a.
< 16 mm
( 5 ⁄8
b.
A
c.
d.
T
U
in.)
16 - 24 in
.
40 6m m
- 61 0m m
75mm
3 in.
