6. SET-UP

1. Connect either end of the connecting tubing (item# 4) to the top of collection bottle
connector then connect the other end to the bacteria filter.
2. The patient tubing should be connected to collection bottle at the outlet labeled
(patient). Please assure that all connections are secure and without leaks before
using.

7. HOW TO OPERATE YOUR VAC-ASSIST SUCTION UNIT

1. Before use, check the specification label on the side of the suction unit to ensure that
the voltage and current indicated on the unit correspond with the voltage and current
available. Make sure the power switch located on the side of the unit is in the "Off"
position before connecting the unit to a power source.
2. Switch the power switch to "I" position (on), the unit start running.

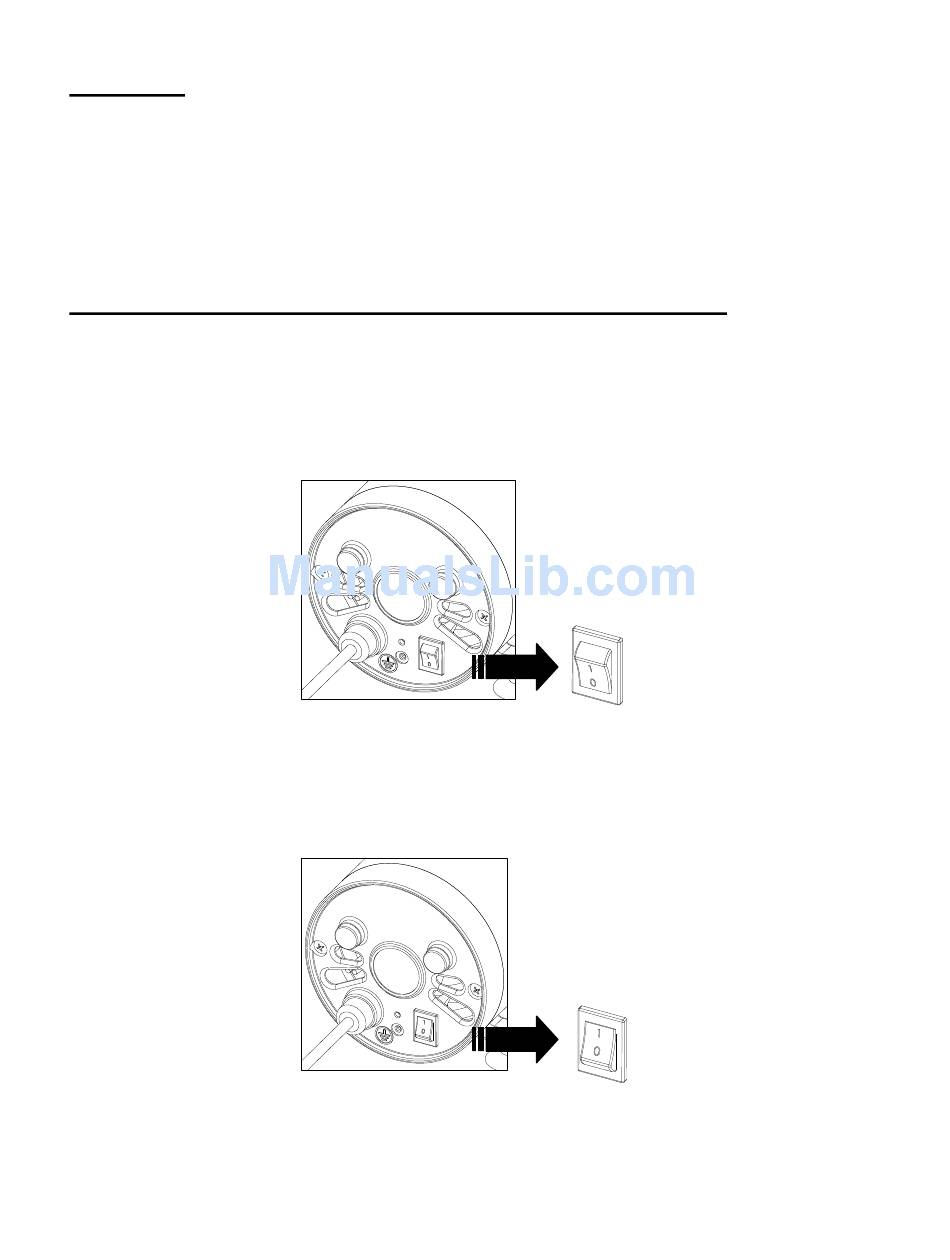

"Off" position
Figure 3
"On" position
Figure 4
