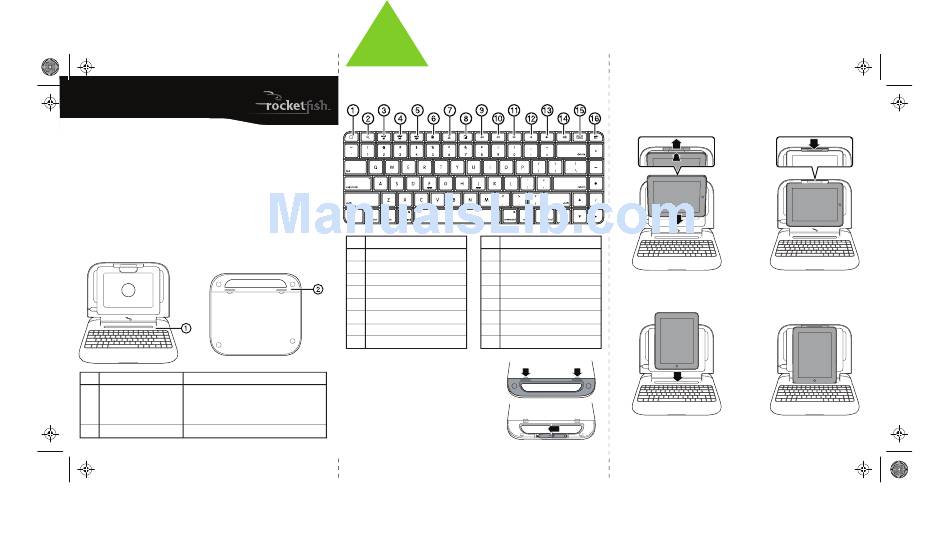

RF-iCAP12 I iCapsule
Quick Setup Guide
Package contents
• Keyboard (1)
• AA batteries (2)
• Quick Setup Guide
Features
• 85-key design
• 16 special keys designed for iPad
• Compact design for mobility and saving space
• Low power consumption
• Dual-color status LED indicator
iCapsule open
iCapsule back
#
Component
Description
1
LED indicator
Green - Lights for three seconds when keyboard is turned on
Green (flashing) - Pairing
Green - Caps lock on
Red (flashing) - Low battery indicator
2
Battery compartment
Install batteries here
V2
FINAL
FOR PRINT
9:52:55 AM
9:52:55 AM
Keyboard
#
Description
1
Home button
2
Search button
3
Select all button
4
Select left button
5
Select right button
6
Copy button
7
Cut button
8
Paste button
Installing the batteries
1 Remove the battery cover on the bottom of the iCapsule
by pressing the release buttons and sliding off the cover.
2 Install the two AA batteries. Make sure that the + and -
ends of the batteries match the markings on the battery
compartment.
3 Replace the battery cover.
Setting up your iCapsule
Landscape mode
1 Align and place the iPad onto the panel while
pressing up the latch.
#
Description
9
Previous track button
10
Play/Pause button
11
Next track button
12
Mute button
Portrait mode
• Align and place the iPad onto the gap.
13
Volume down button
14
Volume up button
15
Virtual keyboard button
16
Connect button
2 Release the latch to lock the iPad in place.
