ASAHI KASEI
AKD5356 is an evaluation board for the portable digital audio 20bit A/D converter with Pre-Amp and
Analog Volume. The AKD5356 includes the analog input circuits (LINE and Pre-Amp) and also has a
digital interface transmitter. Further, the AKD5356 can evaluate direct interface with AKM's D/A converter
evaluation board.
n Ordering Guide
AKD5356
--- Compatible with 2 types of interface
(Cable for connecting with printer port of IBM-AT, compatible PC and control software
are packed with this. This control software does not support Windows NT/2000/XP.)
• Compatible with 2 types of interface
- Direct interface with AKM's D/A converter evaluation boards
- On-board AK4103 as DIT which transmits optical output
• BNC connectors for LINE / MIC inputs
• BNC connectors for Pre-Amp input / output
PREOL/MCL
PREOR/MCR
PREL
PRER
LIN
RIN
PORT2
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM068501>
Evaluation Board Rev.A for AK5356
GENERAL DESCRIPTION
FUNCTION
Gnd
MVDD
JP15
AK5356
uP-I/F

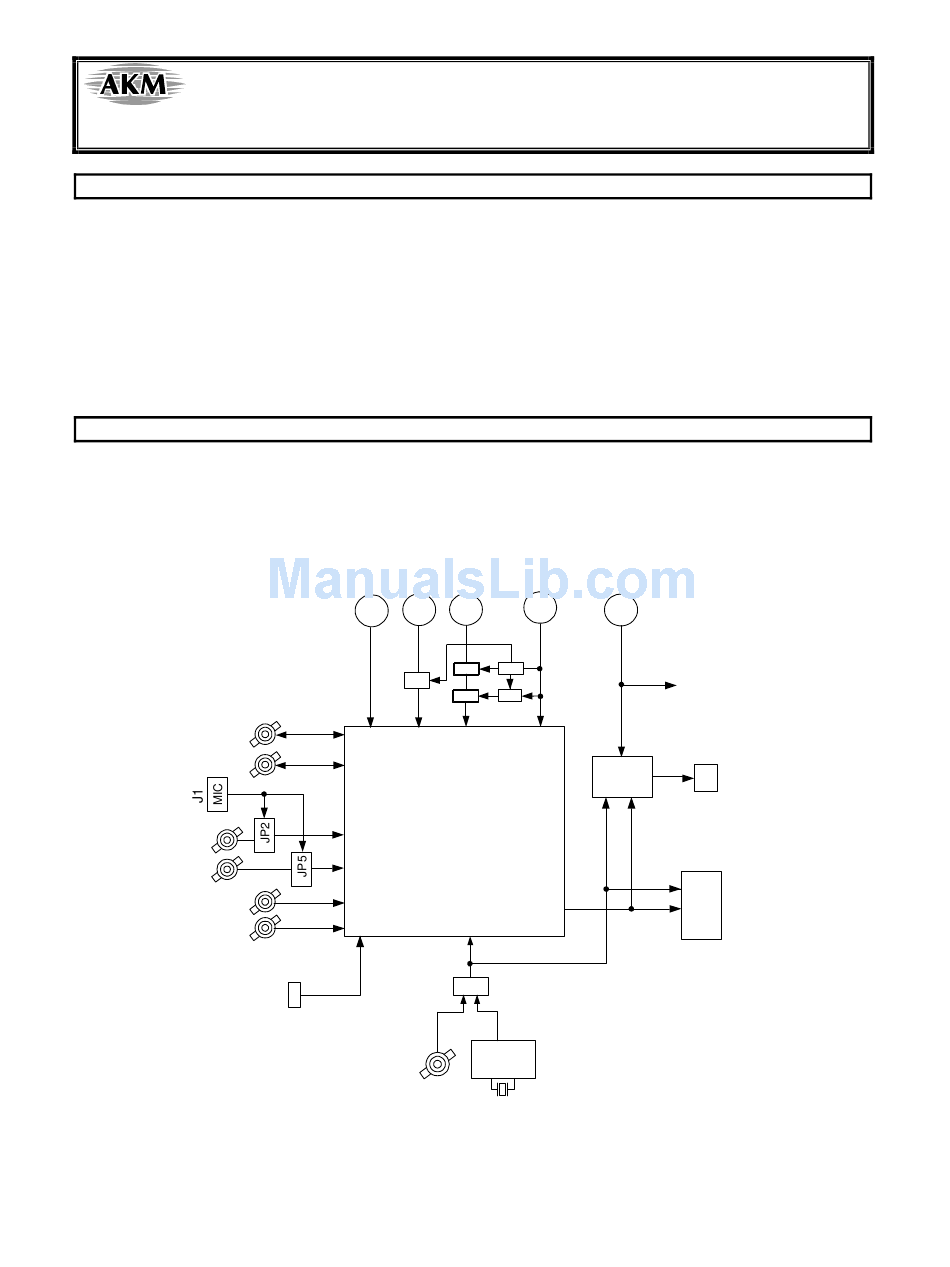

Figure 1. AKD5356 Block Diagram
AVDD
DVDD
VCC
Reg
JP17
.
JP9
JP16
AK4103
(DIT)
JP12
Clock
Generator
- 1 -
[AKD5356]
AKD5356
(Digital logic)
PORT1
Opt Out
PORT3
D/A Data
10pin
Header
2002/10
