Altronix AL175ULX Installation Instructions Manual page 6

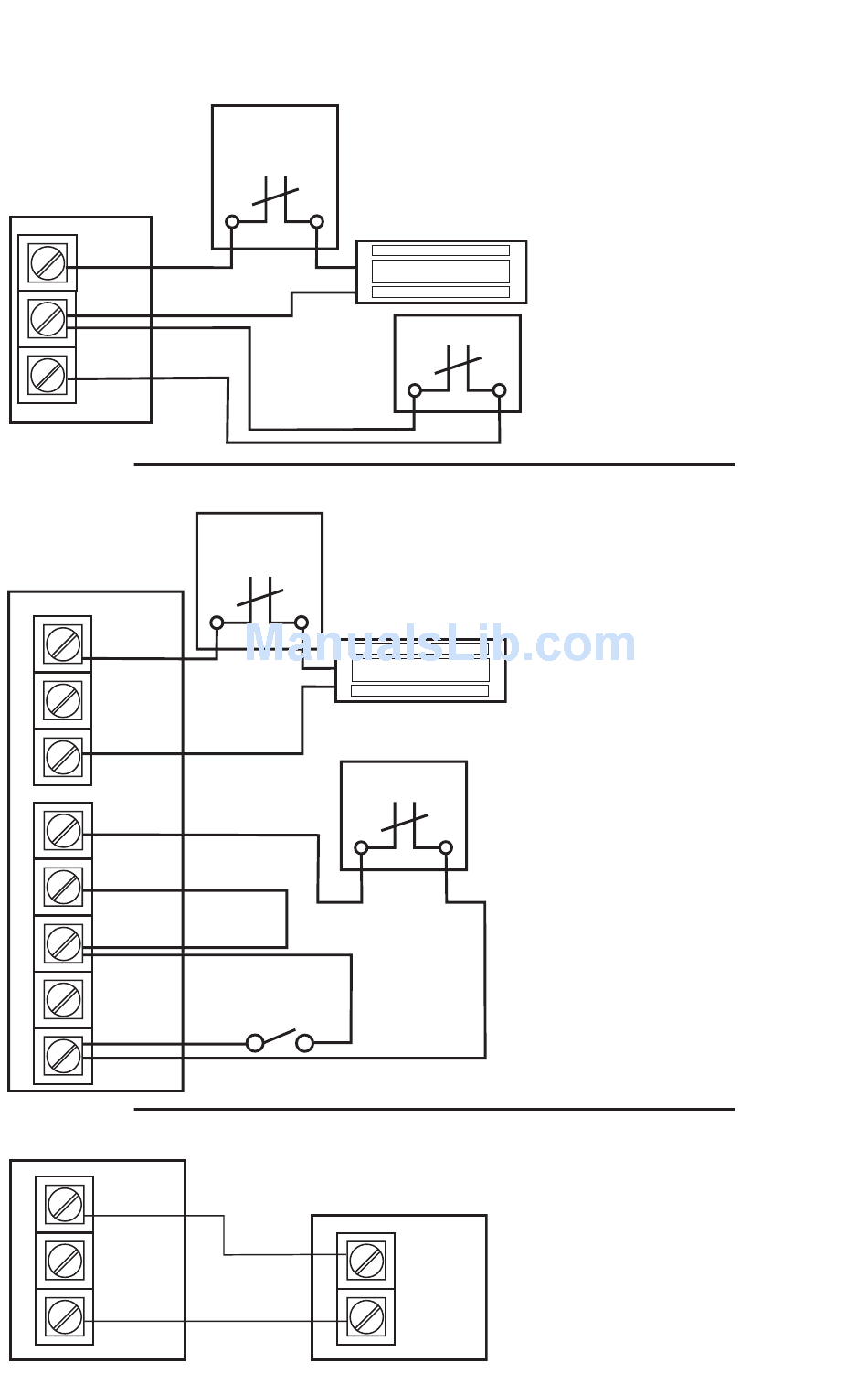

Fig. 4 Typical mag lock with fire alarm tie-in using aux output installation:
AUX +
FACP +
AUX --
Fig. 5 Latching fire alarm tie-in with manual reset:
LOCK +
STRIKE +
COM --
TRG2
TRG1
C
NO
NC
Fig. 6 Multiple AL175ULX power supply connections:
C
NO
NC
- 6 -
Typical Application Diagrams:
ACCESS
CONTROL
DEVICE
ACCESS
CONTROL
DEVICE
MAG LOCK
FACP
NO RESET
SWITCH
MAG LOCK
FACP
TRG1
TRG2
AL175ULX
