Summary of Contents for Niles MSU480
- Page 1 I N S T A L L A T I O N & O P E R A T I O N G U I D E MSU480 MSU480 INFRARED MAIN SYSTEM UNIT ® L E N D I N G...
-
Page 2: Table Of Contents
Power Status 14 MS200, WS100, MVC100R and CS100 IR sensors or the IntelliPad ® Trouble- The model MSU480 is an IR Main System Unit. It is one of Shooting three elements that make up an infrared extender system: Contents •... -
Page 3: Features And Benefits
A I N Y S T E M N I T Features and Benefits The MSU480 offers a number of improvements over other IR Extender Main System Units: • Universal system—compatible with virtually all brands of A/V equipment and remote controls. - Page 4 Niles Stock# FG00665 MSU480 Power, IR data, status signal and ground via category 5 wire Figure 1 Connecting the WS100 to a Niles MSU480 main system unit broadcasting a status feedback signal. WS100 IR Sensor In a typical system, the MSU480 provides...
-

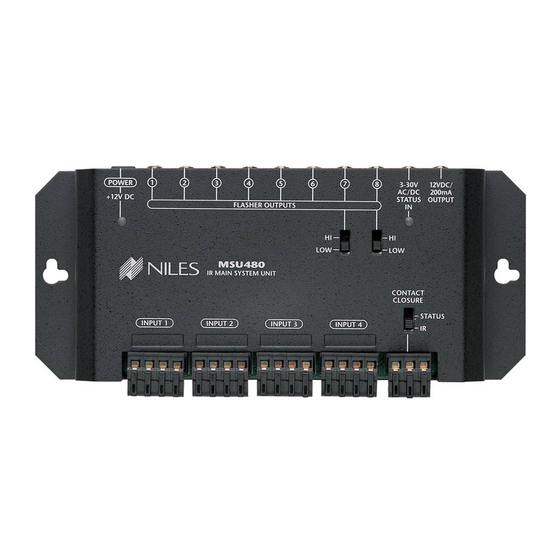

Page 5: Msu480 Parts Guide
4. 12VDC/200mA Output – When 12VDC voltage is open) or NC (normally closed) contact closure detected at the status jack or a discrete IR com- device to the MSU480 mand is issued 12VDC/200mA is output. 9. Sensor Input – Four position quick connect plug for 5. -
Page 6: Installation Considerations
Y S T E M N I T Installation Considerations Placement of the MSU480 Place the MSU480 conveniently close to the equipment it will IMPORTANT be controlling. Generally, the unit is placed in a concealed Do not place the location because its controls and indicators are only used dur- MSU480 on top of ing installation. - Page 7 N I T Wiring “TECH TIP” From every IR Sensor location you must “home-run” a category 5 cable back to the MSU480. Home run means that an individual cable is connected between each IR Sensor and the MSU480 (Figure 4). Remotely Located...
- Page 8 “daisy-chain” using a single cable. A cable is run between the keypad and the sensor and a single cable is run from either the sensor back to the MSU480. To prevent data feedback an IN4003 Blocking Diode is inserted on the data line between the Intellipad and the sensor.
-
Page 9: Installation
(Figure 6) through the use REQUIRED of an IRH610 Infrared Sensor Expansion Hub. Please see your • 1/8" Standard authorized Niles dealer or refer to the IRH610 manual for details. Slotted Screwdriver Installation • Wire Stripper Before you begin, make sure that the sensor/keypad cables, the flasher cables and the 12VDC power supply cable will all reach the proposed location of the MSU480. - Page 10 MSU480 Main System Unit 12VDC Power supply (not supplied) plugged into INPUT 1 INPUT 2 INPUT 3 an unswitched outlet OUTPUT TO MSU Niles stock# XF00060A IRH610 Expansion Hub IRH610 IR EXPANSION HUB POWER STATUS Infrared INPUT 4 INPUT 5...
- Page 11 OK, unplug the connector B) Plug the connector into the socket marked “Power” on the from the power socket MSU480. and proceed. C) If the Power LED does not light, test the unswitched 100-240V AC outlet with another appliance. If the outlet tests OK, you have a defective power supply which must be replaced for you to continue.
- Page 12 Route the connecting wire to the IR Main System Unit. Connect 4. Plug the flashers into the the 3.5mm plug into the jack labeled “Flasher Output” on the flasher outputs. If you need MSU480. to extend the wire, use a 2-conductor 16 gauge WARNING! or larger (See “Tech Tip”...
-
Page 13: Testing The Ir Extender System
3. Maximum Range between the Remote Control and the Niles IR Sensor is similar to the maximum range between the Remote Control and the A/V component’s IR sensor. Typically a remote control with two batteries will have a 15 to 20 foot range and a remote with four batteries will have a 20 to 30 foot range. - Page 14 Examples include: Figure 7 • Dropping a motorized screen • Activating a television lift • Turning on a voltage controlled switching device (e.g.: Niles AC-3 voltage controlled switched outlet). Installation Simply plug a cable with a 3.5mm plug (tip=positive, sleeve=ground) into the jack labeled “12VDC/200mA OUT- PUT”.
-
Page 15: Power Status
IntelliPad. When the MSU480 sees 3-30V AC/DC at the status jack it broadcasts a status signal over the IR sensor wires. Any appro- priate sensor or keypad connected to one of the sensor wires... -
Page 16: Trouble-Shooting
If you must extend the cable from the wall adapter to the MSU480’s status input jack be sure to maintain correct polarity. The tip of the plug should be positive (+) and the sleeve nega- tive (-). Any 16 gauge 2-conductor cable can be used to extend the power status cable up to 200 feet. - Page 17 N F R A R E D A I N Y S T E M N I T Optical or Electromagnetic Interference Direct sunlight, reflections, neon signs and other sources of infrared light or television sets, light dimming controls and other sources of electromagnetic fields can induce noise and interference into your IR extender system.
-
Page 18: Contents
N F R A R E D A I N Y S T E M N I T Specifications Contents IR System MSU480 Compatible with virtually all brands of Contact Closure remotes using carrier frequencies Connector between 26 and 105kHz. Screwless Connectors 4... -
Page 19: Addendum
N F R A R E D A I N Y S T E M N I T Addendum: Using the MSU480 with the IntelliControl ® automation system +12V DC FLASHER OUTPUTS MSU480 IR MAIN SYSTEM UNIT CONTACT STATUS INPUT 1... - Page 20 Niles Audio Corporation www.nilesaudio.com ©2004 Niles Audio Corporation. All rights reserved. Niles, the Niles logo, IntelliPad and Blending High Fidelity and Architecture are registered trademarks of Niles Audio Corporation. MicroFlasher is a trademark of Niles 12331 S.W. 130 Street Audio Corporation. Because we strive to improve our products. All other trademarks are the property of their Miami, Florida, 33186 respective owners.
