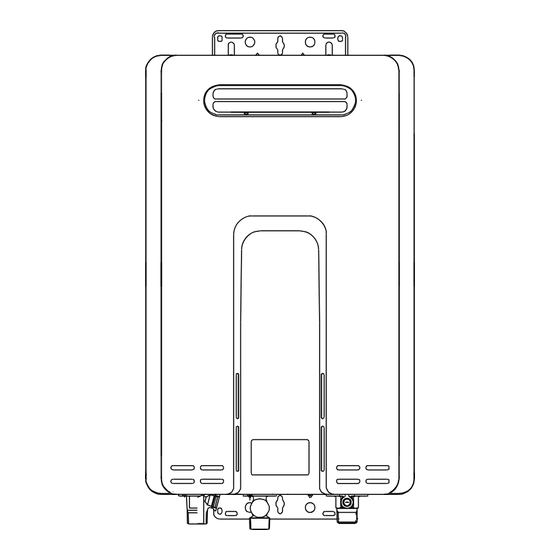

Rinnai REU-VB2528WD-US Specification

Type of Appliance
Rinnai Model Number
Minimum/Maximum Gas Rate (Input)
Electrical
Electrical Consumption
Ignition System
Hot Water Capacity
Temperature
Temperature (without remote)
Installation
Energy Factor
Service Connections
Isolation & Pressure Relief Valves Included
Water Flow Control
Minimum/Maximum Water Supply Pressure
FLOW TABLE
© 2011 Rinnai Corporation
• Temperature controlled, continuous flow, gas hot water system
• Certified for installation in manufactured (mobile) homes
• Forced combustion
• Energy Star qualified
REU-VB2528WD-US
9,900 - 180,000 BTU/h (Natural Gas)
10,300 - 180,000 BTU/h (Propane)
Appliance:
Controller:
Normal: 44 w Standby: 2 w
Direct electronic ignition
Minimum flow rate: 0.26 GPM
Minimum activation flow rate: 0.4 GPM
Maximum flow rate: 7.5 GPM
98° - 120° F (factory default) Maximum temperature is selectable at
120° F or at 140° F; 98° - 160° F available with the MCC-91
controller for commercial and hydronic applications
120° F (factory default) or 140° F
Outdoor only
Natural Gas: 0.82
Gas supply: 3/4 inch MNPT
Hot water outlet: 3/4 inch MNPT
Heavy duty forged brass Webstone Isolator valves EXP E2, certified
to NSF/ANSI 61-8 for potable water
Water flow sensor, electronic water control device and fixed by-pass
20 - 150 PSI (recommended 30-80 PSI for maximum performance)
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
0 25
delta T - Temperature Rise (ºF)
RL75e VB SP
RL75e (VB2528WD-US)
50 75 100
1/2011
AC 120 Volts - 60 Hz
DC 12 Volts
Anti-frost protection: 104 w
Propane: 0.82
Cold water inlet: 3/4 inch MNPT
125 150
