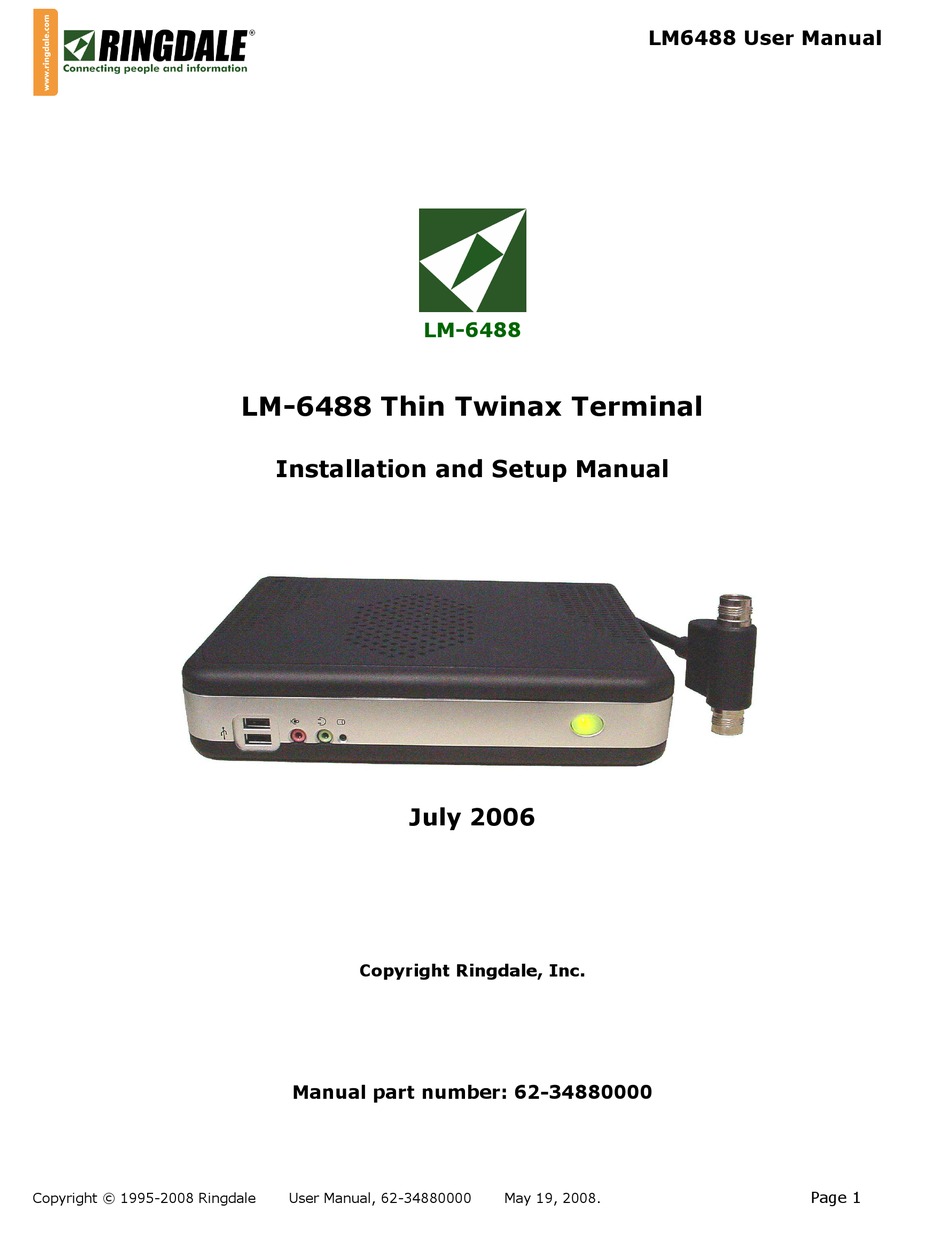

- Page 1 LM6488 User Manual Quick-ID LM-6488 LM-6488 Thin Twinax Terminal Installation and Setup Manual July 2006 Copyright Ringdale, Inc. Manual part number: 62-34880000 Page 1 Copyright © 1995-2008 Ringdale User Manual, 62-34880000 May 19, 2008.
-
Page 2: Table Of Contents
Management Overview ...12 Installing eProManager ...12 eProManager Main Window ...12 Using eProManager...12 Ethernet Configuration Options ...13 Basic Trouble-Shooting: ...14 Technical Support ...14 Copyright © 1995-2008 Ringdale TABLE OF CONTENTS User Manual, 62-34880000 May 19, 2008. LM6488 User Manual Page 2... -
Page 3: Lm-6488 Personalities
Twinax Connector Ethernet Port 1. Connect a Ringdale 122-key keyboard or any PC-style keyboard to the appropriate PS/2 mini- DIN connector on the back of the LM-6488. 2. Connect the supplied black mouse to the appropriate PS/2 mini-DIN connector on the back of the LM-6488. -
Page 4: Quick Configuration: Twinax Display Session
And if the configuration and cabling parameters are acceptable to the IBM host, the host SignOn screen should appear momentarily. Congratulations, the LM-6488 configuration process is that simple! Copyright © 1995-2008 Ringdale Configure ” tab and then click on “Add” at the bottom left- ”... -
Page 5: Detailed Configuration: Twinax Display Session
The Connection Manager has two tabs, “Connections” and “Configure”. You first need to “Configure” the display and / or printer sessions before selecting the “Connections” tab to activate or deactivate sessions. Copyright © 1995-2008 Ringdale Select “Configure”, then “Add” and the New Connection menu will appear. - Page 6 Copyright © 1995-2008 Ringdale The “General” tab is where you select the display language (English is the only selection at present). It is strongly recommended that the selection “Display warning message” is enabled, as this ensures that you are asked to confirm each time you select to disconnect a session.
- Page 7 Copyright © 1995-2008 Ringdale The “Keyboard” tab allows you to review and reconfigure the position of most Host Key functions on your keyboard. A comprehensive list of the various Host Keys is available and you can use the scroll buttons to review the complete list in alphabetical order.
- Page 8 Copyright © 1995-2008 Ringdale The LM-6488 terminal includes both a parallel port and a serial port. The parallel port supports directly-attached printers via a parallel printer cable, see the Printer section for more details. The Serial Input tab is where you enable and...
-
Page 9: Twinax Printer Session Configuration
“Host Character Set” and “Printing Method” (Direct to Printer Port is default). The “General” and “Printer” tabs are self-explanatory so we will move on to the “Options” tab: Copyright © 1995-2008 Ringdale To configure a twinax printer session, follow the... -
Page 10: Configuration Security
1. HP LaserJet 2. Generic Text 3. IBM ProPrinter 4. Epson Please refer to Ringdale Technical Support for more details on Printer Control Strings, or visit www.ringdale.com/support, and then select “Knowledge Base”. User Manual, 62-34880000 May 19, 2008. - Page 11 Control Panel or Connection Manager to add, modify or delete sessions and connections is via this password. Copyright © 1995-2008 Ringdale To password-protect the settings of the LM-6488, from this Security panel enable “Control Panel Password Enable”...
-
Page 12: Management
Programs > eProManager. eProManager Main Window Using eProManager Please reference the file “ManagingyourWBTs.htm” on the eProManager CD for detailed information on how to use eProManager. Copyright © 1995-2008 Ringdale User Manual, 62-34880000 May 19, 2008. LM6488 User Manual Page 12... -
Page 13: Ethernet Configuration Options
LM6488 User Manual Ethernet Configuration Options If you need assistance on configuring the Ethernet capability and functionality of the LM-6488, please contact Ringdale Technical Support. Page 13 Copyright © 1995-2008 Ringdale User Manual, 62-34880000 May 19, 2008. -
Page 14: Basic Trouble-Shooting
“NLynx Twinax Emulation” should be there. You are now good to go again. Technical Support If you need to contact Ringdale Technical Support, please contact us at call 1-888-288-9080. Copyright © 1995-2008 Ringdale... - Page 15 Tel: +44 (0) 1444 871349 Fax: +44 (0) 1444 870228 Ringdale GmbH Fabrikstationsstraße 43 A D-68163 Manheim Germany Freephone: 0800-825-1880 Tel: +49 (0) 621 7186-0 Fax: +49 (0) 621 7186-20 Website: http://www.ringdale.com Page 15 Copyright © 1995-2008 Ringdale User Manual, 62-34880000 May 19, 2008.
