For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-97-400-G-00 rev. C • 04/16

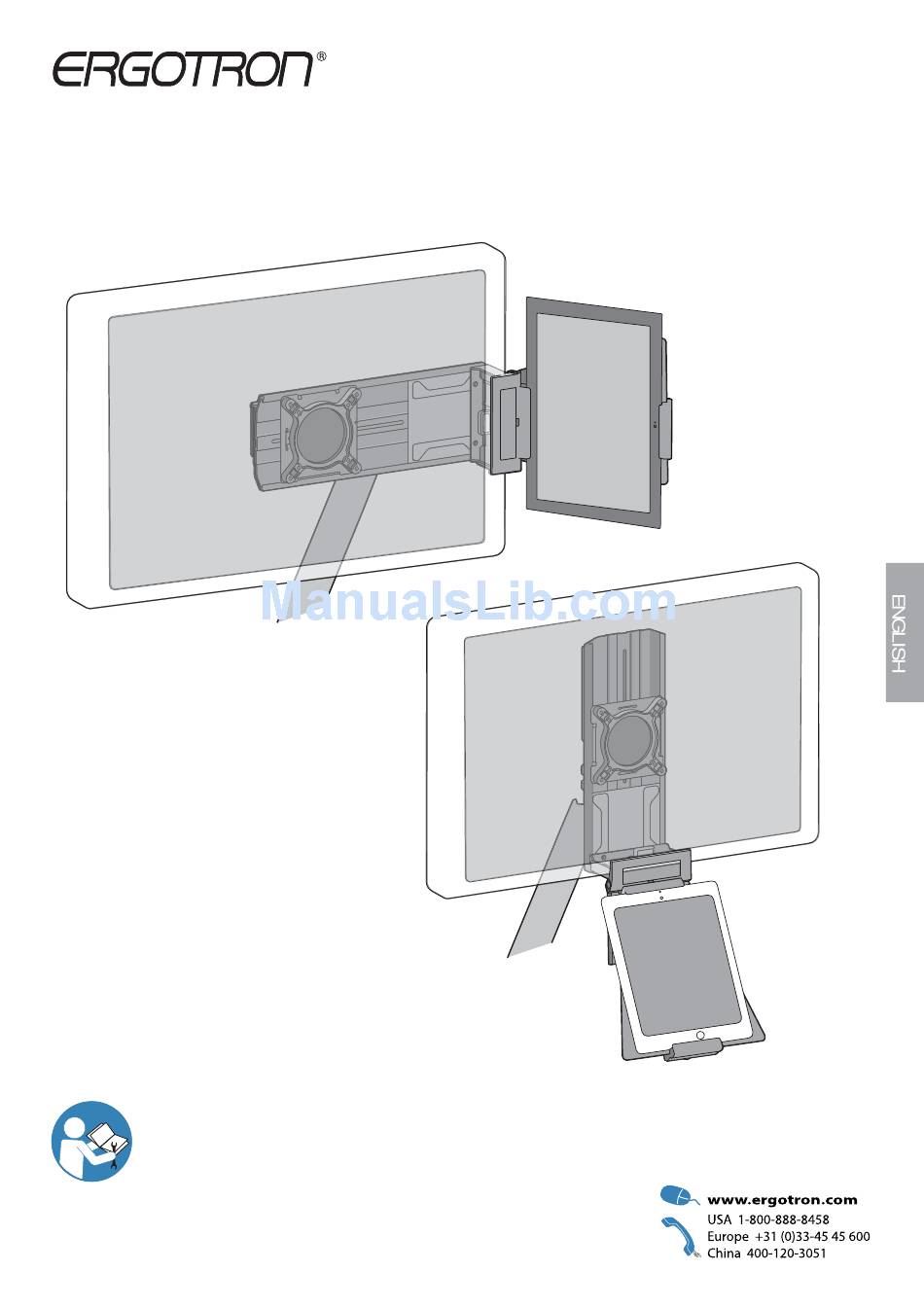

Tandem Tablet Holder
for Microsoft Surface
User's Guide
1 of 16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron 85-046-231
Summary of Contents for Ergotron 85-046-231
- Page 1 User's Guide Tandem Tablet Holder for Microsoft Surface For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano Användarhandbok - svenska...
-
Page 2: Features And Specifications
Features & Specifi cations Range of Motion Weight Capacity Docking Station Dimensions Side View < 3 lbs. (1.3 kg) 4.5" (115mm) CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY 5.5" OR PROPERTY DAMAGE MAY 2" OCCUR! (140mm) (55mm) 60°... - Page 3 Attach mounting brackets to 2.5mm M4 x 10mm back of monitor. Side Mounted Bottom Mounted BEAM DIRECTION MONITOR BRACKET NOTE: Align the arrows on the mounting bracket with the placement of the tablet mount. Optional Extender 2.5mm M4 x 24mm TABLET BEAM DIRECTION MONITOR...
- Page 4 Attach mounting brackets to back of monitor. M4 x 8mm 2.5mm Side Mounted Bottom Mounted 4 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 5 Attach plate to tablet holder. 2.5mm M4 x 8mm Slide tablet holder into mounting bracket. M4 x 8mm 2.5mm Side Mounted Bottom Mounted 5 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 6 Adjust for monitor thickness. 2.5mm 2.5" - 3.18" 3.25" - 4" (64mm - 81mm) (82mm - 101mm) 2" - 2.7" 2.75" - 3.5" (50mm - 69mm) (70mm - 90mm) 6 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 7 Secure monitor tablet holder to monitor. 2.5mm Remove front cover. Tighten screw to clamp to monitor. Attach front cover. Optional: Attach hook if side mounted. M4 x 10mm 7 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 8 Attach to arm. 2.5mm M4 x 8mm Side Mounted Bottom Mounted NOTE: Attach arm on side closest to tablet holder for proper balance. 8 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 9 Side Mounted Bottom Mounted 9 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 10 Attach Surface Dock holder 2.5mm M4 x 8mm Side Mounted Bottom Mounted 10 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 11 Insert tablet. 11 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 12 Optional: Tighten thumb screw to secure tablet. How to remove tablet. 12 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 13 Install Surface Dock 2.5mm 13 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 14 Cable management. 14 of 16 888-97-400-G-00 rev. C • 04/16...
- Page 15 Adjustment Step Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
- Page 16 • 15 to 20 minutes every 2 hours. For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2015 Ergotron, Inc. All rights reserved.
