Your circular saw has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
18 VOLT/24 VOLT MaxSelect

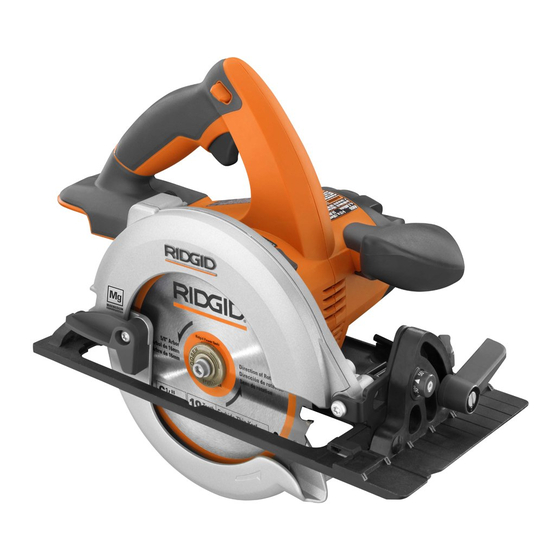

6-1/2 in. CIRCULAR SAW
R885
1
NEW LITHIUM-ION BATTERY PACKS MUST
BE CHARGED BEFORE FIRST USE
BATTERIES AND CHARGERS SOLD
™
SEPARATELY
Advertisement
Table of Contents
Related Manuals for RIDGID MaxSelect R885
Summary of Contents for RIDGID MaxSelect R885
- Page 1 Your circular saw has been engineered and manufactured to our high standards for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ...2 General Safety Rules ... 3-4 Specific Safety Rules ... 4-5 Safety Rules for Charger ...6 Symbols ... 7-8 Features ... 9-10 Assembly ... 10-11 Operation ... 12-22 ... -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 4: Specific Safety Rules
Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. -
Page 5: Specific Safety Rules
When restarting a saw in the workpiece, center the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. -
Page 6: Safety Rules For Charger
CAUTION: To reduce the risk of injury, charge only RIDGID lithium-ion batteries on the RIDGID lithium ion charger and RIDGID nickel-cadmium batteries on RIDGID nickel-cadmium chargers. These batteries and chargers are not interchangeable. Other types of batteries may burst, causing personal injury or damage. -
Page 7: Symbols
SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current Direct Current... -
Page 8: Symbols
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID customer service for assistance. -
Page 9: Features
FEATURES PRODUCT SPECIFICATIONS Blade Diameter ...6-1/2 in. Blade Arbor ... 5/8 in. Cutting Depth at 0º ...2-1/8 in. Cutting Depth at 45º ...1-5/8 in. Charger Input ... 120 V, 60 Hz, AC only ADJUSTMENT LEVER 24V LITHIUM-ION BATTERY PACK No Load Speed ... 3,900 r/min. (RPM) Motor ... -
Page 10: Assembly
BEVEL ADJUSTMENT LEVER The bevel adjustment lever allows you to set the circular saw for bevel cuts from 45° to 90°. DEPTH ADJUSTMENT LEVER The depth adjustment lever adjusts the depth of cut from 0 in. - Page 11 Failure to do so could cause an accident since blade will not tighten properly. Fit the saw blade inside the lower blade guard and onto the spindle. NOTE: The saw teeth point upward at the front of the saw.
-
Page 12: Operation
Charge in a well ventilated area. Do not block charger vents. Keep them clear to allow proper ventilation. NOTE: Charge only RIDGID lithium-ion batteries on the RIDGID lithium-ion charger and RIDGID nickel-cadmium batteries on RIDGID nickel-cadmium chargers. These batteries and chargers are not interchangeable. - Page 13 OPERATION TO CHARGE A fully discharged battery pack with a temperature between 32°F (0°C) and 150°F (65°C) will charge in about an hour. Charge the 24 Volt lithium-ion battery pack only with the charger provided. Connect the charger to a power supply. NOTE: If needed, the charger can operate with most...
- Page 14 • If a different battery charges normally, dispose of the defective pack (see Maintenance section). • If a different battery also indicates “Defective,” the charger may be defective. THE FOLLOWING INSTRUCTIONS ARE FOR RIDGID NICKEL-CADMIUM BATTERY PACKS AND CHARGERS. Battery packs for this tool are shipped in a low charge condition to prevent possible problems.
- Page 15 OPERATION LED FUNCTION OF RIDGID NICKEL-CADMIUM CHARGERS See Figure 7. INDICATOR Power Evaluate Evaluate Evaluate Defective • If defective, try to repeat the conditions a second time by removing and reinstalling the battery pack. If the LED status repeats a second time, try charging a different battery.
- Page 16 Remove the battery pack from the saw. SAW BLADES The best of saw blades will not cut efficiently if they are not kept clean, sharp, and properly set. Using a dull blade will place a heavy load on the saw and increase the danger of kickback.
- Page 17 Use steady, even pressure when making a cut. Never force a cut. Do not cut warped or wet lumber. Hold the saw firmly with both hands and keep your body in a balanced position so as to resist the forces if kickback should occur.
- Page 18 The levers on the saw can be repositioned for the best tightening position. Pull the lever out from the saw and to desired position. Push lever back in and down to lock into place. Check to be sure the base is clamped securely.
- Page 19 OPERATING THE SAW See Figures 17 - 18. It is important to understand the correct method for oper- ating the saw. Refer to the figures in this section to learn the correct and incorrect ways for handling the saw. DANGER:...
- Page 20 Remove the battery pack from the saw. Place the edge guide through the holes in the saw base Adjust the edge guide to the width needed. Tighten the wing screw securely.
-
Page 21: Bevel Cutting
BEVEL CUTTING See Figures 23 - 24. The angle of cut of the saw may be adjusted to any desired setting between zero and 50°. NOTE: When making cuts at 50°, the blade should be set at full depth of cut. - Page 22 0° BEVEL STOP See Figure 25. The saw has a 0° bevel stop that has been factory adjusted to assure 0° angle of the saw blade when making 90° cuts. To check: Remove the battery pack from the saw.
-
Page 23: Maintenance
Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at a RIDGID authorized service center. BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING To preserve natural resources, please recycle or dispose of batteries properly. -
Page 24: Accessories
ACCESSORIES Look for these accessories where you purchased this product: Edge Guide*...Part no. 631697001 * Available through customer service only. Call 1-866-539-1710 to order. WARNING: Current attachments and accessories available for use with this tool are listed above. Do not use any attachments or accessories not recommended by the manufacturer of this tool. -
Page 25: Warranty
2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710. -
Page 26: Customer Service Information
R885 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
