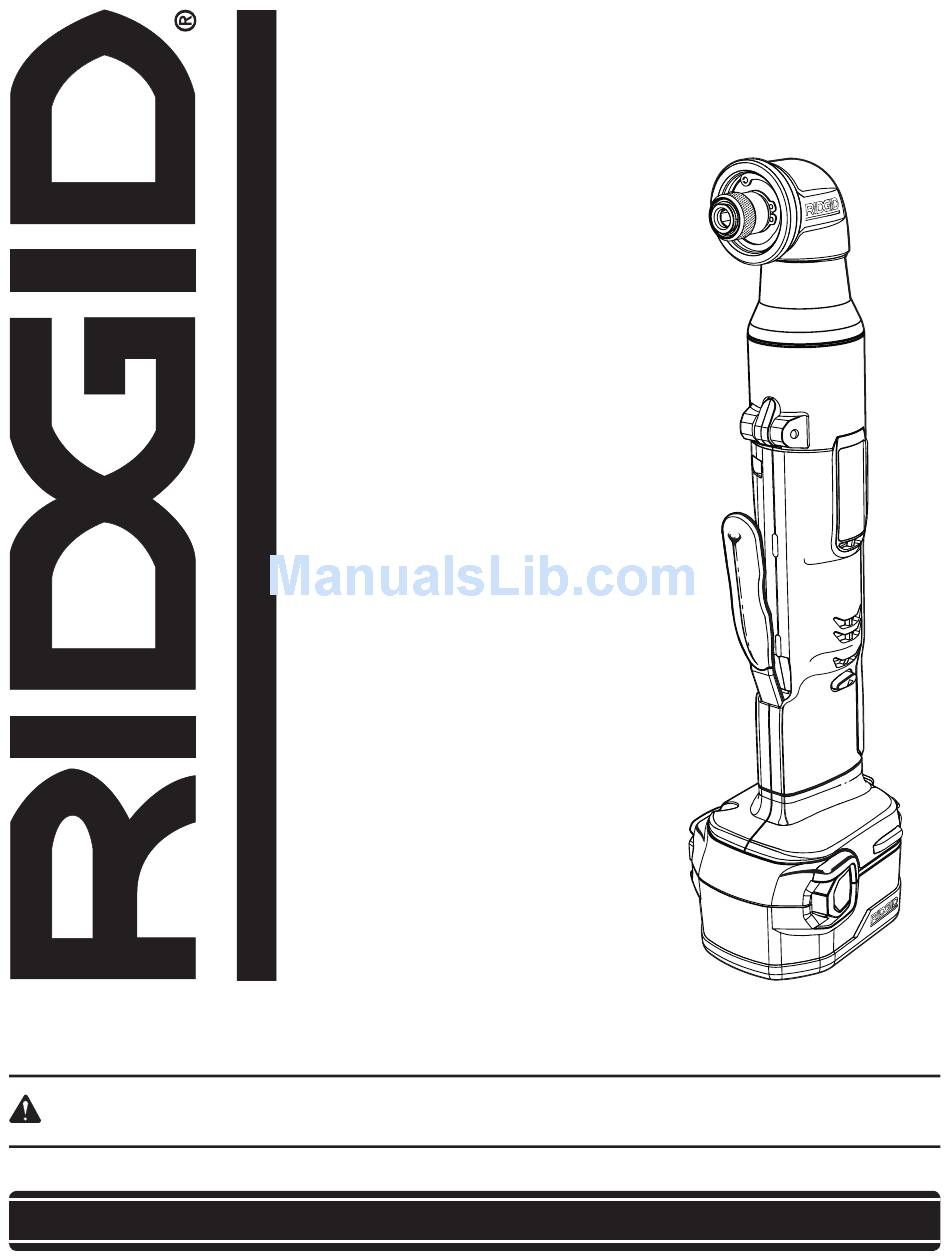

Page 1

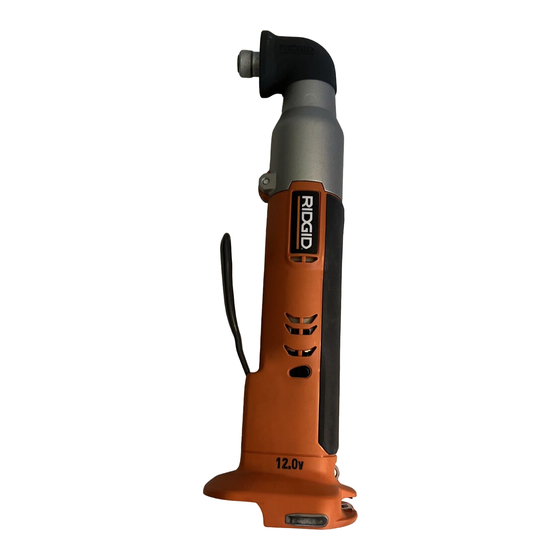

Your impact driver has been engineered and manufactured to our high standards for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the op er a tor’s manual before using this product.
TABLE OF CONTENTS n Introduction ...2 n General Safety Rules ... 3-4 n Specific Safety Rules...4 n Safety Rules for Charger ...5 n Symbols... 6-7 n Features... 8-9 n Assembly ...9 n Operation ... 10-14 n Maintenance ...15 n Warranty ...17 n Customer Service Information...18 INTRODUCTION This tool has many features for making its use more pleasant and enjoyable.
Use battery only with charger listed. MODEL BATTERY PACK R82233 130252002 n Do not abuse the cord. Never use the cord to carry the charger. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately.
Following this rule will reduce the risk of seri- ous personal injury. n Do not use the impact driver as a drill. The impact driver is not designed to be used as a drill. n Do not drive a screw where there may be hidden wiring behind the surface.
SAFETY RULES FOR CHARGER WARNING! READ AND UNDERSTAND ALL IN STRUC TIONS. Fail ure to fol low all instructions listed below, may result in elec tric shock, fire and/or serious per son al injury. n Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery, and product using battery to prevent misuse of the products and possible injury or damage.
SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current...
Page 7
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowl edge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.
FEATURES PRODUCT SPECIFICATIONS Motor ...12 Volt DC Switch... Variable Speed No Load Speed ... 0-2200/min. Blows Per Minute ... 0-3100/BPM Charger Input ... 120 V, 60 Hz, AC only Charge Rate ... 20 minutes Torque... 700 in.lb. COUPLER BIT STORAGE DIRECTION OF ROTATION SELECTOR (FORWARD / REVERSE /...
Right angle design allows you to drive screws in tight places. BIT STORAGE Bit storage is located on the base of the impact driver for safe convenient storage of a bit not in use. ELECTRIC BRAKE The electric brake will stop the bit rotation after the operator releases the paddle switch.
OPERATION WARNING: Do not allow familiarity with your tool to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
Page 11
OPERATION OPERATION OPERATION OPERATION OPERATION LED FUNCTION OF CHARGER See Figure 3. INDICATOR Power Evaluate Evaluate Evaluate Evaluate Charging Full POWER INDICATOR EVALUATE INDICATOR CHARGING INDICATOR FULL INDICATOR BATTERY PACK Without battery pack Hot battery pack Flashing Cold battery pack Flashing Deeply discharged Flashing...
Remove the battery pack from the driver. n Pull the coupler away from the driver. n Remove driver bit from the coupler. CAUTION: The impact driver is not designed to be used as a drill. TO INSTALL BATTERY PACK See Figure 5.
OPERATION TO REMOVE BATTERY PACK See Figure 6. n Locate the latches on the side of the battery pack and depress both sides to release the battery pack from the driver. n Remove the battery pack from the driver. DEPRESS LATCHES TO RELEASE BATTERY PACK PADDLE SWITCH See Figure 7.
Page 14
“live” and shock the operator. RIGHT ANGLE DESIGN See Figures 9 - 10. The impact driver features a right angle head design to reach into tight areas. WARNING Hold tool by insulated gripping surfaces when performing an operation where the screw may contact hidden wiring.
MAINTENANCE WARNING: When servicing use only iden ti cal RIDGID replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust.
2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710.
R82233 Customer Service Information: For parts or service, con tact your near est RIDGID authorized service center. Be sure to pro vide all rel e vant information when you call or vis it. For the lo ca tion of the au tho rized ser vice cen ter nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
