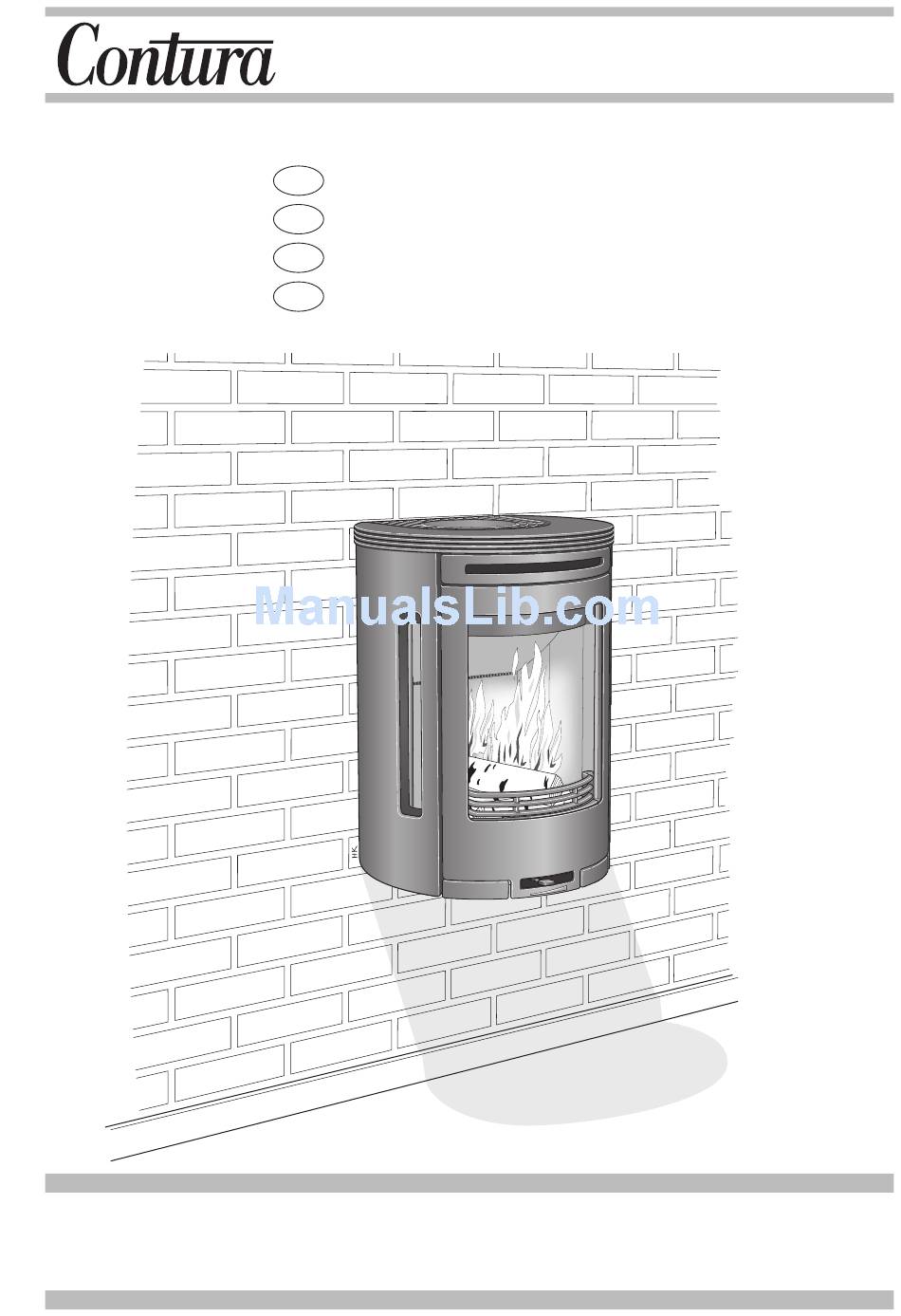

- Page 1 511911 Installation Instructions IAV SE/EX 0740-1 Installationsanvisning Monteringsvejledning Installasjonsanvisning Installation Instructions Contura 580W...
-
Page 2: Table Of Contents
Dear Contura owner We welcome you to the Contura family and hope that you will get a great deal of pleasure from your Contura. We understand that you have high standards of quality and design and as a new owner of a Contura you have secured a product with timeless design and long service life. - Page 3 Pyre lighting can cause quick gas ignition Follow the installation instructions. Use only recomended fuels with the risk of damage to property and NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN personal injury. NOTE! Report installation of a stove to your local CONTURA authority.
-
Page 4: General
Structural design This manual contains instructions about how the The instructions indicate how Nibe recommends the Contura 580W must be constructed and installed. stove is installed. Always check with an authorised To ensure the function and safety of the stove, we... -
Page 5: Installation Distance To Walls And Ceiling
Installation distance from walls and ceiling. Check that the installation distances in the figures that steel flues require. are maintained. When top connecting a steel flue The minimum distance in front of the stove opening to please refer to the relevant manufacturer’s installation combustible parts of the building or interior decora- instructions. -
Page 6: Unpacking
Unpacking Leave the stove body screwed in place on the pallet. Place supplied components to one side. Dismantle all the loose components from the stove body (grate disc, fire-box surround and heat deflector under the stove body). Important! The stove body may tip forwards. Therefore, do not remove the stove body from the pallet until the other loose components have been removed. -
Page 7: Connection To Chimney
Connection to chimney The stove body is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around. Rear connection to a masonry chimney Mark out the centre for making a hole in the wall to the flue. Make a 180 mm diameter hole. -
Page 8: Assembling The Stove
Assembling the stove Ø 8 mm Place the back plate opposite the connector. Check Insert the connection pipe into the wall connector that the back plate is vertical and mark the mount- towards the folded tabs. ing holes you wish to use. Select holes so that it is as far away from any joints as possible. - Page 9 Install the suspension brackets on the stove body using 2 screws. Detach the stove body from the leg by unscrewing Lift the stove body from the leg and suspend the the 4 screws. brackets on the body above the back plate’s upper mounting angle.
- Page 10 Lower the lower edge of the stove body so that the Lock the stove body using 2 screws at the upper stove body is vertical. Insert the stove body towards edge. the back plate so that the stove connector slides into the connection pipe.
- Page 11 Hook the side plate into the back plate and turn the Secure the side panel at the front edge using a front edge in towards the stove body. screw at the upper edge and a screw at the lower edge. Assembling the stove top Place the type plates with production number Lay the soap stone top (or Steel top, cast iron top)
- Page 12 NIBE AB/NIBE Brasvärme • Box 134 • 285 23 Markaryd www.contura.eu...
