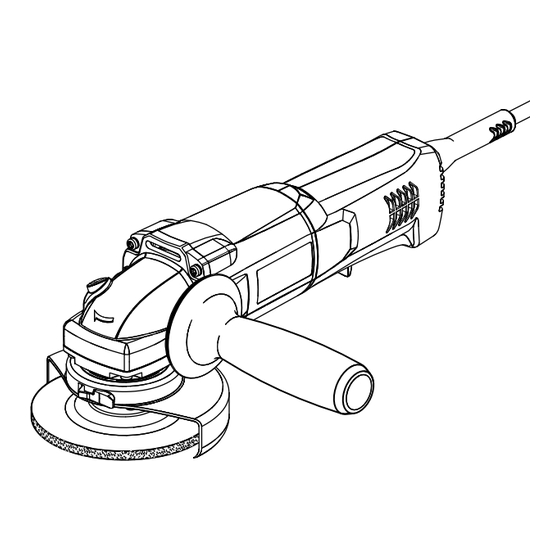

RIDGID R1001 Operator's Manual

4-1/2 in. angle grinder double insulated
Hide thumbs Also See for R1001:
Table of Contents

Advertisement

Quick Links

Download this manual
Your angle grinder has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
4-1/2 in. ANGLE GRINDER
DOUBLE INSULATED
R1001
1

Advertisement

Table of Contents
loading

Related Manuals for RIDGID R1001

Summary of Contents for RIDGID R1001

  • Page 1 Your angle grinder has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS  Introduction ... 2  General Safety Rules ...3-4  Specific Safety Rules ... 4  Symbols ...5-6  Electrical ... 7  Features ...8-9  Assembly ...10-11  Operation ...11-13  Maintenance ... 14  Warranty ... 15 ...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA  Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES SERVICE  Tool service must be performed only by qualified re- pair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. SPECIFIC SAFETY RULES  Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments.

  • Page 5: Symbols

    SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current...

  • Page 6: Symbols

    To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID customer service for assistance.

  • Page 7: Electrical

    ELECTRICAL DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protect- ing insulation. Double insulated tools do not need to be grounded.

  • Page 8: Features

    FEATURES PRODUCT SPECIFICATIONS Grinding Wheel Capacity ...4-1/2 in. Spindle Thread ... 5/8 x 11 UNC No Load Speed ... 10,000/min. WRENCH DISC FLANGE CLAMP SPINDLE LOCK BUTTON GRINDING WHEEL Input ...120 Volts, 60 Hz, AC only, 8 Amps Net Weight ... 5 lbs. TOOLLESS GUARD PADDLE...

  • Page 9: Features

    The lock-on button is convenient for continuous grinding for extended periods of time. SIDE HANDLE The side handle can be installed on either side of the grinder for stabilization and must be used during all operations. In addition to maintaining safe control during use, the side handle also provides convenient ease of operation for the operator.

  • Page 10: Assembly

    Screw the handle into the side of the gear housing.  NOTE: You can install the handle on either the left or right side of the grinder, depending on operator preference. The handle must always be used to prevent loss of control and possible serious injury.

  • Page 11: Operation

    See Figure 3. Thoroughly inspect a new grinding wheel before you install it on the grinder. Tap lightly around the wheel using a wooden hammer. Listen carefully to the resulting sounds. Places with fissures or cracks will result in a different sound. Do not use a wheel containing fissures or cracks.
  • Page 12 This grinder is equipped with a lock-on feature, which is convenient for continuous grinding for extended periods of time. To lock-on:  Hold the grinder in front and away from you, keeping the grinding wheel clear of the workpiece.  Push the lock-off button down and depress the paddle switch.
  • Page 13  Hold the grinder in front and away from you with both hands, keeping the grinding wheel clear of the workpiece.  Turn on the grinder and let the motor and grinding wheel build up to full speed.  Lower the grinder gradually until the grinding wheel con- tacts the workpiece.

  • Page 14: Maintenance

    REPLACING THE GUARD See Figures 9 - 10. After extended use, the guard may wear and need replacing. If you drop the grinder and damage the guard it may also be necessary for you to replace it. To replace the guard: ...

  • Page 15: Warranty

    2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710.

  • Page 16: Customer Service Information

    R1001 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
