Your drill-driver has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE

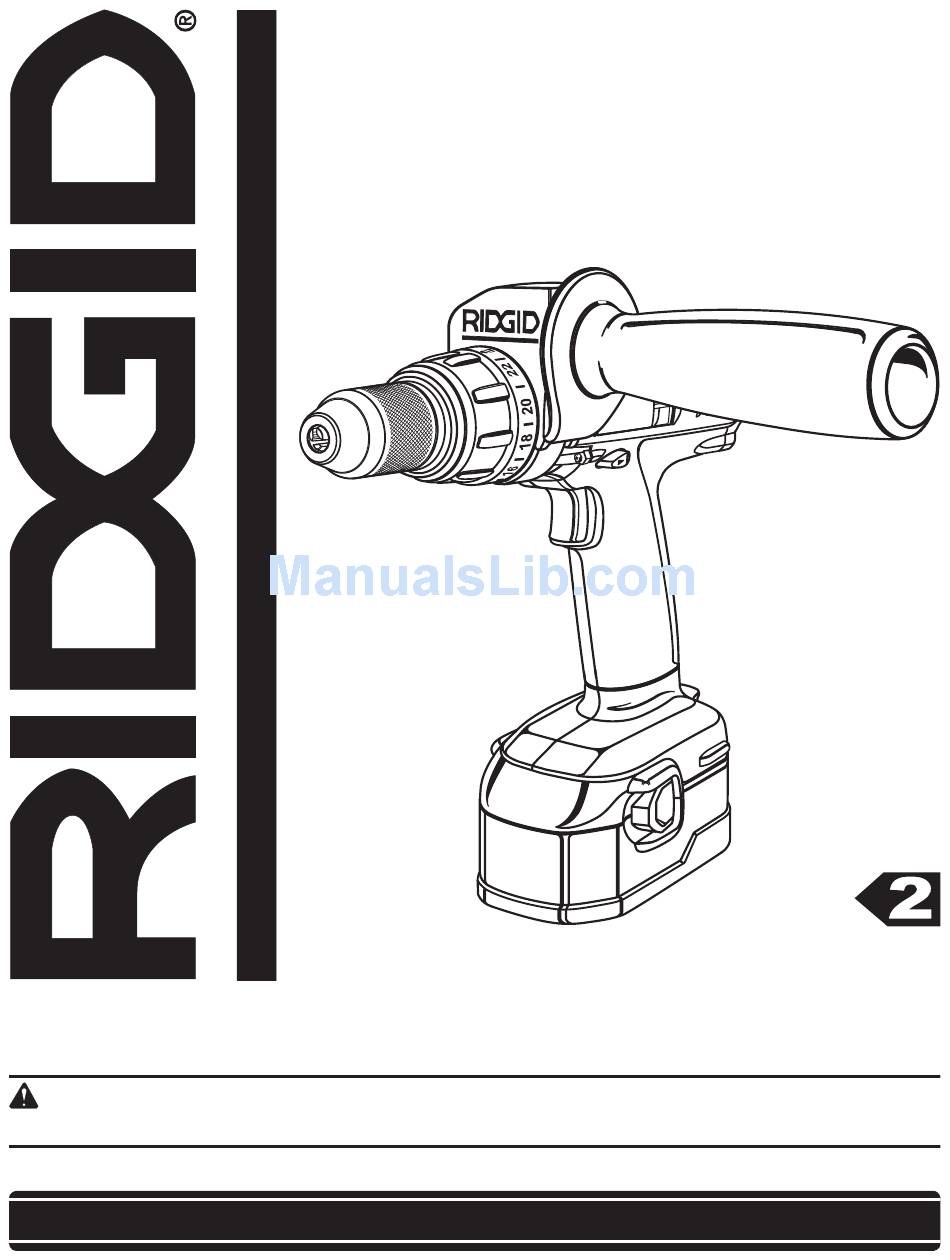

OPERATOR'S MANUAL

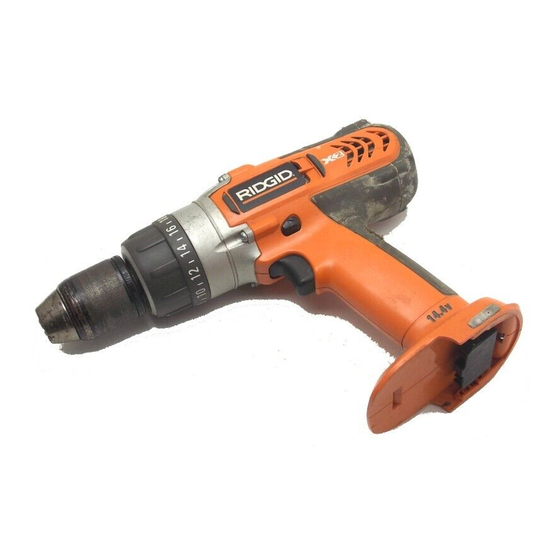

1/2 in., 14.4 VOLT DRILL-DRIVER
VARIABLE SPEED/REVERSIBLE
R830153
1
X
Advertisement
Table of Contents
Related Manuals for RIDGID R830153
Summary of Contents for RIDGID R830153
- Page 1 Your drill-driver has been engineered and manufactured to our high standards for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ...2 General Safety Rules ... 3-4 Specific Safety Rules ...4 Safety Rules for Charger ...5 Symbols ... 6-7 Features ... 8-9 Assembly ...9 Operation ... 10-16 Maintenance ... 17-18 ... -
Page 3: General Safety Rules
Use battery only with charger listed. MODEL BATTERY PACK R830153 130254008 130254002 140276003, or 140276004 Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from heat, oil, sharp edges, or moving parts. -
Page 4: Specific Safety Rules
GENERAL SAFETY RULES SERVICE Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. SPECIFIC SAFETY RULES Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. -
Page 5: Safety Rules For Charger
SAFETY RULES FOR CHARGER WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery, and product using battery to prevent misuse of the products and possible injury or damage. -
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current... -
Page 7: Symbols
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID customer service for assistance. -
Page 8: Features
FEATURES PRODUCT SPECIFICATIONS Chuck ...1/2 in. Keyless Motor ... 14.4 Volt DC Switch ...Variable Speed No Load Speed ... 0-400/0-1,600/min. TORQUE ADJUSTING RING KEYLESS CHUCK Clutch ... 24 Position Torque ... 415 in.lb. Charger Input ... 120 V, 60 Hz, AC only TWO-SPEED GEAR TRAIN SWITCH TRIGGER... -
Page 9: Assembly
Your drill is equipped with an auxiliary handle assembly for ease of operation and to prevent loss of control. BIT STORAGE Bits provided with the drill can be placed in the storage area, located on the base of the drill. CHARGER The charger has a key-hole hanging feature for convenient, space-saving storage. -
Page 10: Operation
OPERATION WARNING: Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. - Page 11 OPERATION LED FUNCTION OF CHARGER See Figure 3. INDICATOR Power Evaluate Evaluate Evaluate Defective • If defective, try to repeat the conditions a second time by removing and reinstalling the battery pack. If the LED status repeats a second time, try charging a different battery. •...
-
Page 12: Variable Speed
TO INSTALL BATTERY PACK See Figure 4. Place the battery pack in the drill, aligning raised rib on battery pack with groove in the tool’s battery port. Make sure the latches on each side of the battery pack snap into place and the battery pack is secured to the drill before beginning operation. - Page 13 The drill has a two-speed gear train designed for drilling or driving at LO (1) or HI (2) speeds. A slide switch is located on top of the drill to select either LO (1) or HI (2) speed. When using drill in the LO (1) speed range, speed will decrease and unit will have more power and torque.
- Page 14 17 - 23 For driving large screws • For heavy drilling BIT STORAGE See Figure 9. When not in use, bits provided with the drill can be placed in the storage area located on the base of the drill. TO DECREASE TORQUE TO INCREASE...
-
Page 15: Removing Bits
Open or close the chuck jaws to a point where the open- ing is slightly larger than the bit size you intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the chuck jaws. - Page 16 Secure the material to be drilled in a vise or with clamps to keep it from turning as the drill bit rotates. Hold the drill firmly and place the bit at the point to be drilled. Depress the switch trigger to start the drill.
-
Page 17: Maintenance
Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at a RIDGID authorized service center. BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING... -
Page 18: Maintenance
Insert a 5/16 in. or larger hex key into the chuck of the drill and tighten the chuck jaws securely. Tap the hex key sharply with a mallet in a clockwise di- rection. This will loosen the screw in the chuck for easy removal. -
Page 19: Warranty
2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710. -
Page 20: Customer Service Information
R830153 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
