This new drill has been engineered and manufactured to our high standards for dependability, ease of operation, and opera-
tor safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL

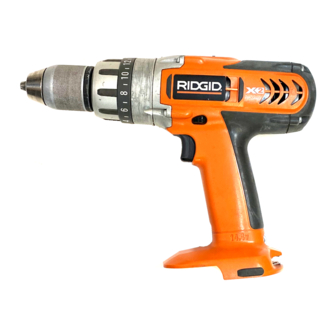

1/2 in. 14.4 VOLT DRILL-DRIVER
R83015
1
X
Advertisement
Table of Contents
Related Manuals for RIDGID R83015
Summary of Contents for RIDGID R83015
- Page 1 This new drill has been engineered and manufactured to our high standards for dependability, ease of operation, and opera- tor safety. When properly cared for, the drill will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction...2 General Safety Rules ... 3-4 Specific Safety Rules ...4 Important Safety Instructions for Charger ...5 Symbols ...6 Specifications ...7 Unpacking...7 Applications ...7 Features ... 8-9 Operation ... 10-16 Maintenance ... 17-18 Warranty...19 Customer Service Information ...20 INTRODUCTION This tool has many features for making its use more pleasant and enjoyable. -
Page 3: General Safety Rules
Use battery only with charger listed. MODEL BATTERY PACK R83015 130254002 n Do not abuse the cord. Never use the cord to carry the charger. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords im- mediately. -
Page 4: Specific Safety Rules
GENERAL SAFETY RULES SERVICE n Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. SPECIFIC SAFETY RULES n Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. -
Page 5: Important Safety Instructions For Charger
IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. n Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery, and product using battery to prevent misuse of the products and possible injury or damage. -
Page 6: Symbols
SYMBOLS Important: Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current... -
Page 7: Specifications
Double-ended Bit Operator’s Manual Case APPLICATIONS You may use the two speed drill for the purposes listed below: n Drilling in wood n Drilling in ceramics, plastics, fiberglass, and laminates n Drilling in both hard and soft metals n Using driving accessories, such as driving screws with screwdriver bits... -
Page 8: Features
The drill-driver has a two-speed gear train designed for drilling or driving at LO (1) or HI (2) speeds. A slide switch is located on top of your drill to select either LO (1) or HI (2) speed. FORWARD/REVERSE SELECTOR... - Page 9 FEATURES AUXILIARY TWO-SPEED HANDLE ASSEMBLY GEAR TRAIN (HI-LO) TORQUE ADJUSTMENT RING KEYLESS CHUCK DIRECTION OF ROTATION SELECTOR (FORWARD/REVERSE/LOCK OFF) STORAGE BATTERY PACK REVERSE FORWARD DUAL PORT CHARGER 4-1/8 in. Fig. 1...
-
Page 10: Operation
IMPORTANT INFORMATION FOR RECHARGING HOT BATTERY PACK When using this drill continuously, the batteries in the bat- The battery pack for this tool tery pack will become hot. will charge more rapidly and efficiently when at a cooled temperature. - Page 11 OPERATION LED FUNCTION OF CHARGER See Figure 3. INDICATOR Power Evaluate Evaluate Evaluate Evaluate Charging Full POWER INDICATOR EVALUATE INDICATOR BATTERY PACK Without battery pack Hot battery pack Flashing Cold battery pack Flashing Deeply discharged Flashing Thermistor shorted Flashing or open Fast charging Slow charging CHARGING...
-
Page 12: Variable Speed
Remove the battery pack from your drill. SWITCH See Figure 6. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. VARIABLE SPEED See Figure 6. - Page 13 LO (1) or HI (2) speeds. A slide switch is located on top of your drill to select either LO (1) or HI (2) speed. When using drill in the LO (1) speed range, speed will decrease and unit will have more power and torque.
-
Page 14: Removing Bits
Open or close chuck jaws to a point where the opening is slightly larger than the bit size you intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the chuck jaws. - Page 15 For heavy drilling. BIT STORAGE See Figure 12. When not in use, the bit provided with this drill can be placed in the storage area located on the rear of the drill. WARNING: Always wear safety goggles or safety glasses with side shields when operating tools.
- Page 16 If not prepared, this loss of control can result in possible serious injury. When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase the drilling action.
-
Page 17: Maintenance
See Figure 4. Insert a 5/16 in. or larger hex key into the chuck of the drill and tighten the chuck jaws securely. Tap the hex key sharply with a mallet in a clockwise direction. See Figure 14. This will loosen the screw in the chuck for easy removal. - Page 18 Length of service from each charging will depend on the type of work you are doing. RIDGID slide batteries have been designed to provide maximum trouble free life. However, like all batteries, they will eventually wear out. Do not disassemble battery pack and attempt to replace the batteries.
-
Page 19: Warranty
2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710. -
Page 20: Customer Service Information
R83015 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
