Bell'O SP-224 Assembly Instructions

Bell'O International Corp.
711 Ginesi Drive
Morganville, NJ 07751-1235
Customer Service: (888) 235-7646
E-mail: support@bello.com
Web: www.bello.com
2
10
9
6
© 2002 Bell'O International, LLC
ell'O International Corp. will not be responsible for failure to assemble as directed or for the improper assembly, use or handling of this stand.

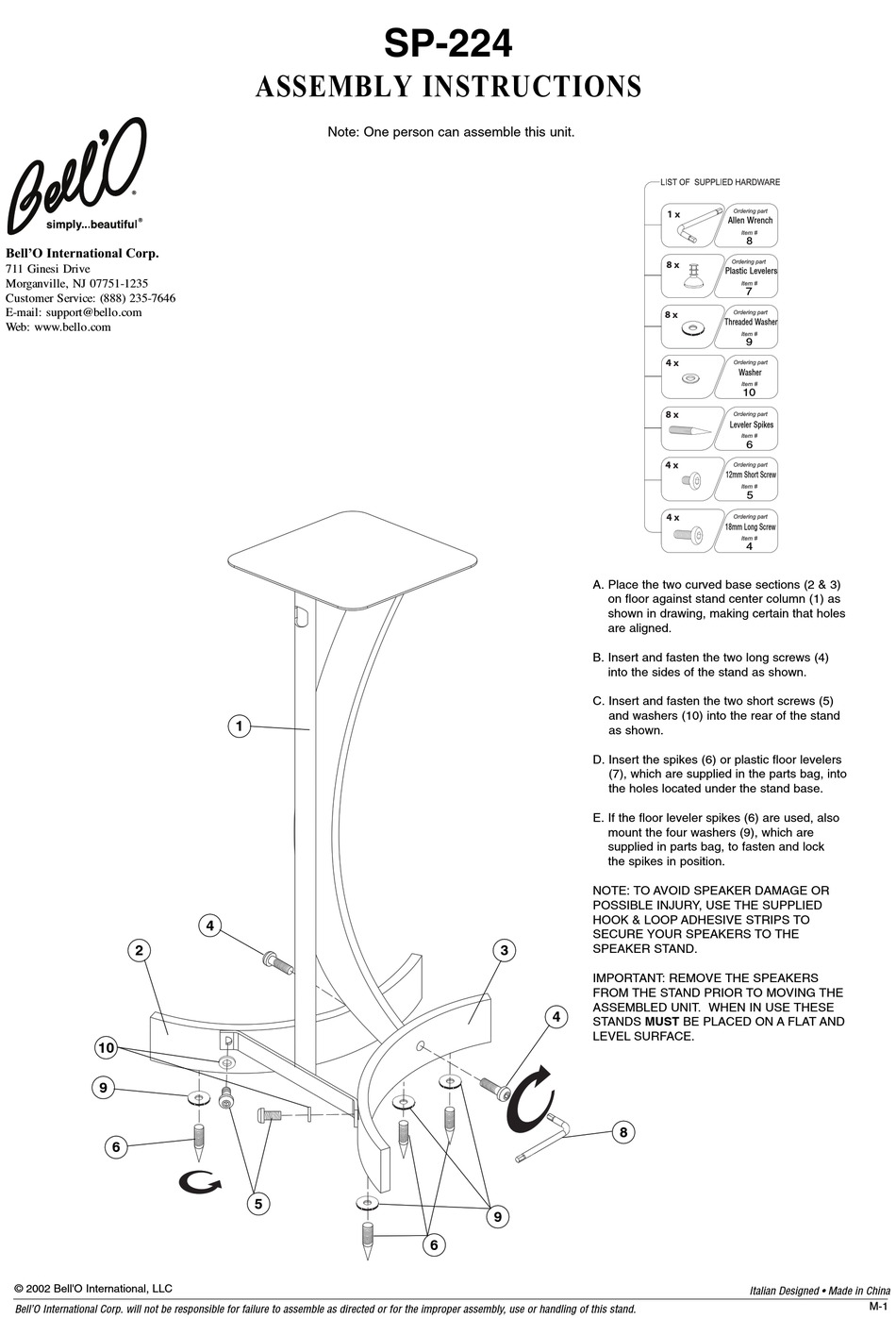

ASSEMBLY INSTRUCTIONS
Note: One person can assemble this unit.
1
4
5
SP-224
3
4
9
6
1 x
llen Wrench
8
8 x
Plastic Levelers
7
8 x
Threaded Washer
9
4 x
Washer
10
8 x
Leveler Spikes
6
4 x
12mm Short Screw
5
4 x
18mm Long Screw
4
A. Place the two curved base sections (2 & 3)
on floor against stand center column (1) as
shown in drawing, making certain that holes
are aligned.
B. Insert and fasten the two long screws (4)
into the sides of the stand as shown.
C. Insert and fasten the two short screws (5)
and washers (10) into the rear of the stand
as shown.
D. Insert the spikes (6) or plastic floor levelers
(7), which are supplied in the parts bag, into
the holes located under the stand base.
E. If the floor leveler spikes (6) are used, also
mount the four washers (9), which are
supplied in parts bag, to fasten and lock
the spikes in position.
NOTE: TO AVOID SPEAKER DAMAGE OR
POSSIBLE INJURY, USE THE SUPPLIED
HOOK & LOOP ADHESIVE STRIPS TO
SECURE YOUR SPEAKERS TO THE
SPEAKER STAND.
IMPORTANT: REMOVE THE SPEAKERS
FROM THE STAND PRIOR TO MOVING THE
ASSEMBLED UNIT. WHEN IN USE THESE
STANDS MUST BE PLACED ON A FLAT AND
LEVEL SURFACE.
