Page 1 Camera Operation Manual To ensure correct use of your camera, read this manual carefully before use. Keep the manual handy for future use.
Page 2 – Reorient the TV or radio antenna. – Plug the devices into separate electrical outlets. • This publication may not be reproduced in whole or part without the express written permission of Ricoh. ©2001 Ricoh Co., Ltd. All rights reserved.
Page 3: How To Use The Operation Manuals
How to Use the Operation Manuals Five operation manuals are supplied with this camera. Use each operation manual as shown below to suit the purpose. Open the package Read This Before Proceeding! These instructions explain the procedure for checking the contents of the package and loading the battery to enable you to use the camera straightaway.
Page 4: Table Of Contents
CONTENTS How to Use the Operation Manuals ... 1 Parts & Names ... 6 Safety Precautions ... 8 Chapter 1 Getting Started Before Using the Camera ... 14 Attaching the Wrist Strap ... 14 Attaching the Lens Cap ... 14 Powering the Camera ...
Page 5 Chapter 3 Shooting Basic Shooting ... 40 Operation Flow ... 40 Selecting a Recording Mode ... 41 Selecting the Storage Memory ... 42 Selecting a Folder ... 43 Selecting an Image Quality Mode ... 44 Checking the Position of the Subject ... 45 Setting the Size of the Subject ...
Page 6 Chapter 4 Playback/Deleting Basic Playback ... 82 Files Playable on the Camera ... 82 Playing a Still Picture, Text or Continuous Shooting File ... 82 Playing a Voice Memo File ... 83 Playing a Motion Picture File ... 84 Playback Using a TV ... 86 Special Playback Functions ...
Page 7 Appendix Troubleshooting ... 128 Error Messages ... 131 Using Your Camera in Other Countries ... 133 Recording Capacities ... 134 Accessories ... 135 Handling Precautions ... 136 Care and Storage ... 137 Specifications ... 138 About the Warranty and Servicing ... 140 Index ...
Page 8: Parts & Names

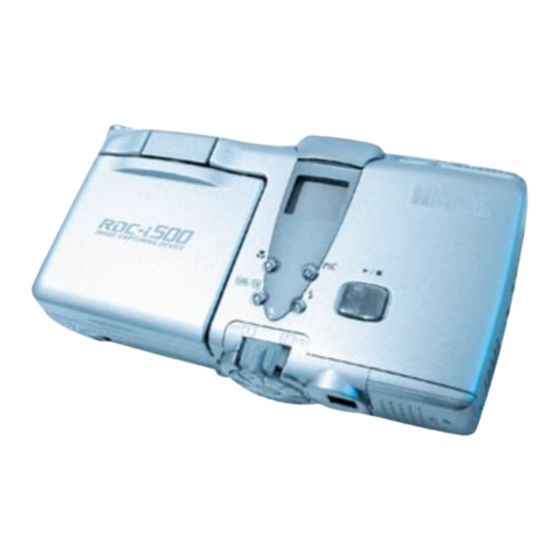

Parts & Names Camera Body Front Shutter Release Button (P.38) LCD Panel (P.26) Lens AF Window Flash Microphone Back Speaker Tripod Screw Hole Strap Eyelet (P.14) Power Supply Terminal (DC Input) (P.18) Terminal Cover AV Output Terminal (P.86) Reset Switch (P.133) (Picture Mode) Button (P.44) Button (P.55)
Page 9 Operating Parts Remote Control Reception LCD Monitor (P.26) CF Card Slot (P.20) EJECT Button Battery/Battery Charger Battery Charger (BJ-1) Rechargeable Battery (DB-20L) Remote Control Unit (optional) DR-4 (available in the near future*) * As of April, 2001 Mode Dial (P.25) Diopter adjuster (P.36) Power Switch (P.24) AC Adapter (optional)
Page 10: Safety Precautions
Safety Precautions Warning Symbols Various symbols are used throughout this operation manual and on the product to prevent physical harm to you or other people and damage to property. The symbols and their meanings are explained below. This symbol indicates matters that may lead to death or serious RWarning injury if ignored or incorrectly handled.
Page 11 RWarning Turn off the power immediately if any metallic object, water, liquid or other foreign object gets into the equipment. Remove the battery as soon as possible, being careful to avoid electric shocks or burns. If you are drawing power from a household electrical outlet, be sure to unplug the power cord from the outlet to avoid fire or electrical hazards.
Page 12 RWarning Observe the following precautions to prevent fire, electric shock or explosion caused by the battery charger. • Do not use a power source voltage other than that • Do not cut, damage, tie in a bundle or alter the power cord. •...
Page 13 RWarning Do not use the equipment near flammable gases, gasoline, benzine, thinner or similar substances to avoid the risk of explosion, fire or burns. Do not use the equipment in aircraft or other locations where usage is restricted or prohibited as this may lead to disasters or accidents.
Page 14 Observe the following precautions to ensure safe use of this equipment. RCaution Safety Warning for Accessories • Safety warnings for the optional accessories such as the remote control unit and AC adapter are contained in the operation manual provided with each product and should be read thoroughly before operating the equipment.
Page 15 Chapter Getting Started Before Using the Camera ... 14 Attaching the Wrist Strap ... 14 Attaching the Lens Cap ... 14 Powering the Camera ... 15 Charging the Battery ... 15 Loading the Battery ... 16 Connecting an AC Adapter ... 18 Storage Memory ...
Page 16: Before Using The Camera
Before Using the Camera Before using the camera, attach the wrist strap, and lens cap. Attaching the Wrist Strap A Pass the small loop of the strap through the strap eyelet and pass the other end through the loop as illustrated.
Page 17: Powering The Camera
Powering the Camera This section explains how to load and recharge the battery and how to power the camera from a household electrical outlet. Charging the Battery When using the battery for the first time or when the battery symbol is displayed, follow the procedure below and charge the battery to its full capacity.
Page 18: Loading The Battery
Loading the Battery Load the rechargeable lithium ion battery (DB-20L) to operate the camera. Important • When using the camera for the first time, be sure to charge the battery. Note (The battery is not charged when the camera leaves the factory.) P.15 “Charging the Battery”...
Page 19: Tips Tips To Extend The Recording And Playback Times
Tips to Extend the Recording and Playback Tips Times • The battery lives indicated on the previous page may decrease depending on the ambient environment. In an extremely cold environment, warming the battery by hand, for example, may allow you to take more pictures. •...
Page 20: Connecting An Ac Adapter
Connecting an AC Adapter When using the camera for extended periods of time to shoot or playback images, or connecting with a PC, connect an AC adapter (optional) to the camera and power the camera from a household electrical source. Using the AC Adapter Before using the AC adapter, be sure to read the safety precautions in the accompanying manual.
Page 21: Storage Memory
Storage Memory Files shot with this camera can be recorded on the following two types of memory: Storage Memory CF card 16 MB, 32 MB, 48 MB, 64 MB, 96 MB, 128 MB, 192 MB (3.3 V) Internal memory Max. 7 MB (available area for recording images) •...
Page 22: Inserting A Memory Card
• Data recorded on a card may be lost by improper handling by the customer or a third party, by being subjected to static electricity or electrical interference, or during camera malfunction or repair. Ricoh Co., Ltd. assumes no liability for damages incurred by such loss of recorded data.
Page 23: Removing Card
Removing Card A Check that the camera is turned off, and extract the EJECT button by pressing it once. • P.24 “Turning On/Off the Camera” B Press the EJECT button again, keeping it straight. C Remove the card by pulling it horizontally out of the slot.
Page 25 Chapter Basic Operations Turning On/Off the Camera ... 24 How to Use the Mode Dial ... 25 LCD Monitor and LCD Panel .. 26 Recording Mode ... 26 Play Mode ... 27 How to Select the Items ... 28 Character Input ... 30 Registering the Camera Information ...
Page 26: Turning On/Off The Camera
Turning On/Off the Camera Use the power button to turn the camera on and off. Turning the Camera ON A Press the power switch. • You can turn the camera on when Note the LCD monitor is opened P.117 “Turning the Camera On When the LCD Monitor is Opened”...
Page 27: How To Use The Mode Dial
How to Use the Mode Dial The camera offers a number of modes for shooting and playback. Use the mode dial to select the mode you need. Mode Dial Mode Setup mode Play mode Still Picture mode Voice Memo mode Text mode Motion Picture mode...
Page 28: Lcd Monitor And Lcd Panel
LCD Monitor and LCD Panel The LCD monitor or LCD panel displays the camera status, such as the battery level, recordable picture count and mode setting, in symbols and figures. Recording Mode LCD panel LCD monitor Remaining picture count Message Storage Memory Flash mode Red-eye reduction...
Page 29: Play Mode
Play Mode LCD panel LCD monitor Storage memory File type Size/No. of pixels Image quality/ Compression rate Battery symbol Protect symbol Voice annotation is displayed in the LCD panel even when the Microdrive has been inserted in the card slot. *2 The battery mark will be displayed when the battery level gets low.
Page 30: How To Select The Items
How to Select the Items You can select items, and confirm or cancel camera settings using the buttons on the operation panel. Switching the Displays Display the MENU screen Press the MENU Press the button. button to move the focus (blue frame enclosing an item) on the lower item.
Page 31 How to Use the Check Box ( ) Use the · · · buttons to set the focus on the desired item and press the FUNCTION button. To cancel the selection, press the button again. How to Use the Spin Box ( Use the ·...
Page 32: Character Input
Character Input You can input characters when adding folders, setting the mail environment, etc. as follows. A Press the button to display the character input screen. B Move the cursor on the desired character by using the buttons and press the FUNCTION button.
Page 33: Registering The Camera Information
Registering the Camera Information This section explains how to register the camera information such as setting the date and time and owner information. Setting the Date and Time Set the date and time on the camera. You can also follow these procedures when you use the camera for the first time or need to change the date and time settings.
Page 34: Setting The Date And Time
Setting the Date and Time Set the date and time. You can set the date in two patterns, HOME and DESTINATION, and switch the pattern when you travel across the time zone. A Select [HOME DATE/TIME] or [DESTINATION DATE/TIME] and press button.
Page 35: How To Verify The Date And Time
B Select [HOME DATE/TIME] or [DESTINATION DATE/TIME] and then press the ENTER button. C Press the ENTER button. The display will return to the Camera Settings menu. Press the CANCEL button to return to the Setup menu. Selecting the Date Format Select the date format.
Page 36: Checking Owner Information
Checking Owner Information You can check owner information, such as your name, telephone number, company name, and the name of the photographer registered on a PC. • Register the owner information from a PC. Note Settings” in the ‘Connecting to a Personal Computer’ operation manual A Set the mode dial to [SET].
Page 37: Before You Start Recording
Before You Start Recording Before you start recording, format the storage media, adjust the viewfinder diopter and check the way to hold the camera. Formatting the Storage Memory This function enables you to format the card and internal memory. Before using a new card or a card that has been used on another device, such as a PC, format the card with the camera first.
Page 38: Adjusting The Viewfinder Diopter
D Press the shutter release button. CF Card The “Formatting ...” message will be displayed. When formatting is completed, the screen will return to the Setup menu. Internal memory (IN) The confirmation message will be displayed. Press the shutter release button again. The “Formatting ...”...
Page 39: Adjusting The Lcd Monitor Brightness
Adjusting the LCD Monitor Brightness If the LCD monitor is hard to see, for example in bright sunlight, adjust the brightness of the monitor. A Press the DISPLAY button approximately 2 seconds. B Adjust the brightness of the LCD monitor using the The adjustment bar will disappear 2 seconds later.
Page 40: Shutter Release Button (P
When viewing using the LCD monitor Hold the camera firmly in both hands, aim it at your subject and look at the LCD monitor. B Press the shutter release button lightly with your fingertip. The shutter release buttons are located on top and front sides of the camera. Use either button depending on the situation.
Page 41: Shooting
Basic Shooting ... 40 Operation Flow ... 40 Selecting a Recording Mode ... 41 Selecting the Storage Memory ... 42 Selecting a Folder ... 43 Selecting an Image Quality Mode ... 44 Checking the Position of the Subject ... 45 Setting the Size of the Subject (Zoom) ...
Page 42: Basic Shooting
Basic Shooting This section explains the general flow of shooting operation and provides basic shooting instructions. Operation Flow To record an image, follow the steps below. Turn on the Camera Turn the camera on. Select a Recording Mode Choose from four recording modes ( shooting, select Select the Storage Memory Choose the recording destination from card (...
Page 43: Selecting A Recording Mode
Selecting a Recording Mode The camera offers four recording modes ( suited to your photographic needs. In this section, (Still Picture) mode is used. A Set the mode dial to [ • P.25 “How to Use the Mode Dial” The recording data will be displayed on the LCD panel or LCD monitor.
Page 44: Selecting The Storage Memory
Selecting the Storage Memory Select the storage memory in which to record the image files. LCD Panel LCD Monitor is displayed in the LCD panel even when the Microdrive has been inserted in the card slot. A Press the storage memory (card or internal memory).
Page 45: Selecting A Folder
Selecting a Folder Select a folder in the storage memory in which to store the image files. A Press the FOLDER button. B Choose the folder in which you wish to save the files and then press the ENTER button. The selected folder will be displayed on the LCD monitor.
Page 46: Selecting An Image Quality Mode
Selecting an Image Quality Mode The camera offers the following image quality modes. Select the mode best suited to your photographic needs. LCD Panel * The recordable picture count varies as you switch the image quality mode. * The factory default setting is * NC (Non-Compressed) mode enables you to record data without compressing it.
Page 47: Checking The Position Of The Subject
Checking the Position of the Subject Check the position of your subject by looking through the viewfinder or at the LCD monitor. Viewing Through the Viewfinder Aim the camera at the subject while looking through the viewfinder. Shooting Scope Frame the subject within the viewfinder. Autofocus Field Located in the center of the viewfinder and roughly corresponding to the area shown on...
Page 48: Setting The Size Of The Subject
Setting the Size of the Subject (Zoom) By pressing the zoom lever, you can vary the size of the subject without changing the distance between yourself and the subject (equivalent to 35 – 105 mm in 35 mm format). A Press the side or the the zoom lever.
Page 49: Shooting
Shooting (Still Picture Mode) This section explains how to shoot pictures in Still Picture mode. Hold the camera correctly to keep it steady. A Aim the camera at your subject. • Use macro mode to shoot subjects Note closer than about 24 cm. “Close-up Shooting (Macro Mode)”...
Page 50 Flash LED When the flash fires, the flash LED (red) lights when the shutter release button is pressed lightly. • During charging, the flash LED will Note blink and the display on the LCD monitor will disappear. Photographs cannot be taken at this time. D Press the shutter release button down fully without removing your finger.
Page 51: Focus Lock Shooting
• The camera will switch off automatically (auto power off) if it is left idle Note (no buttons or switches operated) for a fixed time. When you require more time to compose a shot, disable the auto power off feature. P.110 “Auto Power Off Setting”...
Page 52: Special Shooting Functions
Special Shooting Functions This section explains the various shooting functions that are available. The functions that can be used vary depending on the recording mode. Refer to the table below. Recording Shooting function Folder Continuous Shooting Self-Timer Shooting with Voice Memo P.54 Focus Mode Redeye Reduction Flash Strength...
Page 53: Recording Voice Memo
C Press the shutter release button to record the image. The image will be displayed and recorded. • While the image is displayed on the LCD monitor, recording can be Note canceled by pressing the Mode)” • Images can be recorded with voice memo. Pictures and Text with Voice Memo”...
Page 54: Shooting Motion Pictures
Shooting Motion Pictures (Motion Picture Mode) This mode enables you to shoot motion pictures. The recordable time is indicated according to the available capacity in the recording destination. Sound is incorporated in the recording. Important • The microphone is located at the front of the camera. Note •...
Page 55 B Select [CONT. MODE] and press the button. C Select [ON] and then press the ENTER button. • To cancel continuous shooting, Note select [OFF]. D Press the CANCEL button to exit the menu display. E Press the shutter release button to record the images.
Page 56: Shooting Still Pictures And Text With Voice Memo
Shooting Still Pictures and Text with Voice Memo (Recording with Voice Memo) You can record approximately 10 seconds of voice memo with a still picture or text image. Use this function to add your own comments or explanation. Important • The microphone is located at the front of the camera. Aim the camera Note so that you can record a voice memo for the best result.
Page 57: Changing Flash Modes
Changing Flash Modes There are four flash modes available with this camera. Switch the flash mode to meet your photographic needs. Display Mode Flash Off Auto Forced Flash (lit) Slow Synchro (blinking) * The factory default setting is Effective Range of the Flash When you shoot with the flash activated, the flash has an effective range of about 0.6 –...
Page 58 C Press the shutter release button to take the picture. When the flash fires, the flash LED (red) will light when the shutter release button is pressed halfway. When the flash is being recharged, the flash LED blinks and the display disappears from the LCD monitor.
Page 59 Adjusting the Flash Strength You can adjust the strength of the flash when it fires ( A Set the mode dial to [ press the MENU button. B Select [FLASH STRENGTH] and press button. C Choose the desired strength (STRONG, NORMAL or SOFT) and then press the ENTER button.
Page 60: Setting The Exposure Compensation
Setting the Exposure Compensation As long as the subject is centered in the shooting range, you can take the picture normally as the camera will automatically adjust the exposure compensation for backlighting. If there is a significant difference in brightness between the background and subject, however, the subject tends to be underexposed (dark) or overexposed (white).
Page 61: Changing The White Balance Mode
C Press the shutter release button to take the picture. • Enable the keep settings mode to save the exposure compensation Note setting. P.108 “Keep Settings” • Three frames in succession can be taken, one each at –0.5 EV, 0 and +0.5 EV, based on the preset exposure compensation value.
Page 62 Selecting Auto (AUTO), Daylight ( ), Overcast ( ), Tungsten Light ( ) or Fluorescent Light ( ). A Set the mode dial to [ press the WB button. B Choose the white balance (AUTO, ) and then press the ENTER button.
Page 63 Selecting Manual White Balance ( ) A Set the mode dial to [ then press the WB button. B Select Manual White Balance ( press the ENTER button. C When you have achieved the optimum white balance setting, press the ENTER button. Press the ·...
Page 64: Using The Self-Timer
Using the Self-Timer (Self-timer) The self-timer offers a convenient way to take group pictures with the photographer included. Mount the camera on a tripod or a flat, firm surface to shoot pictures with the self-timer. A Set the mode dial to [ the MENU button.
Page 65: Close-Up Shooting
E Decide the composition of the picture, position the camera securely, and press the shutter release button. The self-timer LED will light and the self-timer will start. The shutter will be released after about 10 seconds. The self-timer LED will start blinking about 2 seconds before the shutter is released and the beep sound will be heard.
Page 66: Shooting By Switching The Focus
B Decide the composition of the picture and press the shutter release button halfway to set the focus. C Press the shutter release button to take the picture. Important • The focusing range is so small in macro mode that the focus can be Note lost if the camera is moved.
Page 67 B Select [FOCUS] and press the button. C Select the focus mode (AF, SNAP or ) and then press the ENTER button. D Press the CANCEL button to exit the menu display. The selected mode will be displayed on the LCD monitor.
Page 68: Shooting In Redeye Reduction Mode
C Select Manual Focus (MF) and then press the ENTER button. D Press the CANCEL button to exit the menu display. MF will be displayed on the LCD monitor. E Press the · focus and press the shutter release button to record the image. To change the size of the subject, press the zoom lever.
Page 69: Shooting With The Date
C Select [ON] and then press the ENTER button. • To cancel the redeye reduction Note mode, select [OFF]. D Press the CANCEL button to exit the menu display. symbol will be displayed on the LCD panel and LCD monitor. E Press the shutter release button to take the picture.
Page 70: Shooting By Splitting The Screen
C Choose the date format (DATE or DATE + TIME) and then press the ENTER button. The format for the date and time (e.g. 2001/ 09/15/10:15) is displayed as shown below. • [DATE] ... 2001/09/15 (yyyy/mm/dd) • [DATE + TIME] ... 2001/09/15 10:15 •...
Page 71 B Select [SPLIT-SCREEN] and press the button. C Select the items to be set and press the ENTER button. Operation varies depending on the items set. • “New Shot Mode” See below • “Additional Shot Mode” Shooting in New Shot Mode A Select [NEW] on the Split-screen menu and press the ENTER button.
Page 72 Additional Shot Mode A Select [ADD] from the menu and press the ENTER button. The recorded images will be displayed as a six-image display. B Select the additional image and press the ENTER button. The framed image is the selected image. •...
Page 73: Shooting In Sharpness Mode
Shooting in Sharpness Mode (Sharpness) This mode enables you to adjust the sharpness of the contours of the subject in three stages (–1, 0 and +1). A Set the mode dial to [ the MENU button. B Select [SHARPNESS] and press the button.
Page 74: Shooting In Monochrome Mode
Shooting in Monochrome Mode (Monochrome) This mode enables you to shoot subjects in black and white or sepia images. A Set the mode dial to [ press the MENU button. B Select [MONOCHROME] and then press the button. C Select the monochrome mode (B&W or SEPIA) and then press the ENTER button.
Page 75: Shooting In Interval (Time-Lapse) Mode
Shooting in Interval (Time-lapse) Mode (Interval) The camera can be set to take pictures automatically at preset intervals. The interval can be set in steps of 30 seconds in the range of 30 seconds to 3 hours. For example, if you set an interval of 1 hour, the shutter will be released every hour, taking pictures continuously until the storage memory in the recording destination runs out of available memory.
Page 76: Shooting In Auto Bracket Mode
E Press the shutter release button. The first photograph will be taken and then additional photographs will be taken at the preset time interval. The “INTERVAL” message will blink during interval (time-lapse) recording. Picture taking will end when the storage memory runs out of memory.
Page 77: Changing The Iso Sensitivity
D Press the CANCEL button to exit the menu display. AB will be displayed on the LCD monitor. E Press the shutter release button to record the image. When the shutter release button is pressed, three frames will be taken in succession at –0.5 EV, 0 and +0.5 EV, based on the preset exposure compensation value.
Page 78: Changing The Exposure Metering System
C Choose the ISO sensitivity [AUTO, ISO 200, ISO 400 or ISO 800] and then press the ENTER button. D Press the CANCEL button to exit the menu display. The selected ISO sensitivity will be displayed on the LCD monitor. E Press the shutter release button to record the image.
Page 79: Shooting In Time Exposure Mode
C Choose the exposure metering system (CTR WGHT, SPOT or MULTI) and then press the ENTER button. D Press the CANCEL button to exit the menu display. E Press the shutter release button to record the image. Shooting in Time Exposure Mode (Time Exposure) Set the time exposure mode to record the bright subjects such as the fireworks and running cars in a dark place.
Page 80: Shooting With Signature
C Select [1 SEC., 2 SEC., 4 SEC., 8 SEC.] and press the ENTER button. • To cancel the time exposue mode, Note select [OFF]. D Press the CANCEL button to exit the menu display. LX will be displayed on the LCD monitor. E Press the shutter release button to record the image.
Page 81 C Select the signature (USER NAME or SIGNATURE) to be added to the image and press the ENTER button. • You can select the signature in Note Setup mode. Signature” • To cancel signature imprint mode, select [NONE]. D Select the location of the signature with ·...
Page 83 Basic Playback ... 82 Files Playable on the Camera ... 82 Playing a Still Picture, Text or Continuous Shooting File ... 82 Playing a Voice Memo File ... 83 Playing a Motion Picture File ... 84 Playback Using a TV ... 86 Special Playback Functions ...
Page 84: Basic Playback
The following image files can be played on this camera. • Files recorded on this camera • Files recorded on the Ricoh RDC-300, RDC-4000 and RDC-5000 series, RDC-7 and RDC-i700. • The “UNMATCHED FILE” message will be displayed if an unplayable Note file is encountered.
Page 85: Playing A Voice Memo File
Still Picture or Text File with Voice Memo To play the voice memo, press the shutter release button. Playback of the voice memo file will end automatically. To pause playback, press the shutter release button. Press the shutter release button again to resume playback. •...
Page 86: Playing A Motion Picture File
B Select the voice memo file with the button and press the shutter release button. The voice memo will be played and the playback indicator and time elapsed will be displayed. Playback of the voice memo file will end automatically. To cancel playback, press the button.
Page 87: Lcd Monitor Display (Play Mode)
B Select the motion picture file with the button, and press the shutter release button. The motion picture will be played and the playback indicator and time elapsed will be displayed. Playback of the motion picture file will end automatically. To cancel playback, press the button.
Page 88: Playback Using A Tv
Playback Using a TV Connect the camera to a TV set with the video interface cable supplied to play recorded image files on the TV screen. • Refer to the instruction manual for the equipment to which the camera is connected. Audio input (white)
Page 89: Special Playback Functions
Special Playback Functions This section explains the various playback functions. Displaying Several Files at Once (Thumbnail Playback) Nine files are displayed at once, enabling speedy search for the image you wish to see. A Set the mode dial to [ side of the zoom lever.
Page 90: Magnifying A File
Magnifying a File (Zoom Playback) You can magnify a file lengthwise and widthwise to check for blurring when taking the picture, etc. The file can be displayed at the following magnification rates depending on the image size. • : 1.28 times, 1.6 times, 3.2 times •...
Page 91 Copying a Selected File A Set the mode dial to [ B Display the file to be copied and press the FUNCTION button. To select more than one file, repeat step B. Thumbnail Display Set the focus on the file to be copied and press the FUNCTION button.
Page 92 G Select [COPY TO] and press the button. H Choose the destination folder and then press the ENTER button. I Press the ENTER button. Copying starts, and when finished, the display will return to the playback menu. J Press the CANCEL button to exit the menu display.
Page 93 C Select [SUBJECT] and press the button. D Select [ALL FILES] and press the ENTER button. The entire files in a folder currently displayed will be the subject to be copied. E Select [COPY TO] and press the button. F Choose the destination folder and press the ENTER button.
Page 94: Protecting A File
Protecting a File (Protect) You can protect important files from being erased accidentally. Important • Protected files will be deleted when the storage memory is formatted. Note Protecting File A Set the mode dial to [ B Select the file to be protected. To protect a single file Display the file to be protected using the ·...
Page 95: Protecting All Files
E Select the option (SELECTED FILES, SELECT ONE FILE, CANCEL ALL) SELECTED FILES The selected file will be protected and the display will return to the playback screen. The protected file is indicated by a symbol. SELECT ONE FILE Press the ENTER button on the confirmation screen.
Page 96 D Press the ENTER button. The all files in the folder will be protected and the display will return to the playback screen. Protected files are indicated by a Canceling the Protect Setting A Set the mode dial to [ the MENU button.
Page 97: Playing Back Images Automatically
SELECT ONE FILE Press the ENTER button on the confirmation screen. The file will be unprotected and the display will return to the playback screen. Playing Back Images Automatically (Auto Playback) This function automatically plays all the files stored in the storage memory. A Set the mode dial to [ the MENU button.
Page 98: Setting The Digital Printing Service
(DPOF*). After making the settings, the prints can be made according to the preset information at the digital camera printing service. * DPOF stands for Digital Print Order Format.
Page 99 Specifying the Number of Prints of the Selected Files A Set the mode dial to [ B Select the file for which you wish to specify the number of prints. To specify each file Display the file using the To specify more than one file Display the file using the press the FUNCTION button.
Page 100 F Select the print setting (SELECTED IMAGES / ONE IMAGE ) and then press the button. G Specify the number of prints using · buttons and press the ENTER button. H Press the CANCEL button to exit the DPOF setting menu. Press the CANCEL button repeatedly to exit the menu screen.
Page 101 D Select [ALL IMAGES] and press the button. E Specify the number of prints using · buttons and then press the ENTER button. F Press the CANCEL button to exit the DPOF setting menu. Press the CANCEL button repeatedly to exit the menu screen.
Page 102 D Specify the number of prints using · buttons and then press the ENTER button. E Press the CANCEL button to exit the DPOF setting menu. Canceling the DPOF Settings This function enables you to cancel all the DPOF settings, including the number of standard prints and number of index prints.
Page 103 E Press the ENTER button. All the print or index settings will be canceled and the screen will return to the DPOF setting menu. F Press the CANCEL button to exit the DPOF setting menu. Confirming the Settings You can confirm the settings for the number of standard prints or number of index prints.
Page 104: Adding A Voice Memo
Adding a Voice Memo (Voice Memo) You can add approximately ten seconds of voice memo to a still picture or text file. A Set the mode dial to [ B Display the file to which you wish to add a voice memo and press the MENU button.
Page 105 Deleting a File This function enables you to delete recorded files. You can delete selected files or all the files in the folder. Important • Files cannot be restored once they are deleted. Before starting to Note delete a file, make sure that you want to delete it. •...
Page 106: Deleting All Files Or A Single File
E Press the shutter release button. The file will be deleted and the display will return to the playback screen. • When a file is deleted, the Note subsequent file numbers are reassigned. Deleting All Files or a Single File You can delete all the files in a folder at a time or a single file.
Page 107 Camera Settings and Other Functions Chapter Changing Camera Settings .. 106 Adding or Deleting a Folder ... 106 Keep Settings ... 108 Changing the LCD Confirmation Time ... 109 Auto Power Off Setting ... 110 Beep Sound Setting ... 111 Setting the Power Saving Mode .
Page 108: Changing Camera Settings
Changing Camera Settings This section explains how to add/delete a folder and how to change the camera settings (auto power off, beep sound, keep settings, etc.). Adding or Deleting a Folder This function enables you to add or delete a folder for saving recorded images. A Press the button to select the storage memory in which you wish to...
Page 109: Deleting A Folder
C Press the CANCEL button to exit the folder list. • Naming of the folder depends on the DCF (Digital rule for Camera File) Note System • Folders can be created from number 100 – 999. • You can specify the destination for saving the folder in Recording and Play modes.
Page 110: Keep Settings
Keep Settings The keep settings mode enables you to save the settings after the camera is switched off. The following settings can be saved. • Flash mode P.55 • Date imprint P.67 • Focus mode P.64 • Sharpness mode • Monochrome mode •...
Page 111: Changing The Lcd Confirmation Time
Changing the LCD Confirmation Time When you press the shutter release button to record the image in Picture) mode, the recorded image will be displayed on the LCD monitor. You can select the time for confirming the image after shooting from 0 second (OFF), 1 second, 2 seconds, 3 seconds and 5 seconds.
Page 112: Auto Power Off Setting
Auto Power Off Setting The camera will turn off automatically (auto power off) in the recording and play modes to conserve the battery if it is left idle (no buttons operated) for a preset length of time. The time until the auto power off function is activated can be set from OFF, 1 minute, 3 minutes or 5 minutes.
Page 113: Beep Sound Setting
Beep Sound Setting The camera beeps to alert you when it records a picture. You can enable and disable the beep by the following steps. A Set the mode dial to [ B Select [CAMERA SETTINGS] and press the button. C Select [BEEP SOUND] and press the button.
Page 114: Setting The Power Saving Mode
Setting the Power Saving Mode This function enables you to reduce the power consumption of the LCD monitor and extend the life of the battery. A Set the mode dial to [ B Select [CAMERA SETTINGS] and press the button. C Select [POWER SAVE] and press the button.
Page 115: Changing The Display Language
Changing the Display Language The information on the LCD monitor is available in English, French, German and Japanese. A Set the mode dial to [ B Select [CAMERA SETTINGS] and press the button. C Select [LANGUAGE] and press the button. D Choose the desired display language and then press the ENTER button.
Page 116: Changing The Video-Out Signal Method (Ntsc/Pal)
Changing the Video-out Signal Method (NTSC/PAL) If you wish to play recorded files on a TV when you are abroad, change the Video-out Signal Method according to the video system used in the country where you are. • “Playback Using a TV” (P.86) for instructions on how to connect the camera to a TV •...
Page 117: Setting A Signature
Setting a Signature You can select a signature to be attached to an image in signature imprint mode (P.78). • Create the signature on a PC first and transfer it to the camera. Note “Setting Signatures” in the ‘Connecting to a Personal Computer’ operation manual.
Page 118: Changing The File Numbering Method
Changing the File Numbering Method When using a memory card as the recording destination, you can set whether or not you want the files to be automatically assigned a sequential number when recorded. When sequential numbering is ON The file names R0010001 to R9999999 are assigned to the files. Since the camera remembers the last file name assigned, the numbers are assigned in sequence even when a new card is used.
Page 119: Turning The Camera On When The Lcd Monitor Is Opened
C Select [SEQUENTIAL NO.] and press button. D Select [ON] or [OFF] and then press the ENTER button. When set to OFF, consecutive file names starting with RIMG0001 will be assigned to the files. E Press the CANCEL button to return to the Setup menu.
Page 120: Initializing The Settings
D Choose the power setting (YES or NO) and then press the ENTER button. If you select [YES], the camera will turn on when the LCD monitor is opened. E Press the CANCEL button to return to the Setup menu. •...
Page 121 D Press the ENTER button. The confirmation message will be displayed. E Press the ENTER button. The final confirmation message will be displayed. F Press the shutter release button. The camera settings will be reset and the camera will be restarted.
Page 122: Using The Remote Control
Using the Remote Control This section explains how to operate the camera using the optional remote control units, DR-3 and DR-4 (available in the near future). Important • The remote control receiver is located on the front of the camera. Operate Note the remote control unit by pointing it at the remote control receiver.
Page 123 Using the Continuous Shooting A Press the MENU (ENTER) button. B Select [CONT. MODE] using the C Select [ON] using the button. Press the RELEASE button to record the image. Shooting Still Pictures and Text with Voice Memo A Press the MENU (ENTER) button. B Select [VOICE MEMO] using the button.
Page 124 B Choose a file by pressing the button. The remote control unit buttons are operated in the same way as the buttons on the camera. Displaying Magnified Images A Press the Zoom playback will be enabled. B Change the display position using the Depending on the file, you can change the magnification by pressing the button.
Page 125: Using The Dr-3 Remote Control
Using the DR-3 Remote Control Shooting A Set the mode dial on the camera to a Recording mode ( and press the the recording destination. B Decide the composition of the picture and press the RELEASE button on the remote control unit. Press to make the subject larger, and press...
Page 126 Playback A Set the mode dial on the camera to ] and press the select the playback source. The most recently recorded file will be played back. B Choose a file by pressing the FWD ( ) or REV ( ) button. The remote control unit buttons are operated in the same way as the buttons on the camera.
Page 127 Deleting Important • Files cannot be restored once they are deleted. Before starting to Note delete a file, make sure that you want to delete it. Deleting a single file A Set the mode dial on the camera to ] and press the select the deleting source.
Page 128 C Press the RELEASE button. RELEASE All files will be deleted. ERASE PROGRAM ENTER MULTI...
Page 129: Appendix
Appendix Troubleshooting ... 128 Error Messages ... 131 Using Your Camera in Other Countries ... 133 Recording Capacities ... 134 Accessories ... 135 Handling Precautions ... 136 Care and Storage ... 137 Specifications ... 138 About the Warranty and Servicing ... 140 Index ...
Page 130: Troubleshooting
Troubleshooting Refer to the pointers listed below before submitting the equipment for repairs. If the problem persists after trying the suggestions, contact your nearest Ricoh service office. Power Source Problem Cause Power will not Battery not loaded or battery come on...
Page 131 Problem Cause Autofocus is on Dirty lens or AF viewfinder but camera not Subject not in center of shooting focusing scope Subject difficult to focus on Distance to subject is too close Flash will not Recording mode set on fire or will not Memo) or (Motion Picture) charge...
Page 132 Problem Display shut off Battery is exhausted Auto power off activated Remote control Obstruction between remote control unit (optional) unit and camera sensor will not work Remote control transmitter or camera sensor is dirty Remote control lithium battery is exhausted LCD monitor Area captured by autofocus field brightness...
Page 133: Error Messages
(P.6) with the tip of a propelling pencil or similar object. The settings will return to the factory default settings. If the error message is still displayed, contact the store where purchased or your nearest Ricoh service office. Remedy Turn the power off and on.
Page 134 MEMO...
Page 135: Using Your Camera In Other Countries
Using Your Camera in Other Countries Ricoh AC-3 AC adapter (optional) • The adapter can be used in regions where the voltage ranges from 100 V to 240 V and the frequency is 50Hz/60Hz. • Some countries use electrical outlets which have different shapes. Inquire at your travel agent about the necessary plug adapter for the country of your destination before you leave.
Page 136: Recording Capacities
Recording Capacities The table below gives approximate recording picture counts by CF card capacity, image quality and size. Still picture (no. of images) Text (no. of images) Motion picture (minutes) Voice memo (minutes) • Recording picture counts vary depending on the kind of CF cards, Note even when they have the same capacity.
Page 137: Accessories
Accessories Item AC adapter Battery charger Rechargeable lithium ion battery DB-20L Battery for powering the camera. Remote control unit • For Ricoh compatible products, see the separate list of Compatible Note Products. Model Remarks AC-3 Used to supply power directly from a household electrical outlet.
Page 138: Handling Precautions
Handling Precautions This camera is not waterproof. Keep away from water, rain, beverages, etc. If any liquid gets into the camera, consult your nearest Ricoh service office. Be careful not to drop the camera or subject it to impact. To avoid overheating, do not use the flash more than is necessary in continuous shots.
Page 139: Care And Storage
Be sure to clean the lens after use at the beach or in the vicinity of chemicals. If the camera should malfunction, contact your nearest Ricoh service office. This product generates high voltages and disassembly is hazardous. Under no circumstances should you attempt to disassemble it yourself.
Page 140: Specifications
Specifications General Video Signal Protocol Power Source Voltage Dimensions (W Weight Operating Range – Temperature : 0°C to 40°C (32°F to 104°F) Operating Range – Humidity Storage Temperature Range Camera Lens • Focal length • Minimum shooting range • Macro shooting range Viewfinder •...
Page 141 Image Data Recording and Playback Image Resolution • Still picture • Text • Motion picture File Format • Still picture • Text • Motion picture • Voice memo Camera File System Standard : DCF * DCF stands for “Design rule for Camera Compression Format File Sizes •...
Page 142: About The Warranty And Servicing
In the event of a camera malfunction, contact the dealer from which you purchased the camera or your nearest Ricoh service office. Please note that you will be not be reimbursed for the cost of bringing the camera to the Ricoh service office.
Page 143 • Before sending the camera in for repair, check the battery and read Note the instruction manual again to ensure proper operation. • Some repairs require a significant amount of time to be completed. • When sending the camera to a service center, please include a note which describes the defective part and the problem as precisely as possible.
Page 144: Index
Index Functional Index SET Mode (Setup) CAMERA SETTINGS ... KEEP SETTINGS ... Camera ... P.108 ... LCD CONFIRM..Camera ... P.109 ... AUTO POWER OFF ... Camera ... P.110 ... BEEP SOUND ... Camera ... P.111 ... POWER SAVE ... Camera ... P.112 ...
Page 145: Recording Mode
... FTP UPLOAD ... Communication/Internet ... P.51 ... QUICK SEND ... Communication/Internet ... P.44 ... NETWORK ... Connecting to a Psersonal Computer ... P.158 ... PC CONNECTION ... Connecting to a Psersonal Computer ... P.156 ... MODEM SETTING ... Communication/Internet ... P.60 FORMAT ...
Page 146: Play Mode
Play Mode ( MENU Button ... SEND ... Communication/Internet ... P.70, 73 ... QUICK SEND ... Communication/Internet ... P.68 ... COPY ... Camera ... P.88 ... PROTECT ... Camera ... P.92 ... AUTO PLAYBACK ... Camera ... P.95 ... DPOF SETTING ... Camera ... P.96 ...
Page 147 PC Mode ( Communication Mode ( ... E-MAIL ... Communication/Internet ... P.83 ... DIRECT UPLOAD ... Communication/Internet ... P.94 Connecting to a Personal Computer...
Page 148: Alphabetical Index
Alphabetical Index AC adapter ... 18 AF LED ... 47 Auto bracket ... 74 Auto focus lamp ... 47 Auto playback ... 95 Auto power off ... 110 Battery Charging ... 15 Loading ... 16 Beep sound ... 111 Camera How to hold ...
Page 149 Recording mode ... 41 LCD panel ... 26 Lens cap ... 14 Macro mode ... 63 Manual focus ... 64 Memory card ... 20 Mode dial ... 25 Monochrome mode ... 72 Motion Picture mode ... 52 NC (Non-compressed) mode ... 44 Owner information Registering ...
Page 150 Declaration of Conformity “The Product complies with the requirements of the EMC Directive 89/336/EEC.”...
Page 151: Information To The User
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RICOH CORPORATION 5 Dedrick Place, West Caldwell NJ, 07006 Tel.: 1-800-225-1899 Note to Users in Canada...
Page 152 MEMO...
Page 153: Ricoh Service Offices
Ricoh Europe B.V. Düsseldorf Branch Photo Products Division Oberrather Straße 6 D-40472 Düsseldorf Germany Ricoh Photo Products (Asia), Ltd. Unit D, E & F 24/F., China Overseas Building 139 Hennessy Road, Wan Chai Hong Kong Ricoh Australia Pty. Ltd. 8 Rodborough Road Frenchs Forrest, N.S.W.
Page 154 RICOH CO., LTD. 3-2-3, Shin-yokohama Kohoku-ku, Yokohama-shi 222-8530, Japan L2172551...

Ricoh CAMERA RDC-i500 Operation Manual

Chapter 1 Getting Started

Tips Tips to Extend the Recording and Playback Times

Chapter 2 Basic Operations

Chapter 3 Shooting

Chapter 4 Playback/Deleting

Chapter 5 Camera Settings and Other Functions

Appendix

Quick Links

Related Manuals for Ricoh CAMERA RDC-i500

Summary of Contents for Ricoh CAMERA RDC-i500

Table of Contents
