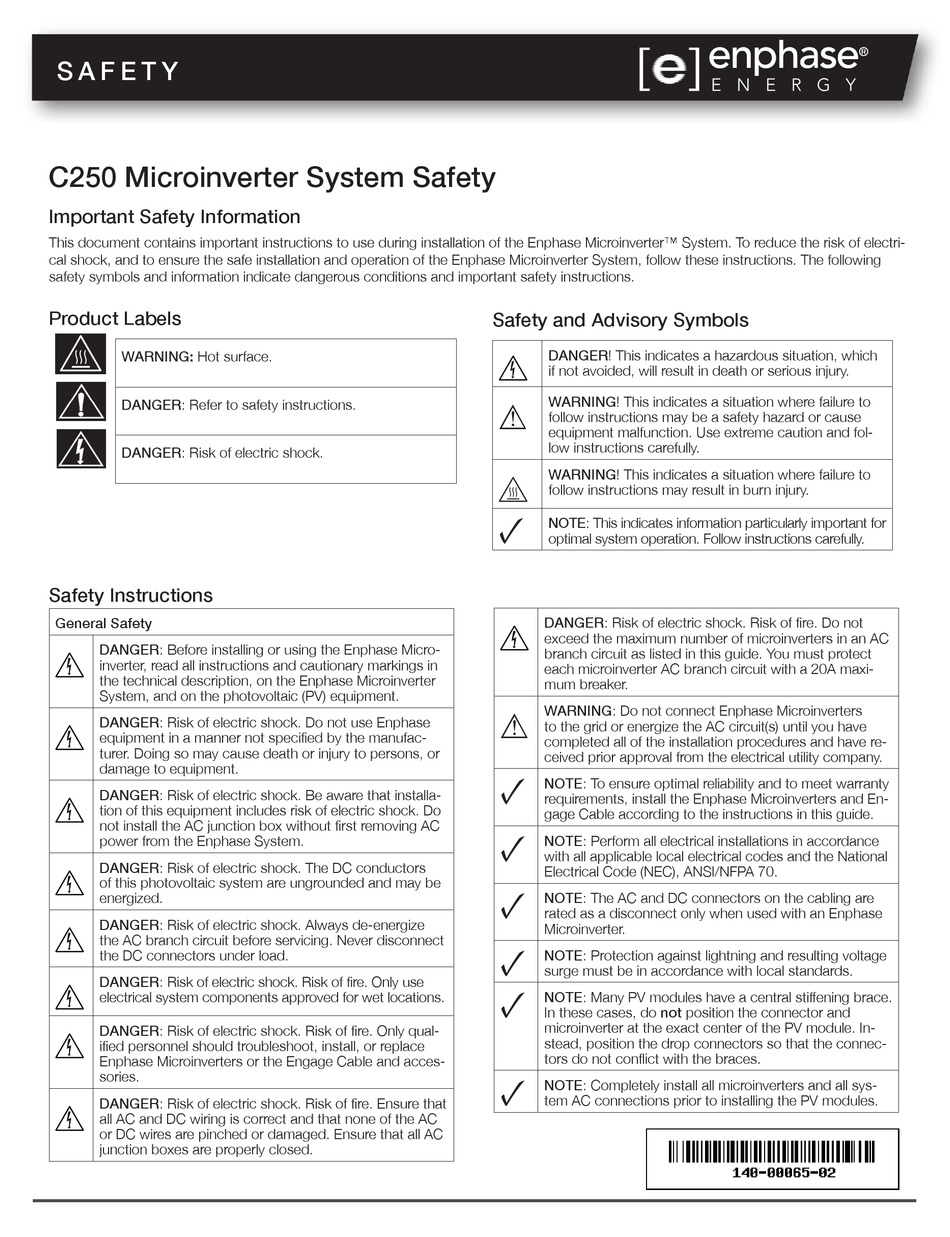

S A F E T Y
C250 Microinverter System Safety

Important Safety Information

This document contains important instructions to use during installation of the Enphase Microinverter™ System. To reduce the risk of electri-
cal shock, and to ensure the safe installation and operation of the Enphase Microinverter System, follow these instructions. The following
safety symbols and information indicate dangerous conditions and important safety instructions.
Product Labels
WARNING: Hot surface.
DANGER: Refer to safety instructions.
DANGER: Risk of electric shock.

Safety Instructions

General Safety
DANGER: Before installing or using the Enphase Micro-
inverter, read all instructions and cautionary markings in
the technical description, on the Enphase Microinverter
System, and on the photovoltaic (PV) equipment.
DANGER: Risk of electric shock. Do not use Enphase
equipment in a manner not specified by the manufac-
turer. Doing so may cause death or injury to persons, or
damage to equipment.
DANGER: Risk of electric shock. Be aware that installa-
tion of this equipment includes risk of electric shock. Do
not install the AC junction box without first removing AC
power from the Enphase System.
DANGER: Risk of electric shock. The DC conductors
of this photovoltaic system are ungrounded and may be
energized.
DANGER: Risk of electric shock. Always de-energize
the AC branch circuit before servicing. Never disconnect
the DC connectors under load.
DANGER: Risk of electric shock. Risk of fire. Only use
electrical system components approved for wet locations.
DANGER: Risk of electric shock. Risk of fire. Only qual-
ified personnel should troubleshoot, install, or replace
Enphase Microinverters or the Engage Cable and acces-
sories.
DANGER: Risk of electric shock. Risk of fire. Ensure that
all AC and DC wiring is correct and that none of the AC
or DC wires are pinched or damaged. Ensure that all AC
junction boxes are properly closed.
Safety and Advisory Symbols
DANGER! This indicates a hazardous situation, which
if not avoided, will result in death or serious injury.
WARNING! This indicates a situation where failure to
follow instructions may be a safety hazard or cause
equipment malfunction. Use extreme caution and fol-
low instructions carefully.
WARNING! This indicates a situation where failure to
follow instructions may result in burn injury.
NOTE: This indicates information particularly important for
optimal system operation. Follow instructions carefully.
DANGER: Risk of electric shock. Risk of fire. Do not
exceed the maximum number of microinverters in an AC
branch circuit as listed in this guide. You must protect
each microinverter AC branch circuit with a 20A maxi-
mum breaker.
WARNING: Do not connect Enphase Microinverters
to the grid or energize the AC circuit(s) until you have
completed all of the installation procedures and have re-
ceived prior approval from the electrical utility company.
NOTE: To ensure optimal reliability and to meet warranty
requirements, install the Enphase Microinverters and En-
gage Cable according to the instructions in this guide.
NOTE: Perform all electrical installations in accordance
with all applicable local electrical codes and the National
Electrical Code (NEC), ANSI/NFPA 70.
NOTE: The AC and DC connectors on the cabling are
rated as a disconnect only when used with an Enphase
Microinverter.
NOTE: Protection against lightning and resulting voltage
surge must be in accordance with local standards.
NOTE: Many PV modules have a central stiffening brace.
In these cases, do not position the connector and
microinverter at the exact center of the PV module. In-
stead, position the drop connectors so that the connec-
tors do not conflict with the braces.
NOTE: Completely install all microinverters and all sys-
tem AC connections prior to installing the PV modules.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C250 and is the answer not in the manual?

Questions and answers

Summary of Contents for enphase C250

  • Page 1: Important Safety Information

    Important Safety Information This document contains important instructions to use during installation of the Enphase Microinverter™ System. To reduce the risk of electri- cal shock, and to ensure the safe installation and operation of the Enphase Microinverter System, follow these instructions. The following safety symbols and information indicate dangerous conditions and important safety instructions.
  • Page 2 NOTE: Check the labeling on the Engage Cable drop void the warranty. connectors to be sure that the cable matches the electri- cal service at the site. Use only C250 Engage Cable with WARNING: Risk of skin burn. The body of the Enphase the C250 Microinverter.
  • Page 3 Envoy is Cable and AC connections) are properly seated. Reseat if located with the phase coupler and Enphase Line Filter as necessary. Check the AC and DC cables for damage. shown in the System Diagram.
  • Page 4: Q U I C K I N S T A L L G U I D E

    Q U I C K I N S T A L L G U I D E Required System Components Read and follow all warnings and instructions in this Guide before installing the Enphase® C250 Microinverter System™. This system in- cludes the Enphase C250 Microinverter, Enphase Envoy Communications Gateway™...
  • Page 5: Pre-Installation Tasks

    These transformers usually have taps for voltage. • Install a phase coupler to couple the Enphase power line communication signal between the three phases. You need a phase coupler with each Envoy-C in a C250 system to allow communication with the microinverters on all three phases.
  • Page 6 Hawaii as the state under Location, the Grid Profile menu appears. For most regions, you do not need to select a grid profile when installing the C250 because it is preset with the appropriate profile. However, when inter-connecting to grids managed by...
  • Page 7 Position the Enphase Engage Cable a. Plan the cable length to allow drop connectors on the Engage Cable to align with each PV module. Allow ex- tra length for slack, cable turns and any obstructions. b. Cut a length of Engage Cable to meet your planned Engage needs.
  • Page 8: Connect The Microinverters

    Mount the microinverter under the PV module, away from rain and sun. Do not mount the microinverter in b. Cover any unused connectors with Enphase Seal- a position that allows long-term exposure to direct ing Caps. Listen for two clicks as the connectors sunlight or in a vertical orientation that allows water to engage.
  • Page 9 Turn ON the main utility-grid AC circuit breaker. Your system will start producing power after a five-minute wait time. Complete the Installation Map Build the system map manually, or use the Enphase In- staller Toolkit to easily build and configure a system. For details, refer to http://enphase.com/installer-toolkit.
  • Page 10 30 minutes. If it does not, see ernet cable from the Envoy. Troubleshooting • Plug the Enphase wireless adapter into the left USB c. Stop the scan when all devices are detected. port (looking at Envoy from the front), and wait 10 seconds.
  • Page 11 NOTE: To remove a sealing cap, you d. You can now view System Performance in must use the Enphase disconnect tool or Enlighten. a #3 Phillips screwdriver. WARNING: Only use electrical system components approved for wet locations.
  • Page 12 C250 Sample System Diagram Enphase Energy, Inc. 1420 N. McDowell Blvd. Petaluma, CA 94954 support@enphaseenergy.com © 2014 Enphase Energy Inc. All rights reserved. http://www.enphase.com...
