Summary of Contents for Logik L17MSS10
-

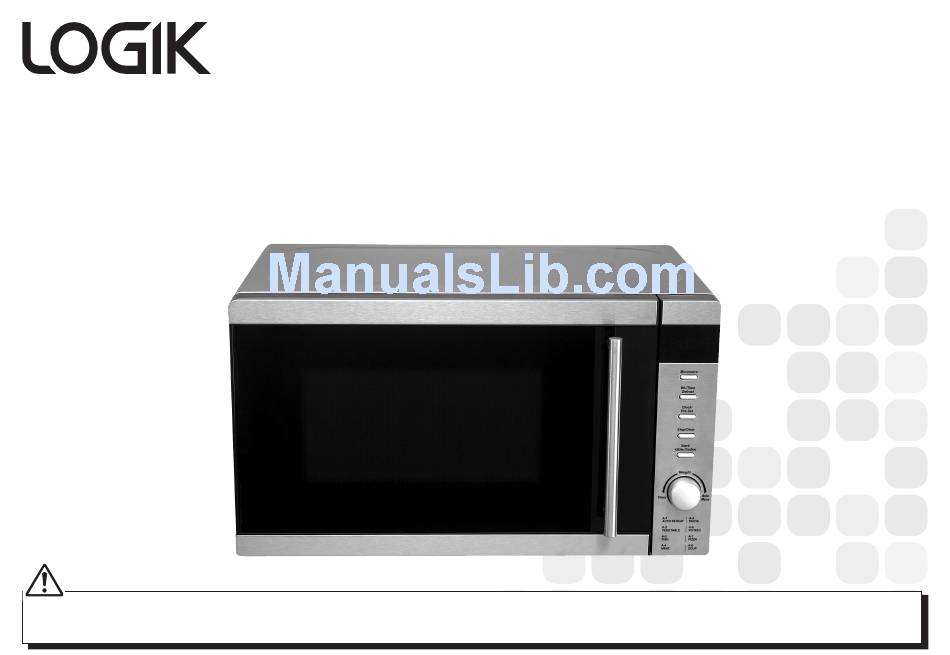

Page 1: Instruction Manual

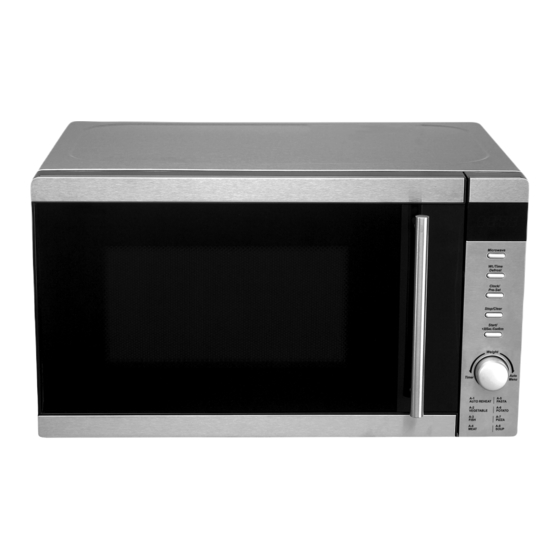

Stainless Steel Microwave Instruction Manual L17MSS10 DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 0844 561 6263 (Currys) and 08700 118 117 (Pixmania). -
Page 2: Important Safety Instructions
Important Safety Instructions Safety Please Read Carefully and Care should be taken so metal objects are Containers not left in the microwave Pressure will build up in sealed containers Keep for Future Reference First aid These include : and can cause them to explode. Therefore ¨... - Page 3 Electrical Information Electrical Information Before using this appliance ensure that the voltage of your electricity supply is suitable for that indicated on the rating plate of the appliance. The ultimate disconnection from the power source is the mains plug. Always make sure it is easily accessible to be unplugged in the event of an emergency.
-
Page 4: Table Of Contents
Contents Contents Unpacking and getting ready page 5 Introducing microwave cooking page 7 Setting the child lock page 12 Using the microwave page 13 Speedy Cooking page 15 Auto Menu page 16 Setting the Clock page 18 Program set in Advance page 19 Two-Stage cooking page 20... -
Page 5: Unpacking And Getting Ready
Unpacking and getting ready Unpacking This microwave oven is After unpacking your oven, check that it has not been damaged whilst in designed for home use. It the box. Make sure there are no dents, that the door closes properly. should not be used for A dented or damaged oven could allow microwave energy to escape. - Page 6 Getting to know your Display microwave Shows the clock and cooking time/setting Control panel The oven beeps when you choose a setting on the control panel Turntable spindle Accessories: (included) LED display Shows the clock or cooking time/setting Glass turntable Microwave button Turntable ring Defrost by Wt./Time...
-
Page 7: Introducing Microwave Cooking
Introducing microwave cooking Introducing microwave cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction booklet. -
Page 8: Checking Your Cooking Utensils
Introducing microwave cooking Microwave ovens cook food using microwave energy that is Safety similar to naturally occurring radio waves. Normally, these "waves" would fade as they disappeared into the atmosphere Never use equipment but in a microwave oven they are concentrated onto food made of metal, except causing it to heat up. -
Page 9: Microwave Heating Categories
More about getting the most from microwave cooking Introducing microwave cooking Microwave heating categories Your oven has been tested and labelled to meet the government's voluntary agreement on the reheating of pre-cooked food. 700W Remember W is the output power of Always check that the food is the oven. - Page 10 Steam Introducing microwave cooking When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the oven.
-
Page 11: Checking Your Microwave
Checking your microwave Introducing microwave cooking Check your microwave is working after unpacking and whenever you think it might not be working properly. Pull handle to open the door. Safety Put the turntable ring inside the oven and place the glass turntable on For your safety, the top of the ring. -
Page 12: Setting The Child Lock
Setting the Child Lock Setting the child lock The child lock is a safety feature which when set will lock all of the buttons on your microwave. This prevents your microwave being used accidentally, though your microwave door will still open. To lock: In waiting state, press "Stop/Clear"... -
Page 13: Using The Microwave
Using the microwave Using the microwave Basic microwave cooking and reheating Hint: Press the "Stop/Clear" button. Starting and stopping cooking It is possible to check cooking progress at any time, by opening the door and inspecting the food. This interrupts the emission of Make sure the glass turntable and the turntable ring microwave energy and the are inside the oven. - Page 14 Using the microwave Press "Microwave" for times or turn "Timer/Weight/Auto Menu" to select the microwave power from100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order. Press "Start/+30Sec./Confirm" to confirm. Turn "Timer/Weight/Auto Menu" to adjust the cooking time. (The time setting should be 0:05- 95:00.) Press "Start/+30Sec./Confirm"...
-
Page 15: Speedy Cooking
Speedy Cooking Microwave cooking Put the turntable ring inside the oven and place the glass turntable on top of the ring. The turntable is shaped to sit securely on the spindle. Hint You must always use the turntable and ring whenever you use the The quick start feature allows microwave. -
Page 16: Auto Menu
Auto Menu Microwave cooking In waiting states, turn "Timer/Weight/Auto Menu" right to choose the menu from "A-1" to "A-8"; Press "Start/+30Sec./Confirm" to confirm the menu you choose; Turn "Timer/Weight/Auto Menu" to choose the food weight; Press "Start/+30Sec./Confirm" to start cooking; After the cooking is finished, the microwave will sound five times. - Page 17 The menu chart: Microwave cooking Menu Weight(g) Display Time Comment 2:40 AUTO 5:20 Make sure food is thoroughly heated through. REHEAT 8:00 4:00 Vegetables can be boiled or steamed. Cover vegetables with boiling water before operation or add 2 tablespoons of water per 100g and cover 5:00 with microwave safe cling film and pierce the VEGETABLE...
-
Page 18: Setting The Clock
Setting the clock Microwave cooking When the microwave oven is connected to the mains, the oven will display "0:00" and will sound once. Press "Clock/Pre-Set", the hour figure will flash; Turn "Timer/Weight/Auto Menu" to adjust the hour figures, the input time should be within 0--23. -
Page 19: Program Set In Advance
Program set in Advance Microwave cooking Set the clock first. (Consult the instruction of clock setting.) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function. Example: if you want to cook with 80% microwave power for 7 minutes. a. -
Page 20: Two-Stage Cooking
Two-Stage cooking Microwave cooking You can set a maximum of 2 stages for Two-Stage Cooking. If defrosting is among one of the stages, then it will be set as the first stage. The microwave will sound once after the completion of each stage. Note: Auto menu cannot be set as one of the Two-Stage Cooking. -
Page 21: Inquiring Function
Inquiring Function Microwave cooking Press the "Microwave" button once and the LED display will show the current cooking power while the oven is at microwave cooking state. It will last for 3 seconds and the oven will then return to its original display. While the oven is still at the pre-set state, press the "Clock/Pre-set"... -
Page 22: Defrosting
Defrosting Defrosting Defrost by weight Hint Make sure the glass turntable, turntable ring and defrost rack You may wish to place the are inside the oven. frozen food onto a plate or After putting your frozen food in the oven on the defrost rack, dish before placing it onto the defrost rack. -
Page 23: Defrost By Time
Defrosting Defrost By Time Note Make sure the glass turntable, turntable ring and defrost rack are inside the oven. The defrost rack is not included/ After putting your frozen food in the oven on the defrost rack, supplied in this microwave close the door. -
Page 24: Cleaning Your Microwave
Cleaning your microwave Cleaning Cleaning your oven each time you use it will help to prevent stubborn marks that can be difficult to clean. Caution Pay attention to the area around Keep the front of the Be careful not to spill Unplug the oven before oven clean so that the water into the vents. -
Page 25: Using Aluminium Foil In Your Microwave
Using aluminium foil in your Using aluminium foil microwave It is safe to use aluminium foil in your microwave oven as long as you follow these safety guidelines. As with all metal, microwave energy Follow these guidelines when using can not pass through foil, but provided foil in your microwave: that you keep the foil away from the side of the oven it will not cause sparks... -
Page 26: Questions And Answers
Questions and answers Questions and answers Why is it so important that I allow Why does not food seem to cook? standing time after cooking? Check that: With microwave cooking, many foods build up If you have a problem enough heat inside them to continue cooking even •... - Page 27 Questions and answers Does the microwave energy get through Why will not the oven light come on? the window on the door? Open the door. If the light does not come on, the No. The door has a special metal screen with holes in that lets you see inside but stops microwave bulb has probably blown.
-
Page 28: Specification
Specification Specification Input 230 - 240 V~ 50Hz Output 700 - 750 Watts Microwave frequency 2450MHz Outside dimensions 440mm wide x 258mm high x 354mm deep Power consumption Microwave 1200 - 1300 Watts Complies with EEC directives 89/336/EEC and 92/31/EEC. Because we continually strive to improve our products, we may change specifications without prior notice.
