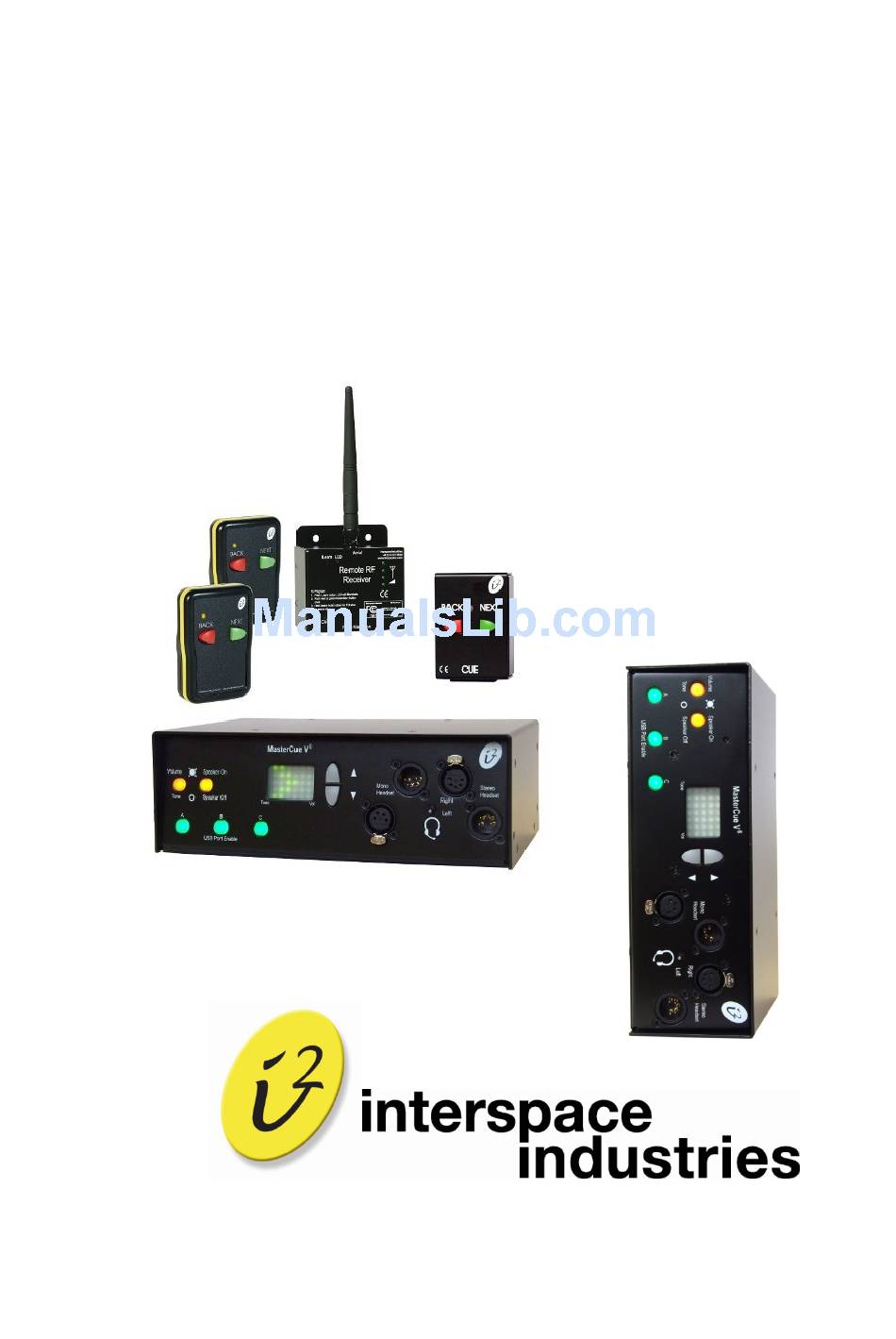

- Page 1 MasterCue V6 User Manual Cueing and Presentation Control Specialists...
-
Page 2: Table Of Contents
Contents: Introduction MasterCue Range Features Safety Instructions Conformity Operating Instructions Programming Handsets to Receiver Programming the ‘Click’ Relay Programming Special Cues Special Requirements RF System Troubleshooting System Protection Features Equipment Supplied Technical Support Contact... -
Page 3: Introduction
Introduction MasterCue V6 is the latest in over 12 years of Cueing systems from Interspace Industries. Building on its breeding from the previous systems and listening to you, the users, of these systems. Reliability is still at the forefront of our systems. Our remote RF receiver still ensures reliable positioning away from the Technician and the amassed electronics ( laptops, Screens Video etc..) that may cause interference. -
Page 4: Safety Instructions
Safety Instructions All safety and operating instructions should be read before this product is operated and should be retained for further reference. Please adhere to all the warnings on this product and in these operating instructions. Please follow these instructions carefully. Power. - Page 5 Diagrams Figure 1: MasterCue Connections Diagram Figure 2: MasterCue Rear Panel...
- Page 6 FCC STATEMENTS Interspace Industries MasterCue Range of Products Made In UK. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera- tion.
- Page 7 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. We, Interspace Industries, have determined that the above named equipment has been shown to comply with the applicable technical standards. Furthermore, we warrant that each unit of equipment marketed is identical to the unit tested and found acceptable with the standards.
-
Page 8: Conformity
Article 3.2 EN 300 220-3 v1.1.1. Declaration We, Interspace Industries, declare under our sole responsibility that the essential radio test suites have been carried out and that the above product to which this declaration relates is in conformity with all the applicable essential requirements of EU Directive 1995/5/EC... - Page 9 “MasterCue” overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF Dutch Hierbij verklaart Interspace industries dat het toestel “MasterCue” in over- eenstemming is met de essentiële eisen en de andere relevante bepal- ingen van richtlijn 1999/5/EG Bij deze verklaart Interspace industries dat deze “MasterCue” voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn...
-
Page 10: Operating Instructions
Ensure the antenna is vertical. Connect this to the ‘RF Receiver’ input on the MasterCue V6 main unit using a standard 3-pin XLR cable. Connect the wired handset to the ‘Wired Cue Button’ input on the MasterCue V6 main unit also using standard 3-pin XLR cables. - Page 11 USB is connected. Alternatively check device manager. Failure to do so will render the MasterCue V6 unusable. USB Ports Enable. (A, B, C) Normal reset mode for this is Operator Control mode (on).
-
Page 12: Programming Handsets To Receiver
Programming Handset Transmitters to Receiver To program a transmitter (wireless handheld) to the receiver, using a suitable sized tool, insert into the ‘Learn’ aperture on the receiver module and press the internal button once so the LED glows red While the ’Learn’ LED is illuminated on the receiver, press any button on the transmit- ter (wireless handheld) and the LED will go out. -
Page 13: Special Requirements
With the main unit connected to the power and turned on, connect the external keyboard (USB) to the keyboard input on the rear of the MasterCue main unit. Check that the com- puter can be controlled from the keyboard which is now connected to the MasterCue main unit (please note that some special keys will not work;... -
Page 14: Rf System
Comms Loop-through. The blue cables provided have been designed to work with most common 4-pin and 5-pin XLR Intercom systems. We do not recommend extending or substituting this cable. Please let us know if you discover any systems which do not work with this configuration by visiting www.interspaceind.com or by calling us on +44 870 770 8088. -
Page 15: System Protection Features
1 x IEC Power Lead 3 x USB cables, A-B 1 each, Blue 4 & 5-pin XLR coms loop–through cables For Technical Support or Sales Enquiries: Interspace Industries Head Office: +44 (0) 1462 600101 Emergency Technical Support Hot Line: +44 (0) 7976 385 046 Website: www.interspaceind.com... - Page 16 Unit 1A 126 Great North Road Hatfield, Hertfordshire AL9 5JN United Kingdom Tel: +44 (0) 1462 600101 Email: moreinfo@interspaceind.com www.interspaceind.com...
