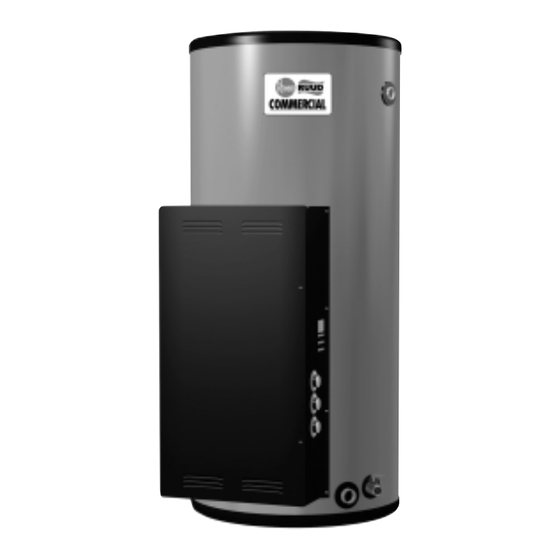

Rheem Ruud 6 KW THRU 54 KW Specification Sheet

IMMERSION ELECTRIC TANK-TYPE WATER HEATERS
RHEEM-RUUD Electric Commercial Water Heaters are
suitable for general commercial hot water applications
and are also ideal for point-of-use installations, eliminat-
ing costly temperature loss in long piping runs. A single
unit can be used as a booster heater to satisfy the hot
water requirements of commercial dishwashers. A single
temperature storage unit, when installed with a mixing
valve, will supply two temperatures in food service
establishments. For larger volume hot water
requirements, 2, 3 or 4 units can be parallel
manifolded, using optional factory kits.
Construction Features:
SYSTEM SENTINEL –
panel, utilizing light emitting diodes (L.E.D.) correspond-
ing to the number and location of each heating element
are energized when the electric elements are operating.
An unlit L.E.D. pinpoints the exact location of a non-
functioning element, making element operation
diagnosis simple and positive..
R-FOAM ® INSULATION –
foam insulation provides superior insulating qualities,
improves efficiency. Exceeds R-16 insulation factor. Our
patented process of injecting R-Foam directly into the
insulating cavity adds additional durability and toughness
to the heater jacket. Fiberglass insulation guards against
heat loss in the heating element compartment, and
provides easy service access.
LIFEGUARD HEATING ELEMENTS –
screw-in type elements feature a stainless steel outer
sheath of INCO-LOY 800, surrounding a Nichrome wire
®
filament, to resist water chemical corrosion and burn-out
even in air or sediment...for long element life and long
life performance. Elements are directly immersed in the
water for efficient transfer of heat, and are easily
changed by simply screwing new ones into the tank.
GLASS LINED STORAGE TANK –
steel tank protects with double coating of exclusive
Rheemglas to resist the corrosive action of hot water.
Designed for 150 PSI working pressure. Each tank is
supplied with factory installed anode rods for cathodic
protection.
Certifications and Ratings:
EFFICIENCY –
These units have been tested according to procedures specified by CSA and meet or exceed the energy
efficiency requirements of ASHRAE Standard 90.1b 1992 requirements for energy conservation.
C O M M E R C I A L
W A T E R
6 KW THRU 54 KW
An element diagnostic
A rigid ployurethane
Separate
Heavy duty
®
H E A T E R S
WATER CONNECTIONS –
are 1-1/2" NPS brass nipples which prevent excessive
turbulence of heating water and result in optimum tank
draw.
SINGLE PANEL CONTROL BOX –
door, provides immediate access to all electrical
components and elements.
TERMINAL BLOCK –
CSA listed terminal blocks for simplicity of installation.
This new terminal block will accept either copper or
aluminum field connect wire.
50, 85 AND
120 GALLON
CAPACITIES
208, 240
AND 600
VOLTAGES
EG
IMMERSION
THERMOSTAT
MODELS
Hot outlet and cold inlet
With hinged
All models are equipped with
