Page 1: Installation Instructions

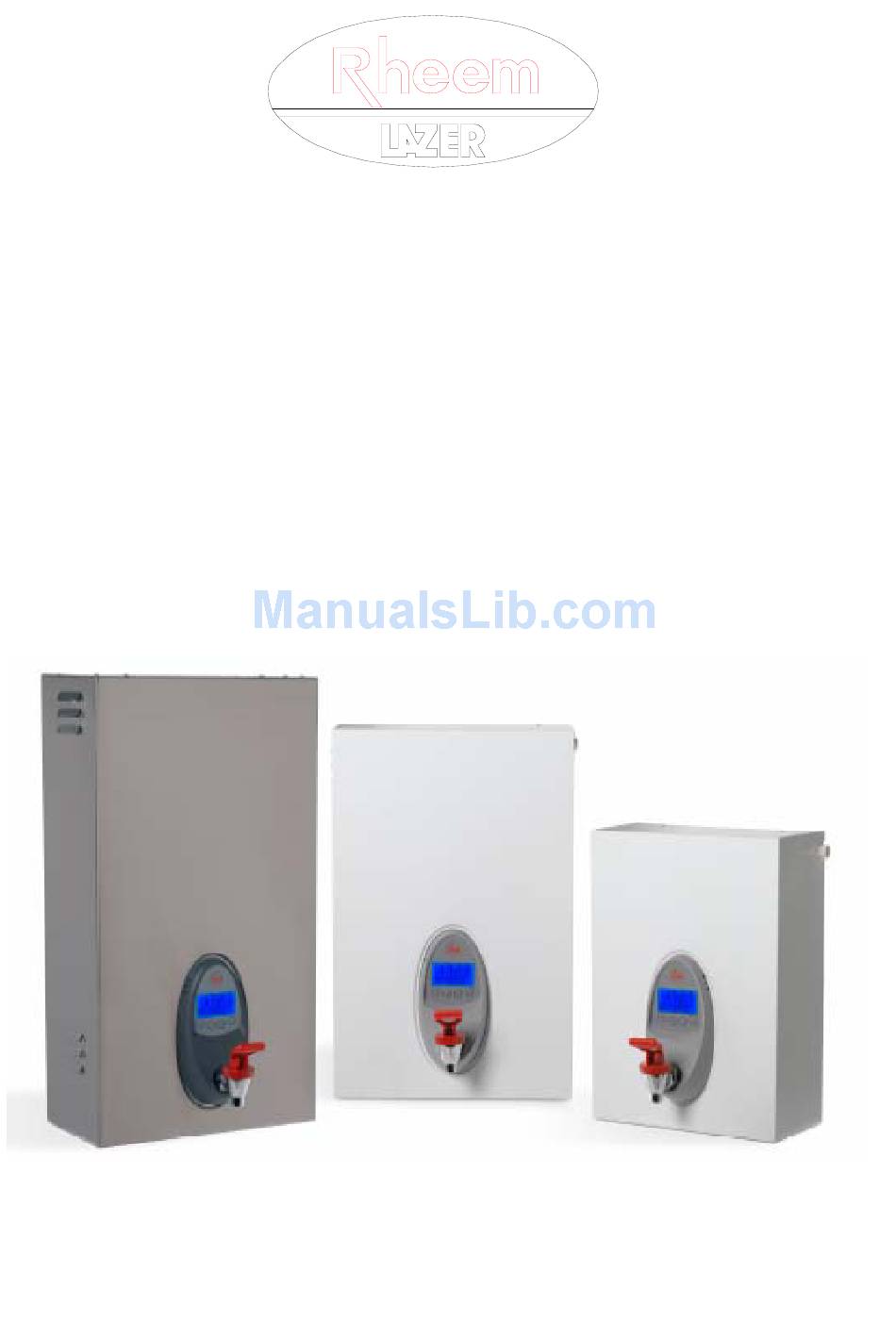

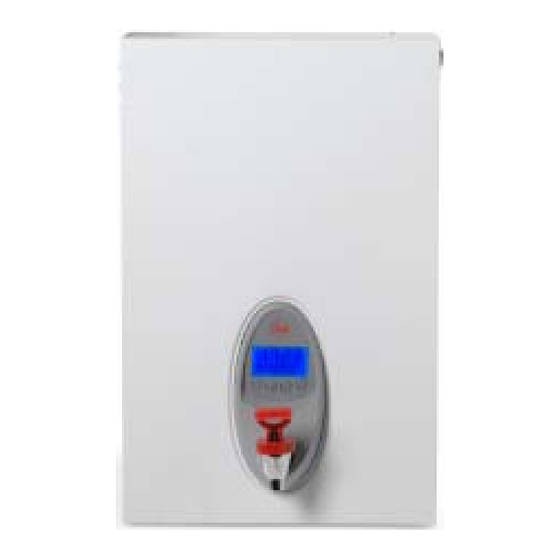

Part No. 316937A OWNERS GUIDE & INSTALLATION INSTRUCTIONS CLASSIC SERIES POWDER COATED Models 3, 5, 7.5, 10, 15, 25, & 40 Litre STAINLESS STEEL Models 7.5, 10, 15, 25, & 40 Litre IMPORTANT, PLEASE LEAVE WITH THE OWNER... -
Page 2: Table Of Contents
CONTENTS 1. WARNING ...3 2. WATER QUALITY ...3 3. INSTALLATION ...3 A. Location ...3 B. Opening the Unit ...3 C. Minimum Clearance ...3 D. Mounting ...3 E. Water Supply Connection ...3 F. Overflow / Vent Connection Importance ...4 G. Drain Connection ...4 H. -
Page 3: Warning
For further information relating to the guidelines of water quality, contact your local Rheem office for advice. 3. INSTALLATION This boiling water unit shall be installed by a qualified service person. The installation must comply with AS/NZS 3500.4 and all relevant statutory and... -
Page 4: Overflow / Vent Connection Importance
Installation and maintenance of the Lazer Boiling Water unit shall be carried out by a qualified service person. Your closest Rheem Service Centre can be contacted by If the site situation requires a pipe length exceeding 3 metres, then discharge the overflow/drain into a tundish. -
Page 5: Tap Outlet
H. TAP OUTLET To prevent damage during transport the tap is wrapped and placed inside the carton. The tap is connected to the tap extension by a chrome-plated nut and tightened using a 29 mm AF spanner. J. ELECTRICAL REQUIREMENTS: WARNING: If this boiling water unit is to be installed in a newly constructed building, ensure... -
Page 6: Mounting Dimension Specification For All Models - Drawing
Figure 2: Overflow / Vent Connection MOUNTING DIMENSION SPECIFICATION Figure 3: Mounting Dimension Specifications 3 Litre Dimension J mm K mm L mm All models Classic Models 5 Litre 7.5 Litre 10 Litre 15 Litre 25 Litre 40 Litre... -
Page 7: Dimension Specification For All Models - Drawing
DIMENSION SPECIFICATION Figure 4: Dimension Specification 3 Litre Dimension A mm B mm C mm D mm E mm F mm G mm H mm N mm M mm Classic models 5 Litre 7.5 Litre 10 Litre 15 Litre 25 Litre 40 Litre... -
Page 8: For Units With A Timer
5. For Units With a Timer Timer Functions Clock Timer STD/AUTO C. Set Sleep Delay Time* D. Set ON/OFF Times* Filter Life i. Remaining Life ii. Filter Reset iii. Filter Life Service Menu * ON/OFF times & Sleep Delay Time only operate in AUTO Mode. -
Page 9: Filter Life
Display Shows: “SUN” “7:00 – 7:00” “Set OFF hour”. Press the (UP) button until the desired hour appears on the screen and press (Accept) button selection. Display Shows: “SUN” “7:00 – 7:00” “Set OFF Minute”. Press the (UP) button until the desired minute appears on the screen and press the (Accept) button to confirm selection and advance to the next day. -
Page 10: Fault Finding Guide
LAZER BOILING WATER UNIT: FAULT FINDING **It is strongly recommended that any REMEDY be carried out by a qualified service person** SYMPTOMS The unit does not fill with water The unit fills water to low level and does not heat The unit boils continuously The unit overflows... -
Page 11: Notes
NOTES:... -
Page 12: Warranty Information
In addition to your legal rights, Rheem makes the following promise to the owner. We will repair or, if necessary, replace a defective boiling water unit or part of it, which has failed due to faulty manufacture on the following terms and conditions:...
