RF-Link XL-2000/H Installation And Operating Instructions

2.4 GHz Wireless Video/Audio Transmission
Links XL-2000/H, XL-2000/HP models
EXCELLENT MICROWAVE LINK 2.4 GHz WITH FREQUENCY AGILE CHANNELS

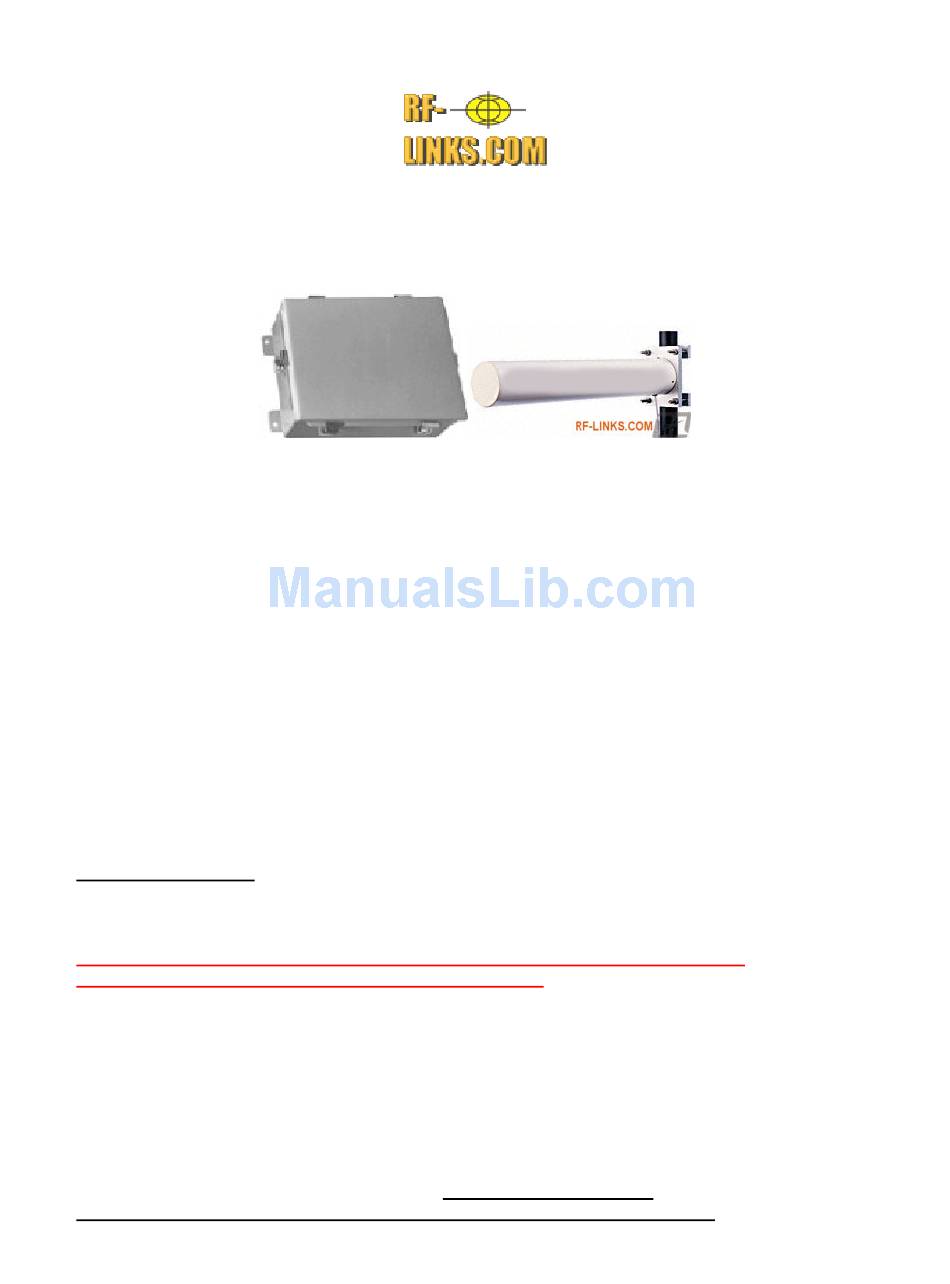

XL 2000/H is a portable microwave link built-in weatherproof Nema enclosures. It is frequency agile
in 2.4 GHz band. XL 2000/H is excellent solution for mobile applications and TV broadcast
transmission up to 16 km line-of-sight.
Installation and Operating Instructions
1• Verify proper operation of camera and monitor/event recorder using coaxial cable prior
to installing wireless link.
2• Install transmitter and receiver units in secure and dry place.
3• Install antennas above the enclosures.
USE EXTREME CARE WHEN INSTALLING ANTENNAS NEAR POWER LINES.
4• Tighten antenna cable to receiver and transmitter. Apply a small amount of silicone to
flange to make a leak proof connection.
5• Connect video, audio, power, cables to units through flanges. Tighten
flanges to allow small air gap at bottom of enclosure.
IMPORTANT NOTE:
Power adapter must be kept dry.
6• Verify that LEDs are lit up and transmitter and receiver are on same channel.
7• Tighten lid of enclosure down.
DO NOT APPLY POWER TO THE TRANSMITTER UNLESS THE ANTENNA IS
CONNECTED. PERMANENT DAMAGE MAY RESULT.
To obtain the best picture quality and transmission distance, the following rules of thumb
should be followed:
1) Mount the transmitter and receiver antennas above human and mechanical traffic,
the higher the better. A 10 foot (or more) steel mast on top of a building is typical. Make sure
that the mast is well grounded to earth ground with an 8 AWG or larger wire. For
maximum range, the transmit and receive antennas must be 15 to 30 feet above all
obstacles in the line of sight.
2) Keep the transmission path as open as possible. Objects such as walls and
metallic objects near the transmission path may reduce the transmission distance.
