Summary of Contents for Revox Digital LS

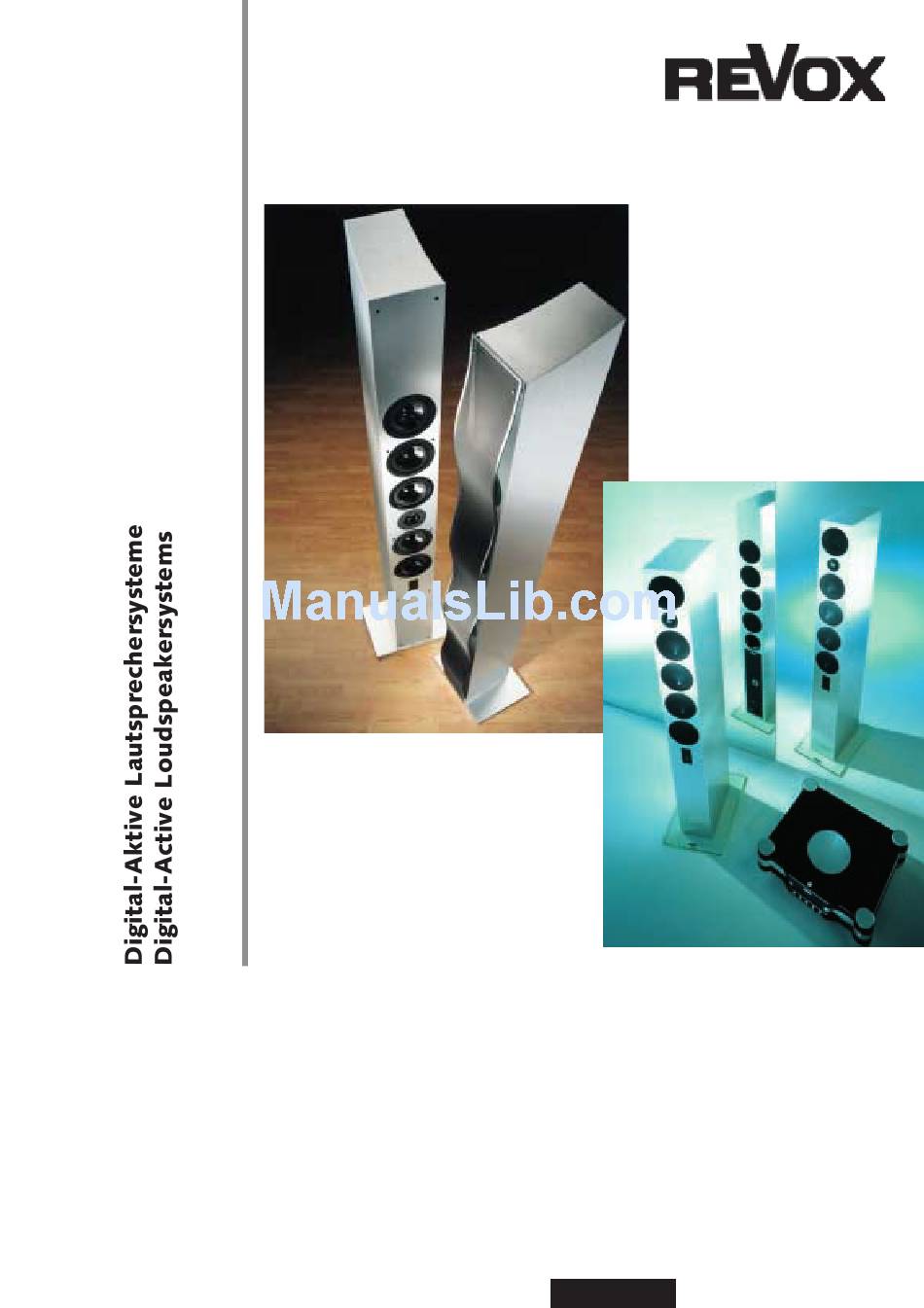

- Page 1 The Philosophy of Excellence Scala 3.6 Prestige Digital of Switzerland...
-
Page 2: Table Of Contents
3.3 What is delay compensation by means of digital technology? ...20 3.4 Negative Impedance ...20 3.5 Graphic to show the sound distribution at different speaker systems ...21 3.6 Why an extensive bracing of the cabinet? ...22 3.7 How works the digital volume and tone adjustement? ...22 3.8 Why several loudspeaker drivers? ...22... -
Page 3: The History
Revox - since the foundation more than 50 years ago devoted to the storage and playback of sounds in a quality as high as possible - in recent years has taken care of the limb of the chain supposed as the weakest, in the most intensive and successful way: the loudspeaker. -
Page 4: The Products
Each loudspeaker houses three 130 W power amplifi ers and six drivers. Four paralleled long throw woofers, a midrange speaker, and a treble dome ensure an impressive sound pressure level. Front view... -
Page 5: Prestige Digital
The special and extremely complex construction of the cabinet enables us to reach these slim dimensions. Speaker chassis, specially developed and manufactured according to the newest speaker technology, enable the Prestige Digital to reproduce all kind of music 'purely' and 'naturally' in best possible matter. Incorruptible, neutral and authentic, that's the way this speaker converts the digital signals into acoustic vibrations. -
Page 6: Dlc-2
Power supply is ensured by the enclosed power adapter (12V DC, 250 mA). The DLC-2 and the Revox Exception hi-fi system are two of a kind. If you want the two to act as one system, connect the plug on the end of the DLC-2 lead (back panel) to any Revox link socket of the Exception hi-fi... -
Page 7: Technical Details
Technical details Digital-Active Loudspeakersystem - whats' that? The Revox digital-active loudspeakersystems consist of three parts: 1. A loudspeaker box housing with specially built, high-quality loudspeaker drive units. 2. A digital signal processor (DSP) by Motorola, embedded in an electronic unit, for all digital signal processing. -
Page 8: What Is Delay Compensation By Means Of Digital Technology
By means of digital technology, Revox is now in a position to ensure a consistent signal processing time for all frequencies. When using a digital crossover network, distortions, which a passive or analogue active crossover network would cause, are compensated for as well as delays which are due to the loudspeaker drivers. -
Page 9: Graphic To Show The Sound Distribution At Different Speaker Systems
A pulse does no longer give rise to many decreasing vibrations but to one single oscillation. The Revox Digital-Active Loudspeakersystems offer an unequalled, precise reproduction of music which is refl ected by full bass, crisp mid-range, and brilliant treble. -
Page 10: Why An Extensive Bracing Of The Cabinet
Monitoring of electrical and thermal parameters At Revox, the quality of the loudspeakers is permanently monitored. Each Digital- Active Loudspeakersystem undergoes a 14 hours burn-in test before shipment. To ensure that the electrical requirements are fulfi lled, our manufacturing department works with sophisticated computer measuring equipment. -
Page 11: The Digital Sources, Recommendations
The digital sources, recommendations Exception CD-Player E 426 The E 426 CD-Player is a user-friendly top loader that allows you to change CDs easily and quickly. As it carries latest generation Hall motor drives, there are no mechanical infl uences while the discs are read, which makes the E 426 a lifelong companion. - Page 12 SCHWEIZ: Revox Schweiz AG, CH-8105 Regensdorf, Althardstrasse 146, Telefon +41 1 871 66 11, Fax +41 1 871 66 19 DEUTSCHLAND: Revox GmbH, D-78048 VS-Villingen, Am Krebsgraben 15 , Telefon +49 7721 8704 0, Fax +49 7721 8704 29 Zentralservice: Revox GmbH, D-78048 VS-Villingen, Am Krebsgraben 15 , Telefon + 49 7721 8704 43, Fax +49 7721 8704 49 e-mai: info@revox.de...
