Electrical Parts List - Sony SAVA-29 Service Manual

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• CAPACITORS:
uF: µF
Ref. No. Part No. Description
A-4414-392-A DISPLAY BOARD, COMPLETE
*
************************
4-991-276-01 HOLDER, FL TUBE
*
< CAPACITOR >
C501 1-124-261-00 ELECT
C502 1-124-261-00 ELECT
C503 1-164-159-21 CERAMIC
C504 1-164-159-21 CERAMIC
C505 1-164-159-21 CERAMIC
C506 1-126-177-11 ELECT
C507 1-104-905-11 CAPACITOR
C508 1-164-159-21 CERAMIC
C509 1-124-465-00 ELECT
C510 1-164-159-21 CERAMIC
C512 1-164-159-21 CERAMIC
C513 1-126-154-11 ELECT
C514 1-126-177-11 ELECT
< CONNECTOR >
* CN152 1-568-867-11 SOCKET, CONNECTOR 25P
* CN501 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P
< DIODE >
D501 8-719-991-33 DIODE 1SS133T-77
D502 8-719-991-33 DIODE 1SS133T-77
D503 8-719-991-33 DIODE 1SS133T-77
D506 8-719-991-33 DIODE 1SS133T-77
D507 8-719-991-33 DIODE 1SS133T-77
< FILTER >
FL501 1-517-673-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC501 8-759-532-57 IC uPD78043FGF-046-3B9
IC502 8-759-165-81 IC PST600D-T
< COIL >
L501 1-408-080-00 INDUCTOR
< TRANSISTOR >
Q501 8-729-119-79 TRANSISTOR 2SC2785-FEK
Q504 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q505 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q506 8-729-900-63 TRANSISTOR DTA124ES

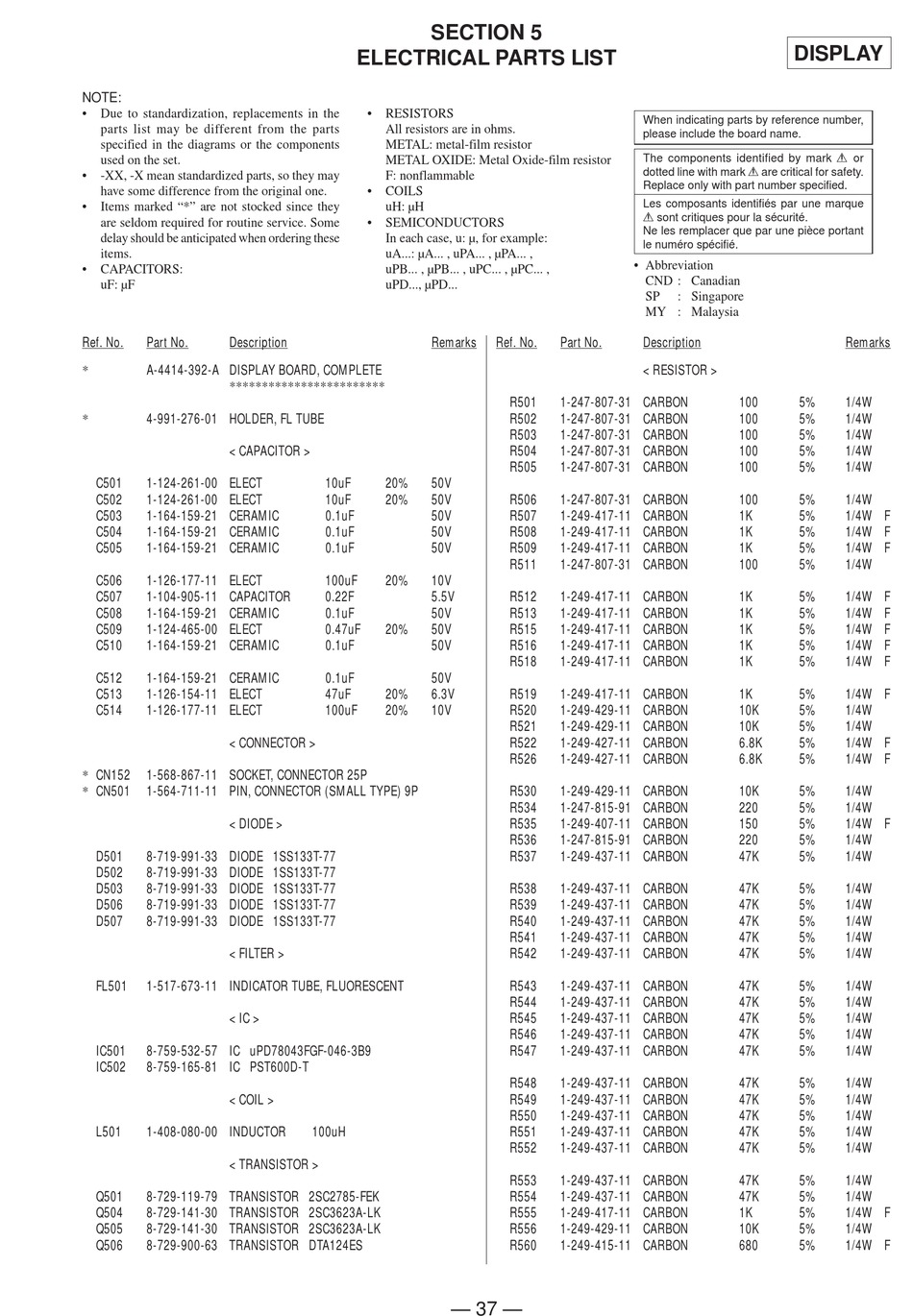

SECTION 5

ELECTRICAL PARTS LIST

• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
Remarks
10uF 20% 50V
10uF 20% 50V
0.1uF 50V
0.1uF 50V
0.1uF 50V
100uF 20% 10V
0.22F 5.5V
0.1uF 50V
0.47uF 20% 50V
0.1uF 50V
0.1uF 50V
47uF 20% 6.3V
100uF 20% 10V
100uH
— 37 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
CND : Canadian
SP
MY : Malaysia
Ref. No. Part No. Description
< RESISTOR >
R501 1-247-807-31 CARBON
R502 1-247-807-31 CARBON
R503 1-247-807-31 CARBON
R504 1-247-807-31 CARBON
R505 1-247-807-31 CARBON
R506 1-247-807-31 CARBON
R507 1-249-417-11 CARBON
R508 1-249-417-11 CARBON
R509 1-249-417-11 CARBON
R511 1-247-807-31 CARBON
R512 1-249-417-11 CARBON
R513 1-249-417-11 CARBON
R515 1-249-417-11 CARBON
R516 1-249-417-11 CARBON
R518 1-249-417-11 CARBON
R519 1-249-417-11 CARBON
R520 1-249-429-11 CARBON
R521 1-249-429-11 CARBON
R522 1-249-427-11 CARBON
R526 1-249-427-11 CARBON
R530 1-249-429-11 CARBON
R534 1-247-815-91 CARBON
R535 1-249-407-11 CARBON
R536 1-247-815-91 CARBON
R537 1-249-437-11 CARBON
R538 1-249-437-11 CARBON
R539 1-249-437-11 CARBON
R540 1-249-437-11 CARBON
R541 1-249-437-11 CARBON
R542 1-249-437-11 CARBON
R543 1-249-437-11 CARBON
R544 1-249-437-11 CARBON
R545 1-249-437-11 CARBON
R546 1-249-437-11 CARBON
R547 1-249-437-11 CARBON
R548 1-249-437-11 CARBON
R549 1-249-437-11 CARBON
R550 1-249-437-11 CARBON
R551 1-249-437-11 CARBON
R552 1-249-437-11 CARBON
R553 1-249-437-11 CARBON
R554 1-249-437-11 CARBON
R555 1-249-417-11 CARBON
R556 1-249-429-11 CARBON
R560 1-249-415-11 CARBON
DISPLAY
: Singapore
Remarks
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
1K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
100 5% 1/4W
1K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
10K 5% 1/4W
10K 5% 1/4W
6.8K 5% 1/4W F
6.8K 5% 1/4W F
10K 5% 1/4W
220 5% 1/4W
150 5% 1/4W F
220 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
47K 5% 1/4W
1K 5% 1/4W F
10K 5% 1/4W
680 5% 1/4W F
