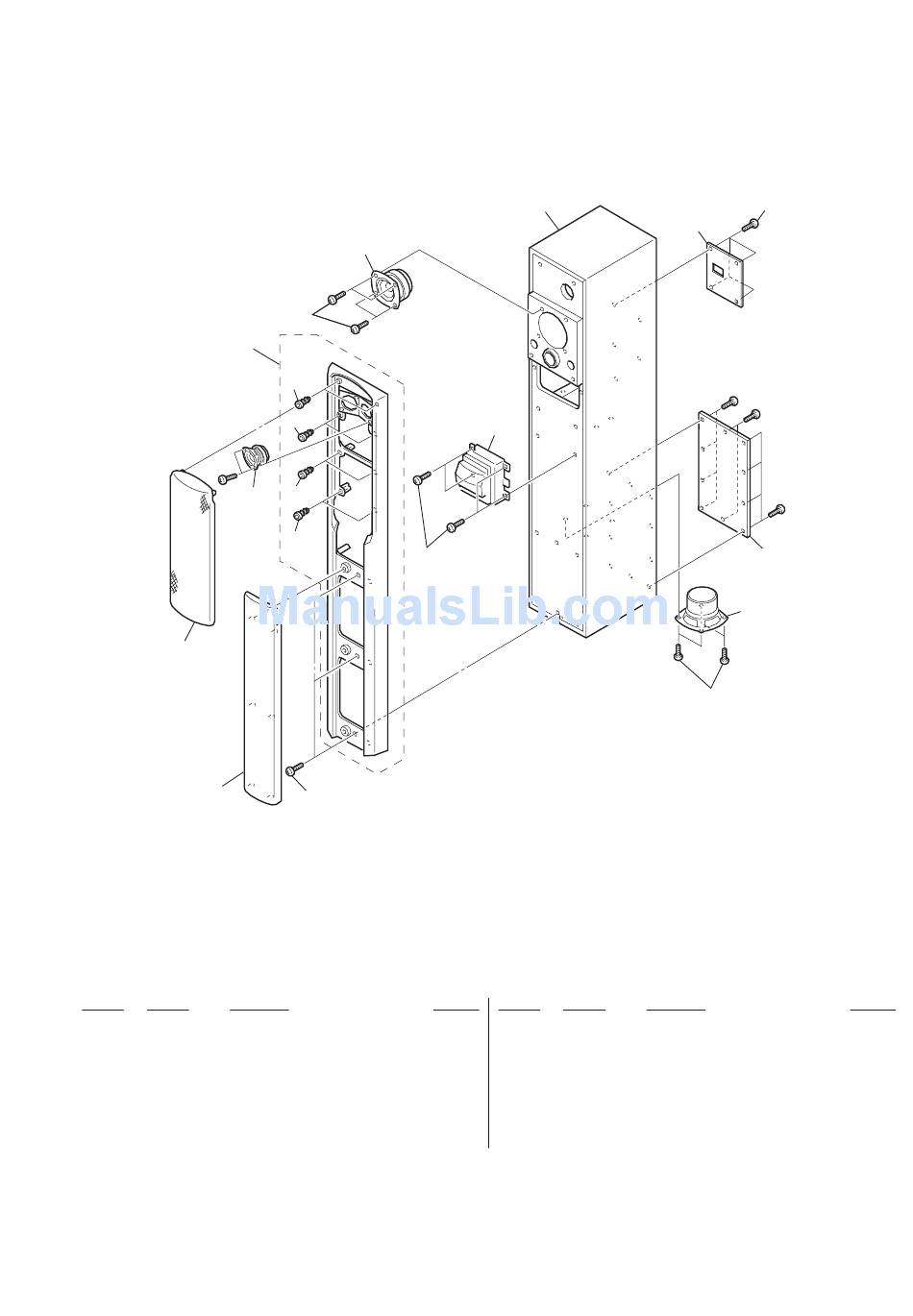

4-2. SYSTEM (R) ASSY

55
#1
53
52
51
Ref. No. Part No. Description
51 4-991-883-01 FRAME, ORNAMENT
52 X-4948-752-1 FRAME (R) ASSY, GRILLE
53 1-505-681-11 SPEAKER (5cm)
54 4-951-733-01 CATCHER
55 X-4948-623-1 PANEL ASSY, FRONT
4-914-430-11 SCREW (4 × 20), TAPPING
56
57 1-505-680-11 SPEAKER (10cm)
57
56 56
54
54
54
54
56
56
Remarks
— 33 —
58
63
Ref. No. Part No. Description
* 58 A-4411-167-A CABINET (R) ASSY, SPEAKER
* 59 4-210-649-01 PANEL (R), BACK
4-929-125-01 SCREW (M4 × 16), TAPPING
60
61 4-973-511-21 COVER (W)
62 1-505-679-11 SPEAKER (13cm)
63 X-4948-709-2 PANEL (R) ASSY
60
59
#5
#5
#5
61
62
56
Remarks
