SAVA-29

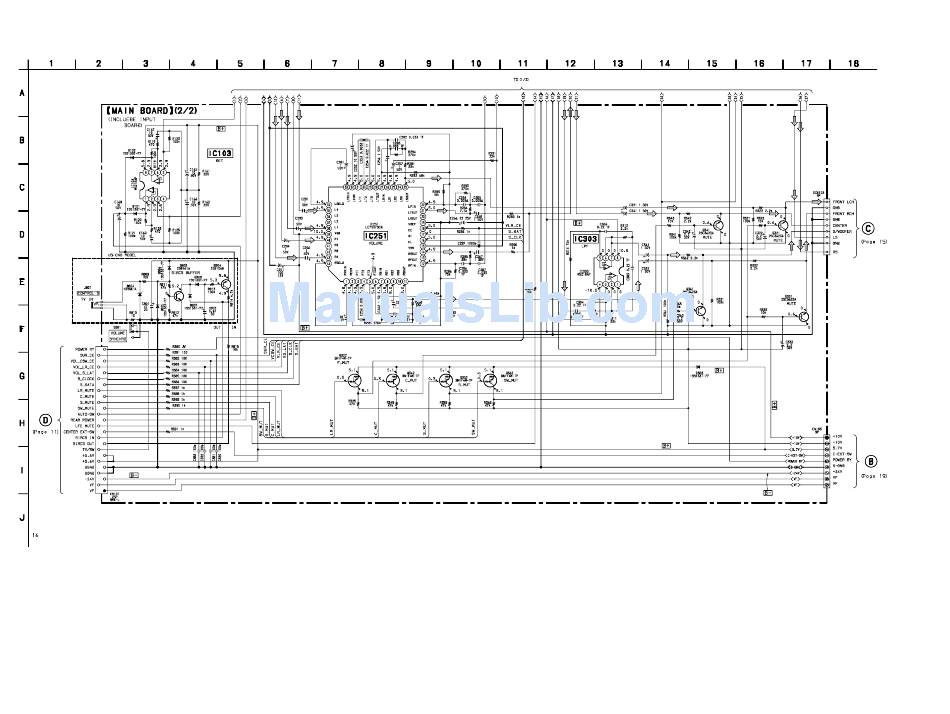

3-12. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) —

• See page 30 for IC Block Diagrams.

— 28 —

— 27 —
