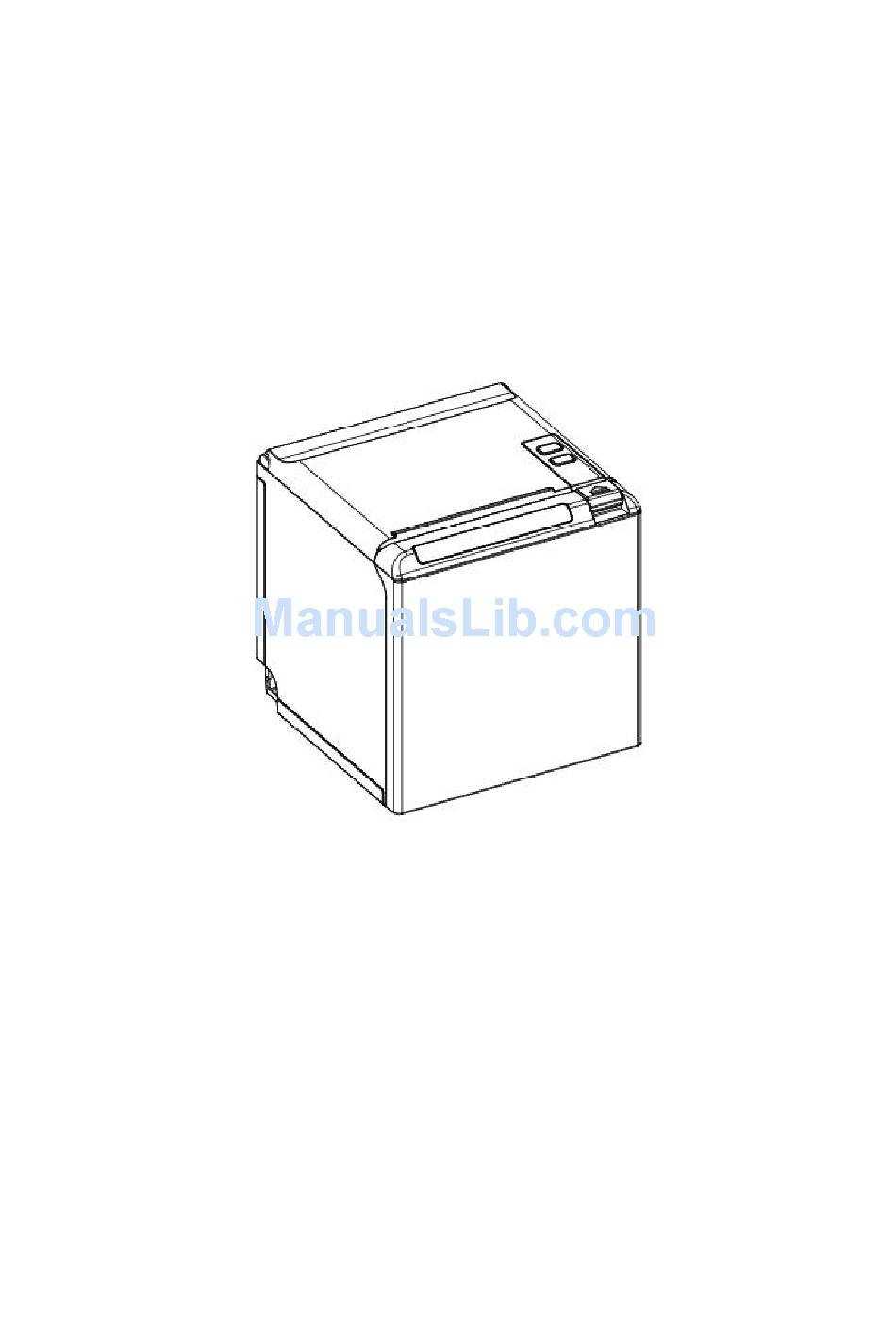

- Page 1 Desktop POS Printer POS80D User Manual...
- Page 2 POS80D User Manual REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2017.05.15 1.First edition Wu Zhenrong Yang Kaiqu Lin Yang...
-
Page 3: Table Of Contents
POS80D User Manual Content Statement............................... 1 Important Safety Instructions.........................2 1 OVERVIEW............................3 1.1 Introductions..........................3 1.2 The Main Features........................3 2 GETTING STARTED..........................4 2.1 Packing List..........................4 2.2 Appearance and Components....................5 3 SPECIFICATION.............................6 3.1 Printer Specification......................... 6 3.2 Printing Media Specification....................8 3.2.1 Continuous Thermal Paper Specification.............. -
Page 4: Statement
POS80D User Manual Statement Copyright This manual is printed in 2017. 1.0 Version. Warnings This must be complied with in order to avoid any damage to the human body and to the equipment. This is showing the important information and tips for the printer operating. -
Page 5: Important Safety Instructions
POS80D User Manual Important Safety Instructions 1. Safety Warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. Warnings: Do not touch the printer head and connector in case static damage the printer head. -
Page 6: Overview

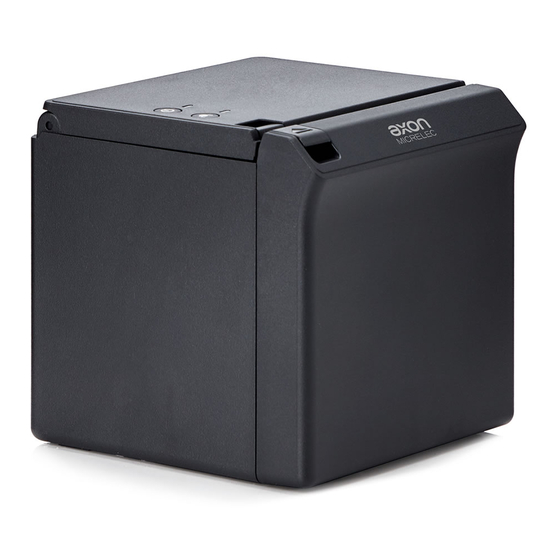

POS80D User Manual 1 OVERVIEW 1.1 Introductions POS80D is a thermal receipt printer, featured by high print quality, high print speed, high stability, etc. It can be used in commercial POS system, food industry and occasions which need real-time field print receipts. -
Page 7: Getting Started
POS80D User Manual 2 GETTING STARTED 2.1 Packing List After receiving your printer, please check for possible shipping damage: 1. Inspect the outside of both the box and the printer for possible damage. 2. Check whether you have received the following accessories together with the printer, if there is any items missing, please contact your local dealer. -
Page 8: Appearance And Components
POS80D User Manual 2.2 Appearance and Components Front Rear Inside... -
Page 9: Specification
POS80D User Manual 3 SPECIFICATION 3.1 Printer Specification Table3-1 General Specification (1/2) Item Parameter Printing Method Direct thermal line printing Resolution 203dpi，8dots/mm Printing Width 72mm Printing Parameter Print Speed 250mm/s Interface USB, Serial, Ethernet, Cash drawer Print density Adjustable from level 1 to level 4... - Page 10 POS80D User Manual Table3-1 General Specification(Continued) (2/2) Item Parameter Input AC100V-240V Power Supply 2.5A Output Paper type Specified Thermal Paper Paper width Paper 0.056～0.13mm thickness Paper Roll paper Max. OD ф83mm diameter Easy-loading structure of forward open cover or upward open cover...
-
Page 11: Printing Media Specification
POS80D User Manual 3.2 Printing Media Specification 3.2.1 Continuous Thermal Paper Specification Paper Type : Specified Thermal Paper Paper Width Paper Outer Diameter : Max. 83 mm Paper Thickness : 0.056 ～ 0.13m Paper Type Manufacturer FD210,PD150R,PD160R OJI Paper CO.,LTD. -
Page 12: Printing And Cutting Position
POS80D User Manual 3.3 Printing and Cutting Position 3.3.1 Printing position mm Print Paper mm Print Paper 3.3.2 Cutting Position Type Paper Cutting Position(L1) POS80D 11.6mm... -
Page 13: Installation And Usage
POS80D User Manual 4 INSTALLATION AND USAGE 4.1 Media Loading 4.1.1 Paper Confirmation 1) When using 80mm(width) roll paper, take down the paper guide of both sides. 2) When using 58mm(width) roll paper, insert the paper guide to each side. - Page 14 POS80D User Manual 4. Pull out some roll paper, and close the printer cover. 5. Tear the extra paper in the direction of printer.
-
Page 15: Paper Installation (Forward Paper-Out Direction)
POS80D User Manual 4.1.2 Paper Installation (Forward Paper-out Direction) 1. Remove the bottom cover and rear cover, after removing, the location of these two covers can be swapped and re-installed, as below showed. Remove the used roll paper core, if any. - Page 16 POS80D User Manual 3. Pull out some roll paper, and close the printer cover. 4. Tear the extra paper in the direction of printer. Notes： ► According to the paper size to adjust the paper guide; ► Make sure the paper inside is at tight status, or it will issue paper or other obstacle.
-
Page 17: Led Indication And Beeper
POS80D User Manual 4.2 LED Indication and Beeper Function specification of indicated light and beeper. Name Status Specification POWER LED The printer work well (Blue) The printer does not work Flashing The printer in an error state ERROR LED (Red) -
Page 18: Power Connection
POS80D User Manual 4.3 Power Connection 1) Put the cable plug of power adapter facing up at flat side, insert the rear of the printer power connector; 2) Turn the power adapter input power; 3) Pay attention about disconnecting or connect the Power adapter at right method, or likely to cause damage. -
Page 19: Interface Cable Connection
POS80D User Manual Notes： ► Please only use the power adapter recommended by supplied or equivalent products; ► When disconnecting the power adapter plug, handheld plug connector housing, to avoid the pulling on the cable in force; ► Avoid drag the power adapter cable, otherwise it will damage the cables, causing fire and shock;... -
Page 20: Print Test
POS80D User Manual 4.6 Print Test 4.6.1 Print Self-Test The self-test checks the printer’s current settings, status and whether the printer has any problem. 1.Make sure the power is connecting and paper is loading properly. 2.Make sure the printer is off and top cover closes properly. -
Page 21: Interfaces
POS80D User Manual 5 INTERFACES POS80D supports cash drawer interface and many other various communicate interfaces, such as Serial interface, USB interface, Ethernet interface. 5.1 USB Figure 5-1 SIGNAL NAME VBUS 5.2 Serial Interface Figure 5-2 SIGNAL NAME... -
Page 22: Ethernet Interface
POS80D User Manual 5.3 Ethernet Interface PIN NO. Signal Name 5.4 Cash Drawer Interface Figure 5-4 PIN NO. Signal Name Drawer 1 DRSW Drawer 2 Electrical characteristics Driving voltage：DC 24 V Driving current：Maximum 0.8 A ( In 510 ms) ... -
Page 23: Power Supply Interface
POS80D User Manual 5.5 Power Supply Interface Figure 5-5 PIN No. Signal Name +24V SHELL Printer end-Unetop DC-002 or similar products, user end-Unetop DC-002 or similar products. -
Page 24: Troubleshooting
POS80D User Manual 6 TROUBLESHOOTING Your printer is very reliable, but occasionally problems may occur. This chapter provides information on some common problems you may encounter and how to solve them. If you encounter problems that you can not resolve, contact your dealer for assistance. -
Page 25: Problems Emerge During The Paper Cutting
POS80D User Manual 6.4 Problems Emerge During The Paper Cutting Problem Description Probable Reason Resolution Cutter abrasion, Replace the cutter insufficient cutting Worm gear and worm Cutter jam, the Replace the worm gear and worm wheel wheel abrasion movable cutter... -
Page 26: Printer Cleaning And Maintenance
POS80D User Manual 7 PRINTER CLEANING AND MAINTENANCE Print quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※...
