HA17458 Series
Dual Operational Amplifier
Description
HA17458 is dual operational amplifiers which provides internal phase compensation and high performance. It can be
applied widely to measuring control equipment and to general use.
Features
High voltage gain: 100dB (Typ)
Wide output amplitude: ±13V (Typ) [at R
Protected from output shortcircuit
Internal phase compensation
Ordering Information
Type No.
HA17485FP
HA17458F
HA17458
HA17458PS
Rev.1.00 Jun 15, 2005 page 1 of 8
2k ]
L
Application
Industrial use
Commercial use
Commercial use
Industrial use
(Previous: ADE-204-040)
Package Code (Previous Code)
PRSP0008DE-B (FP-8DGV)
PRSP0008DE-B (FP-8DGV)
PRDP0008AF-A (DP-8B)
PRDP0008AF-A (DP-8B)
REJ03D0680-0100
Rev.1.00
Jun 15, 2005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Renesas HA17458 Series
- Page 1 HA17458 Series Dual Operational Amplifier Description HA17458 is dual operational amplifiers which provides internal phase compensation and high performance. It can be applied widely to measuring control equipment and to general use. Features High voltage gain: 100dB (Typ) Wide output amplitude: ±13V (Typ) [at R...
-
Page 2: Pin Arrangement
HA17458 Series Pin Arrangement Circuit Schematic (1/2) Vin(+) Vin( ) Rev.1.00 Jun 15, 2005 page 2 of 8 Vout1 Vin( )1 Vout2 Vin(+)1 Vin( )2 Vin(+)2 (Top View) to V to V to V Vout... -
Page 3: Absolute Maximum Ratings
HA17458 Series Absolute Maximum Ratings Item Symbol Supply voltage Intput voltage Differential input voltage IN(diff) Power dissipation Operating temperature Topr Storage temperature Tstg Notes: 1. These are the allowable values up to Ta = 45 °C. Derate by 8.3mW/°C above that temperature. -
Page 4: Characteristic Curves
HA17458 Series Characteristic Curves Input Offset Voltage vs. Ambient Temperature Ambient Temperature Ta ( C) Input Offset Current vs. Ambient Temperature Ambient Temperature Ta ( C) Rev.1.00 Jun 15, 2005 page 4 of 8 = + 15 V = 15 V <... - Page 5 HA17458 Series Voltage Gain vs. Ambient Temperature Ambient Temperature Ta ( C) Power Dissipation vs. Supply Voltage ±3 ±6 ±9 Supply Voltage V Rev.1.00 Jun 15, 2005 page 5 of 8 = + 15 V = 15 V = 2 k...
- Page 6 HA17458 Series Rev.1.00 Jun 15, 2005 page 6 of 8 Voltage Gain vs. Frequency 10 k Frequency (Hz) Phase Angle vs. Frequency 10 k 30 k Frequency (Hz) = +15 V = 15 V Ta = 25 C = 2 k...
- Page 7 HA17458 Series Maximum Output Voltage Swing vs. Frequency Frequency f (Hz) Voltage Follower Large Signal Pulse Response Output Time ( s) Rev.1.00 Jun 15, 2005 page 7 of 8 = +15 V = 15 V Ta = 25 C = 10 k...
-
Page 8: Package Dimensions
HA17458 Series Package Dimensions JEITA Package Code RENESAS Code P-DIP8-6.3x9.6-2.54 PRDP0008AF-A 0.89 JEITA Package Code RENESAS Code P-SOP8-4.4x4.85-1.27 PRSP0008DE-B Index mark Rev.1.00 Jun 15, 2005 page 8 of 8 Previous Code MASS[Typ.] DP-8B 0.51g Previous Code MASS[Typ.] FP-8DGV 0.1g Dimension in Millimeters... - Page 9 Notes regarding these materials 1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corp. product best suited to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corp. or a third party.
Need help?
Do you have a question about the HA17458 Series and is the answer not in the manual?
Questions and answers

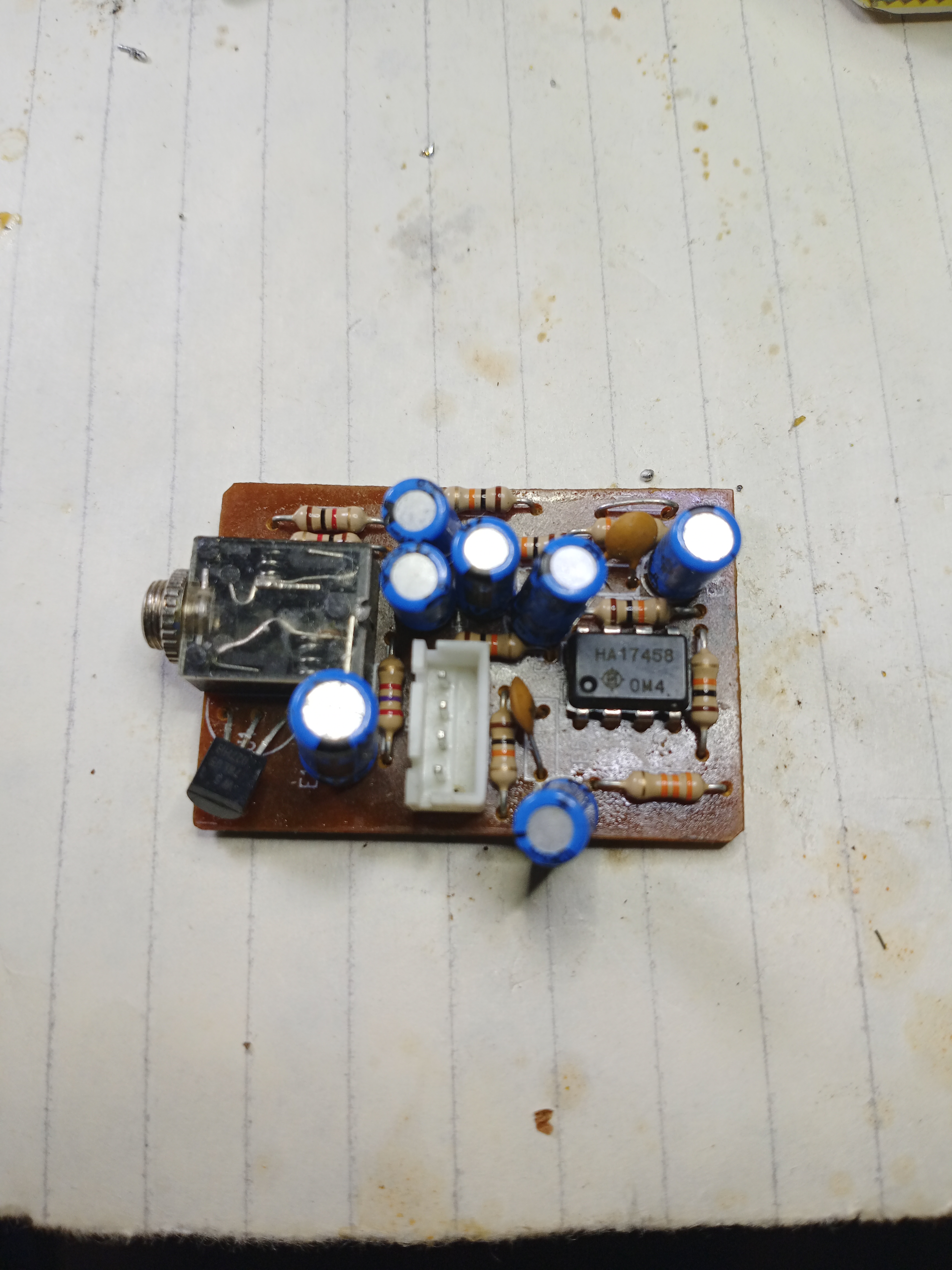

Может ли микросхема питаться от плюс пяти вольт в усилителе для наушников
