Remington 100271-01 Owner's Manual

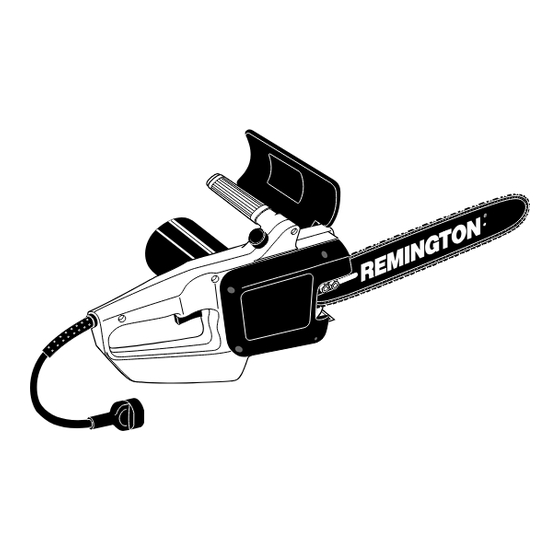

Electric chain saw type el-4
Hide thumbs Also See for 100271-01:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
ELECTRIC CHAIN SA W
Read and understand this manual before assembling or operating this chain saw.
Improper use of saw can cause severe injury. Keep this manual for future reference.
SECTION
Symbol Information ............................................................ 2
Safety Warnings ................................................................. 3
Before Operating Chain Saw ....................................... 3
Kickback ...................................................................... 3
Pushback and Pull-in ................................................... 4
Chain Saw Operation .................................................. 4
Maintenance and Storage of Chain Saw ..................... 4
Product Identification ......................................................... 5
Chain Saw Names and Terms ............................................. 5
Unpacking ........................................................................... 6
Assembly ............................................................................ 6
Saw Chain Tension Adjustment ......................................... 7
Filling Oil Tank .................................................................. 7
Operating Chain Saw .......................................................... 8
Extension Cords .......................................................... 8
Oiling Chain ................................................................ 8
OWNER'S MANUAL
MODEL
100271-01
230V
TYPE
EL-4
IMPORTANT
CONTENTS
PAGE
~
50Hz
1450W
1995
SECTION
Cutting With the Chain Saw ........................................ 8
Chain Brake ................................................................. 8
Trimming a Tree .......................................................... 9
Felling a Tree .............................................................. 9
Limbing a Tree ............................................................ 10
Bucking a Log ............................................................. 11
Cleaning and Maintenance ................................................. 12
Cleaning Saw Body ..................................................... 12
Care of Guide Bar ....................................................... 12
Sharpening Your Saw Chain ....................................... 12
Recycling ........................................................................... 14
Storage ............................................................................... 14
Replacement Parts .............................................................. 14
Troubleshooting .................................................................. 15
Warranty Information ......................................... Back Cover
®
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Remington 100271-01

Summary of Contents for Remington 100271-01

  • Page 1: Table Of Contents

    Unpacking ... 6 Assembly ... 6 Saw Chain Tension Adjustment ... 7 Filling Oil Tank ... 7 Operating Chain Saw ... 8 Extension Cords ... 8 Oiling Chain ... 8 OWNER’S MANUAL 100271-01 230V 50Hz 1450W 1995 EL-4 IMPORTANT CONTENTS...

  • Page 2: Symbol Information

    INFORMATION SYMBOLS Read Instruction Manual Do Not Expose to Rain or Use in Wet Conditions Remove Plug Immediately if Cable is Damaged or Hold Chain Saw with Both Hands Beware of Kickback Hearing and Eye Protection Must Be Worn Safety Information Warnings Appears Throughout This Manual Pay close attention to them.

  • Page 3: Safety Warnings

    SAFETY WARNINGS WARNING ICON G 001 Read and understand all Safety Warnings on pages 3 and 4. Improper use of this chain saw can cause severe injury or death from fire, electrical shock, body contact with moving chain, or falling wood. BEFORE OPERATING CHAIN SAW 1.

  • Page 4: Pushback And Pull-In

    SAFETY WARNINGS Continued • Never try cutting through two logs at same time. Only cut one log at a time. • Do not bury guide bar nose or try plunge cut (boring into wood using guide bar nose). • Watch for shifting of wood or other forces that may pinch chain.

  • Page 5: Product Identification

    4. When servicing, use only identical replacement parts. 5. Always store chain saw • in a high or locked place, out of children’s reach • in a dry place • in a carrying case or with scabbard over guide bar Keep this manual for reference.

  • Page 6: Unpacking

    UNPACKING Remove all items from carton. Check all items for any shipping damage. If you find any damage or if any parts are missing, promptly inform dealer where you bought chain saw. ASSEMBLY WARNING WARNING ICON G 001 Cutting edges on chain are sharp. Use protective gloves when handling chain.

  • Page 7: Saw Chain Tension Adjustment

    SAW CHAIN TENSION ADJUSTMENT WARNING WARNING ICON G 001 Unplug chain saw from power source before adjusting saw chain tension. WARNING WARNING ICON G 001 Cutting edges on chain are sharp. Use protective gloves when handling chain. WARNING WARNING ICON G 001 Maintain proper chain tension always.

  • Page 8: Operating Chain Saw

    OPERATING CHAIN SAW WARNING WARNING ICON G 001 Read and understand this owner’s manual before operating this saw. Make certain you read and understand all Safety Warnings. Improper use of this chain saw can cause severe injury or death from fire, electrical shock, or body contact with moving chain, or falling wood.

  • Page 9: Trimming A Tree

    OPERATING CHAIN SAW Continued TRIMMING A TREE (Pruning) WARNING WARNING ICON G 001 Avoid kickback. Kickback can result in severe injury or death. See Kickback , page 3 to avoid risk of kickback. WARNING WARNING ICON G 001 Do not operate chain saw while •...

  • Page 10: Limbing A Tree

    OPERATING CHAIN SAW Continued Felling Procedure Felling Notch A properly placed felling notch will determine direction tree will fall. Place felling notch on side of tree in direction you want tree to fall (see Figure 13). Follow directions below to create a felling notch.

  • Page 11: Bucking A Log

    OPERATING CHAIN SAW Continued BUCKING A LOG WARNING WARNING ICON G 001 Avoid kickback. Kickback can result in severe injury or death. See Kickback , page 3 to avoid risk of kickback. WARNING WARNING ICON G 001 • If on slope, make sure log will not roll down hill.

  • Page 12: Cleaning And Maintenance

    CLEANING AND MAINTENANCE NOTICE Below are instructions for servicing your chain saw. Any servicing not mentioned below should be done by an authorized service person. CLEANING SAW BODY WARNING WARNING ICON G 001 Unplug chain saw from power source before servicing.
  • Page 13 CLEANING AND MAINTENANCE Continued Sharpening Cutters Use file guide for 30° filing. 1. Adjust chain for proper tension (see Saw Chain Tension Adjustment, page 7). 2. Clamp guide bar in vise to hold saw steady. Note: Do not clamp chain. 3.

  • Page 14: Recycling

    CLEANING AND MAINTENANCE Continued Replacing Saw Chain Replace chain when cutters are too worn to sharpen or when chain breaks. Only use replacement chain noted in this manual. Always include new drive sprocket when replacing chain. This will maintain proper driving of chain. Note: For proper chain and drive sprocket, see Replacement Parts, below.

  • Page 15: Troubleshooting

    Unplug chain saw from power source before servicing. Severe injury or death could occur from electrical shock or body contact with moving chain. OBSERVED FAULT Saw runs, but does not cut. Saw does not cut unless heavily forced. Cutting produces only sawdust with few large chips.

  • Page 16: Warranty Information

    Model ___________________________________ Serial No. ________________________________ Date Purchased ___________________________ Always specify model and serial numbers when writing the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied. This product is warranted to be free from defects in materials and workmanship for six (6) months from the date of first purchase when operated and maintained in accordance with instructions.
