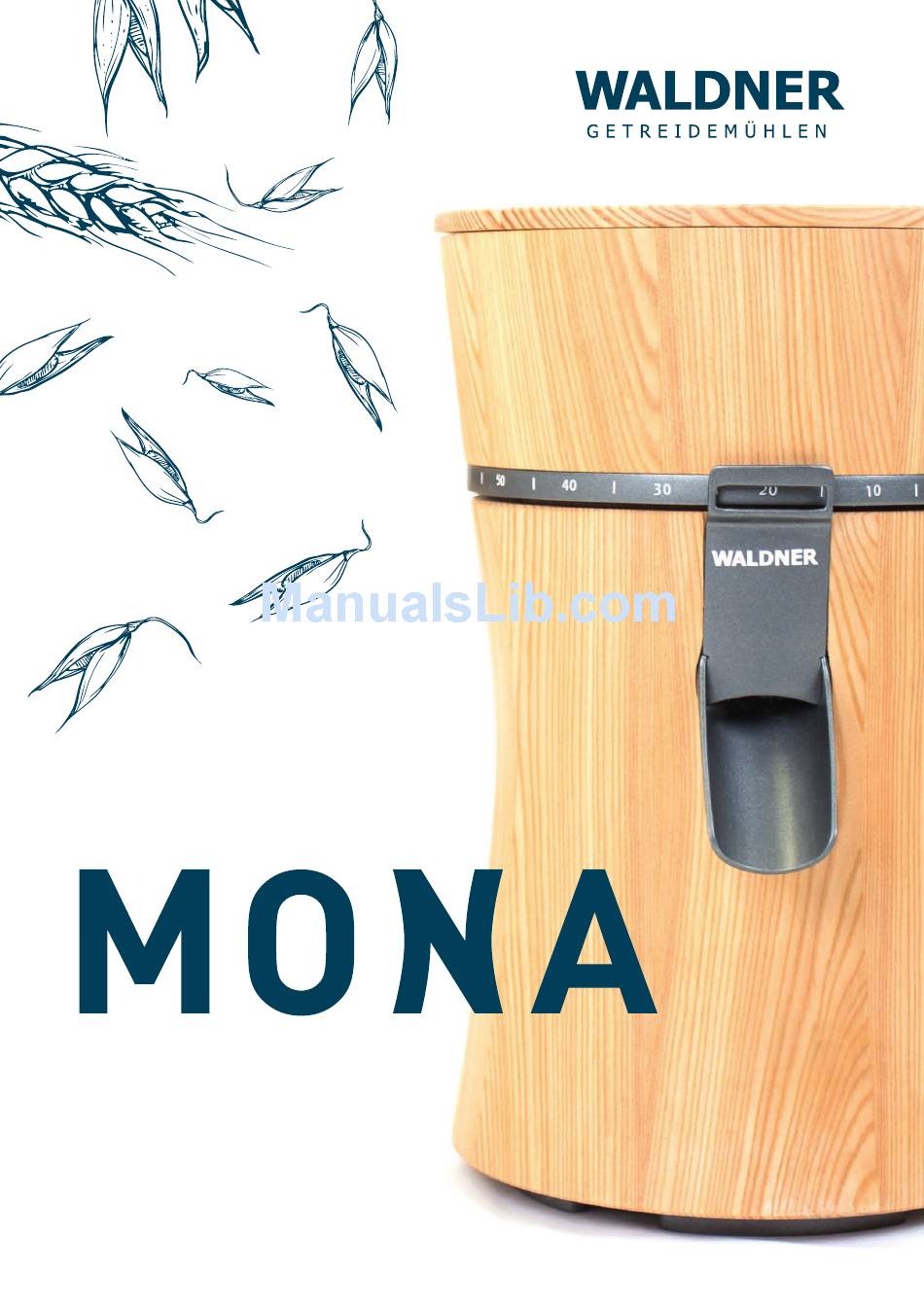

  • Page 1 USER GUIDE & CERTIFICATE OF WARRANTY...
  • Page 2 GETREIDEMÜHLEN WALDNER BIOTECH GMBH Kärntnerstraße 62, A-9900 Lienz/Osttirol +43 (0)4852 70 200, offi ce@waldner-biotech.at www.waldner-biotech.at design: aberjung.com photos: ramonawaldner.com...
  • Page 3 We trust in domestic woods and handcraft 100 % made in Tyrol.

  • Page 4: General Requirements

    GENERAL REQUIREMENTS Device can be used by persons with reduced physical, sen- sory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and under- stand the hazards involved.
  • Page 5 GRAIN MILL MONA – TECHNICAL DATA Type of wood larch, stone pine Grinding output fine 120 g/min. Diameter millstone 90 mm Millstone white corundum and ceramic Grinding chamber self-cleaning Hopper capacity 1.000 g Dimensions H/D 32/19 cm Weight 7,5 kg...
  • Page 6 COMPONENTS 1. Cover hopper 6. Locking screw 2. Hopper 7. Safety push-button/mill (not visible) 3. Safety loop (not visible) 8. Marking window 4. Upper and lower millstone 9. Output fl our (not visible) 10. Power switch mill ON/OFF 5. Coarseness scale 11.
  • Page 7 GRAINS Spelt, wheat, millet, rye, corn, rice, chickpea, etc. COARSENESS SETTING FINE TO ROUGH GRAINS AND SEEDS Oat, fl ax seed, soya bean, wild beans, etc. COARSENESS SETTING MEDIUM-FINE TO ROUGH SPICES AND SALTS Fennel, kummel, cilantro, sea salt, etc. Tip: add to grains COARSENESS SETTING FINE TO ROUGH...
  • Page 8 LIVING TR...
  • Page 9 RADITIONS...

  • Page 10: Initial Operation

    INITIAL OPERATION, SETTING OF GRINDER INITIAL OPERATION 1. Place mill on a ground surface. Attention: Never place the mill on a hot surface (eg stovetop) 2. Check if supply voltage corresponds to the required voltage for the device 3. Plug power plug into socket. 4.
  • Page 11 1. Plug power plug 2. Press power switch into socket to „1“. 4. Turn hopper in the 3. Release locking direction of “0” until you screw in order to hear a slight grinding turn hopper sound.
  • Page 12 5. Twist back hopper until 6. Put a bowl under flour the grinding sound disap- output prior to every use pears - this is the finest of the device. coarseness setting. 7. After years of use the millstone may show signs of erosion.
  • Page 13 TROUBLE SHOOTING The device can’t be The flour output switched ON is blocked. REASON REASON Hopper is not completely closed The mill material used was too (safety button has no contact) damp for the desired coarseness. HELP HELP turn hopper in the direction fine Clean hopper and output (see also >fein<...
  • Page 14 PASSIO...
  • Page 15 ON FOR TAIL...
  • Page 16 CLEANING OF MILL Clean housing with a soft, damp towel. Clean grinding chamber with a brush or aspirator. Clean the millstones by grinding roughly rice or corn or by using a brush. Never use sharp items or chemicals for the clea- ning of the housing.
  • Page 17 1. Turn off 2. Clean with a brush hopper or aspirator 3. Put on hopper 4. Start operation as by turning indicated on page 8...

  • Page 18: Warranty Information

    WARRANTY INFORMATION 1. Terms The warranty of this device is 8 years from date of purcha- se (proof of purchase). Any warranty service work will not have an impact on the term. The warranty for spare parts remains intact. 2. Coverage Within said term all defects in materials or workmanship of the device will be covered.
  • Page 19 3. Area of validity Warranty services will be covered in the country of purcha- se. The warranty is solely valid if the device was purchased by our defined chain of distribution. For devices which were purchased in one European Union country and delivered to another European Union country the warranty services are subject to the country’s specific warranty conditions.

  • Page 20: Warranty

    WARRANTY Waldner biotech GmbH grants a warranty of 8 years from date of purchase (proof of purchase) for your device according to following conditions: Type: MONA - Grain mill Waldner biotech GmbH guarantees that this device fulfills within the term of the warranty the purpose of use according to compliance with the user gui- de and to proper care and cleaning.
