Reliance 196296-001 Instruction Manual

Residential gas water heaters not for use in manufactured (mobile) homes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS
PURCHASED. IF YOU ARE UNSUCCESSFUL, PLEASE WRITE TO THE COMPANY LISTED ON THE RATING PLATE ON THE WATER HEATER.
KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE
PRINTED IN THE U.S.A 1004
RESIDENTIAL GAS W
RESIDENTIAL GAS W A A A A A TER HEA
RESIDENTIAL GAS W
RESIDENTIAL GAS W
RESIDENTIAL GAS W
WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.
www.reliancewaterheaters.com

Instruction Manual

NOT FOR USE IN MANUFACTURED (MOBILE) HOMES
•

For Your Safety

AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
1
TER HEA
TER HEA TERS
TER HEA
TERS
TERS
TERS
TER HEA
TERS

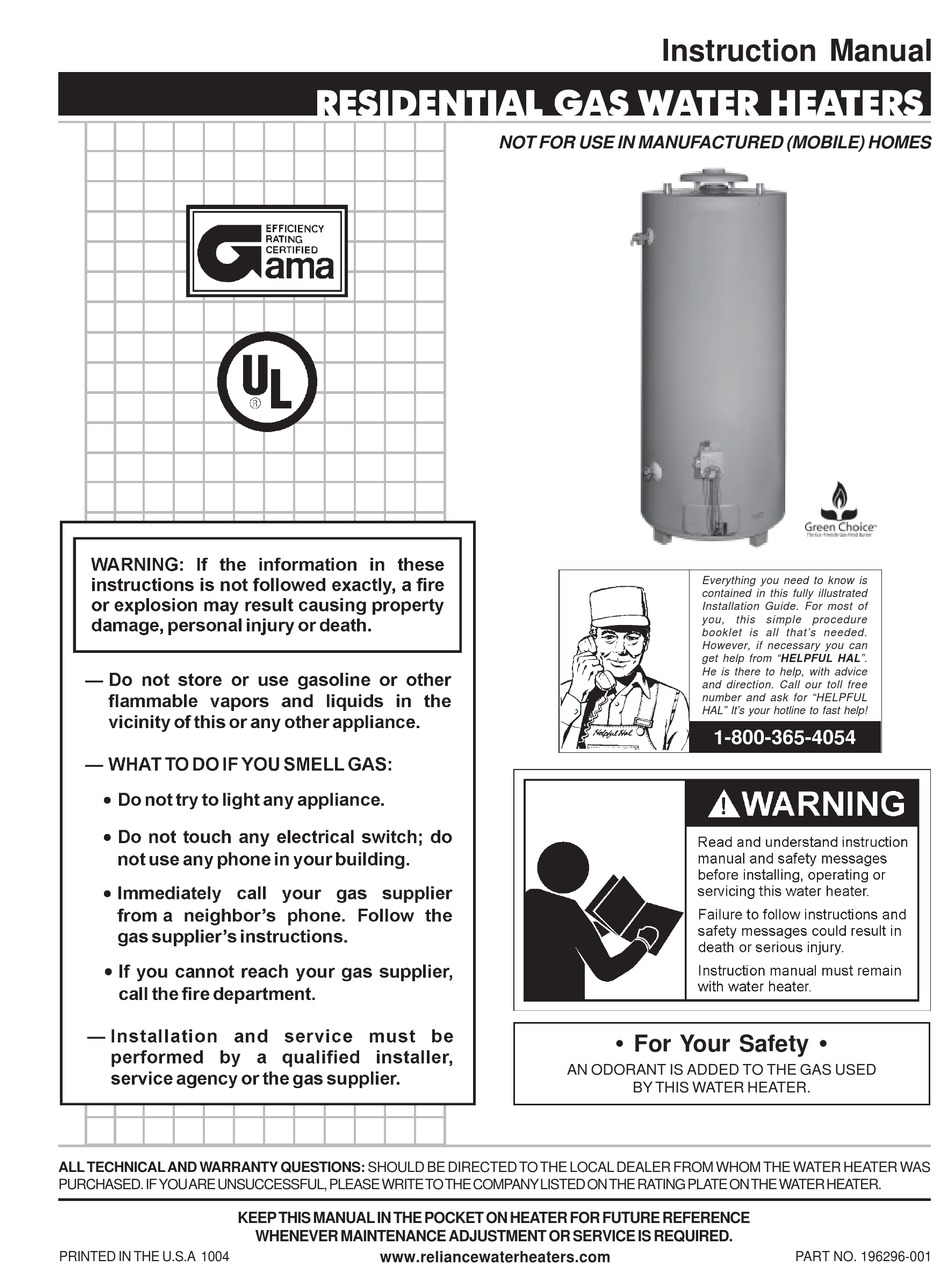

Everything you need to know is
contained in this fully illustrated
Installation Guide. For most of
you, this simple procedure
booklet is all that's needed.
However, if necessary you can
get help from "HELPFUL HAL".
He is there to help, with advice
and direction. Call our toll free
number and ask for "HELPFUL
HAL" It's your hotline to fast help!
1-800-365-4054
•
PART NO. 196296-001
