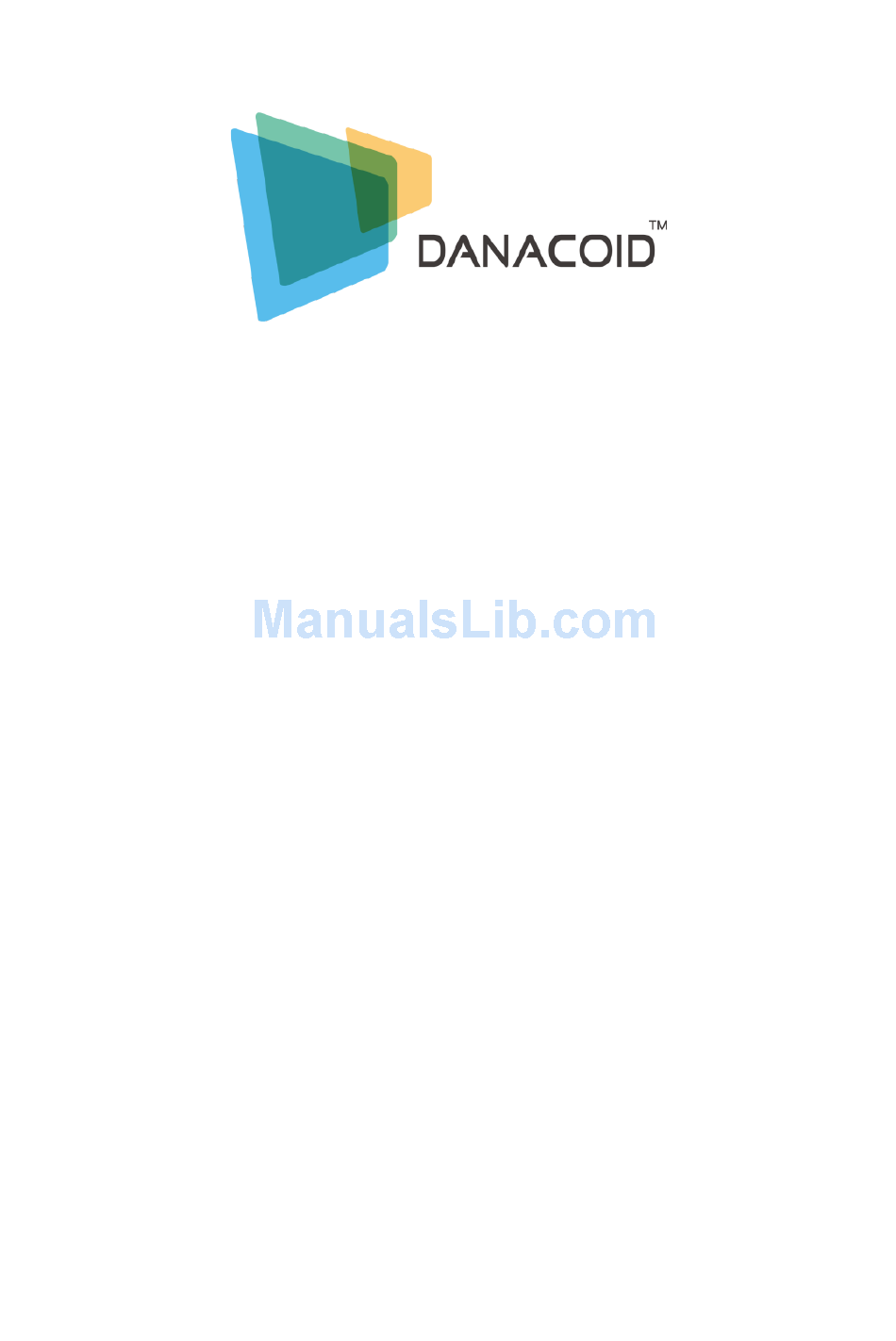

- Page 1 High-definition Input Interface DE-6100HD Instruction Manual Danacoid International Pte Ltd.
- Page 2 I. Product Appearance and Description POWER indicator: The indicator of power supply, which becomes on when the device is electrified ‚ LINK indicator: The indicator of internet access, which becomes on when the cable is well-connected ƒ RUN indicator: The indicator of device running, which becomes on during signal transmission ...
- Page 3 † Power Interface: Connect to power source ‡ RS-232 Interface: RS232 control interface, connected to control devices II. Product Features Full high-definition input interface machine Processing: 24-bit 60-frame image processing Output resolutions: 1024×768~1920x1080@60Hz Up to 16 windows for single node simultaneously Support any window of signal source;...
- Page 4 Support dual-network hardware backup Adopt embedded hardware, ensuring 7*24 stable operation III. Product Specifications Product Model DE-6100HD Output 1-channel DVI interface; 1-channel Interface dual-track stereo output, 3.5mm audio jack Network RJ45 interfaces, 1000Mbps Ethernet Serial 1 D-Sub 9, support RS232 or 485...
- Page 5 IV. System Architecture 1) Confirm that there is DHCP server or router with DHCP functions in the network, so as to allocate legitimate IP addresses to all network devices in the system 2) Set the IP address of MICS server as static, such as 192.168.1.80, which will be beneficial to client login and IIS setting 3) Conduct system connection and construction in...
- Page 6 coding node to the exchange through Cat5e or Cat6 cable 6) All devices are electrified for operation...
