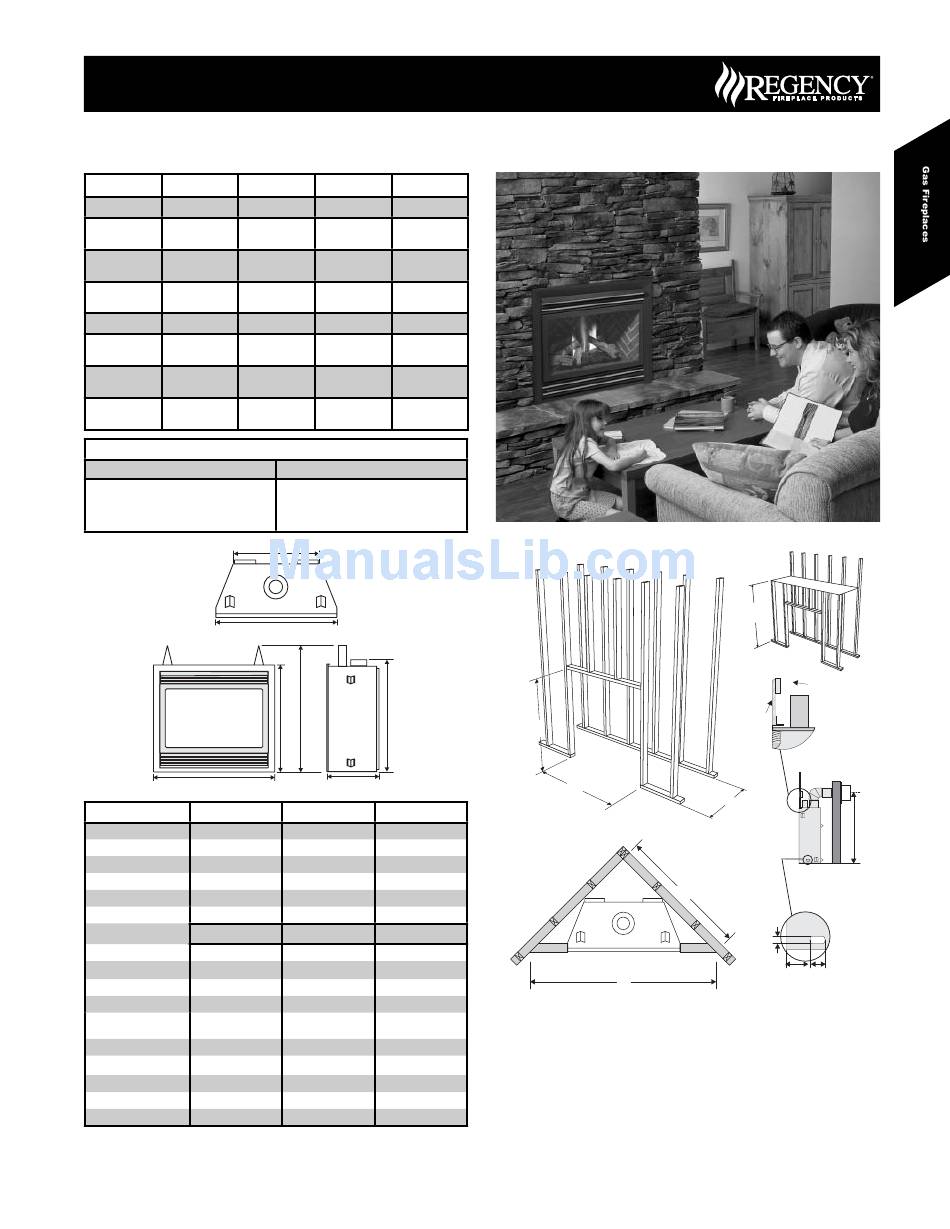

Regency Zero Clearance Direct Vent Gas Fireplace P36-LP4 Specifications

P36 - P36D Zero Clearance Direct Vent Gas Fireplace
Model P36-NG4 P36-LP4
Fuel Type Natural Gas Propane
Minimum Supply 5" W.C. 12" W.C.
Pressure (1.25 kPa) (3.00 kPa)
Manifold 3.8" W.C. 11" W.C.
Pressure - High (0.95 kPa) (2.74 kPa)
Manifold 1.1" W.C. 2.9" W.C.
Pressure - Low (0.27 kPa) (0.72 kPa)
Orifi ce Size #37 DMS #52 DMS
15,500 BTU/h 15,000 BTU/h
Minimum Input
(4.54 kW) (3.96 kW)
30,000 BTU/h 30,000 BTU/h
Maximum Input
(8.79 kW) (8.79 kW)
4" Inner / 6 5/8" 4" Inner / 6 5/8"
Vent Sizing
Outer
Approved Venting Systems
Flex Vent Systems:
Rigid Pipe Vent Systems:
A
Unit Dimensions Description
A Front Face Width
B Rear Firebox Width
C Front Face Height
D Height w/ Standoff
E Unit Depth
F Height to Vent
Framing Dimensions Description
G Framing Width*
*** ***
H Framing Height*
I Framing Depth*
J Corner Wall Length
Corner Facing Wall
K
Width
L Framed Chase Ceiling
M Vent Centerline Height
N Gas Connection Height
O Gas Connection Inset
P Gas Connection Width
*** Important: Framing height requires consideration of the hearth
depth. Dimension H = H + the thickness of installed hearth.
June 2007 Regency Product Specifi cations Book
Gas Fireplaces
P36D-NG1 P36D-LP1
Natural Gas Propane
5" W.C. 12" W.C.
(1.25 kPa) (3.00 kPa)
3.8" W.C. 11" W.C.
(0.95 kPa) (2.74 kPa)
1.1" W.C. 2.9" W.C.
(0.27 kPa) (0.72 kPa)
#37 DMS #52 DMS
15,500 BTU/h 15,000 BTU/h
(4.54 kW) (3.96 kW)
30,000 BTU/h 30,000 BTU/h
(8.79 kW) (8.79 kW)
4" Inner / 6 5/8" 4" Inner / 6 5/8"
Outer Outer Outer
FPI AstroCap™ Flex Vent
Simpson Dura-Vent® Direct Vent GS
American Metal Products Ameri Vent
Security Secure Vent®
Selkirk Direct-Temp.
B
A
D
C
F
E
P36 P36D
36" (914mm) 36" (914mm)
33-1/4" (838mm) 33-1/4" (838mm)
30-1/2" (775mm) 30-1/2" (775mm)
36" (914mm) 37" (940mm)
12-3/4" (324mm) 17-1/8" (435mm)
32-1/2" (826mm) 32-1/2" (826mm)
P36 P36D
36-1/4" (921mm) 36-1/4" (921mm)
***
36-1/4" (921mm) 37-1/4" (946mm)
12-3/4" (324mm) 17-1/8" (435mm)
42-7/16" (1078mm) 48" (1219mm)
60" (1524mm) 68" (1727mm)
46" (1168mm) 46-1/2" (1181mm)
40-1/2" (1029mm) 40-1/2" (1029mm)
2" (51mm) 2" (51mm)
3-1/2" (89mm) 3-1/2" (89mm)
4" (102mm) 4" (102mm)
H
G
***
K
If using the Barcelona Surround, Kensington, Balmoral, or
*
Tripoli Screen Door please note that framing and facing must
be non combustible (12" on top and 6" on both sides) and that
the Barcelona is only approved for installation with a single
sidewall.
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
P36 - P36D Gas Fireplace
L
Top Header
Drywall
(or other
facing)
10" (254mm)
dia. Hole through
wall Vent.
I
M
J
N
O P
Opening for gas
connection
35
