FILA FILActive FAT003DG User Manual

FILActive
User
FAT003DG
www.fila.com/watch
1

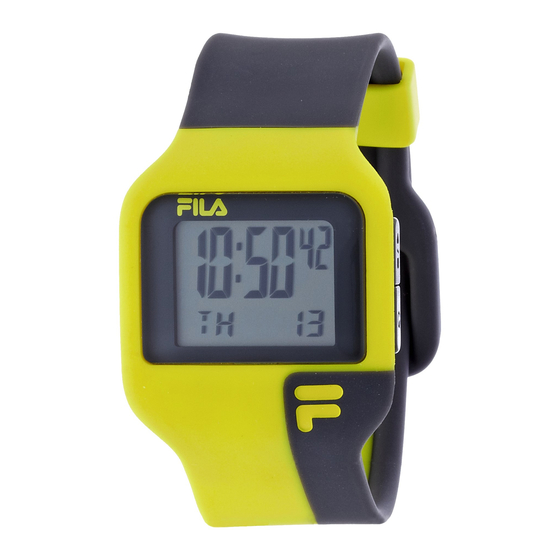

Design of the Watch
Thank you for purchasing this watch.
Please read this manual thoroughly before using the watch!
[EL]
[M]
Mode Button [M]
• To select among the Current Time, Timer, Chronograph and
Daily Alarm.
• To select among the setting items during setting display.
Start/Stop Button [S/S]
• To increase the digits during setting display.
• To activate the 'start' or 'stop' function during Chronograph
mode or Timer mode.
• To turn ON/OFF the Daily Alarm
Lap/Reset Button [L/R]
• To decrease the digits during setting display.
• To activate the 'lap' or 'reset' function during chronograph
mode.
• To turn ON/OFF the Daily Alarm
EL Button [EL]
• To turn on the EL back light for about 3 seconds.
Touch Button [T]
• To turn on the EL back light for about 3 seconds when touch
button function is turn on.
NOTE: The major key operations are summarized on the above
paragraphs, however please read the coming chapters for the
detail operations.
2

Specifications

Current Time Mode
• Time System: AM, PM, Hour, minute, second
• Time Format: 12-hour or 24-hour format
• Calendar: Month, date and day of week display
(Auto-Calendar function for leap year and day of week)
Countdown Timer
• Resolution: 1 second
• Measuring Range: 23 hours 59 minutes 59 seconds
• Timer Sounds: beep once at 9 to 1 second(s).
2 Beep continuously for 15 seconds at 0 second.
Chronograph Mode
• Resolution: 1/100 second
• Measuring Range: 23 hours 59 minutes 59.99 seconds
• Lap memory: 30 lap memory
Alarm Mode
• Daily alarm
• Alarm sound: 20 seconds
Water Resistant
• 3 ATM
* These specifications might be changed without prior notice.
3

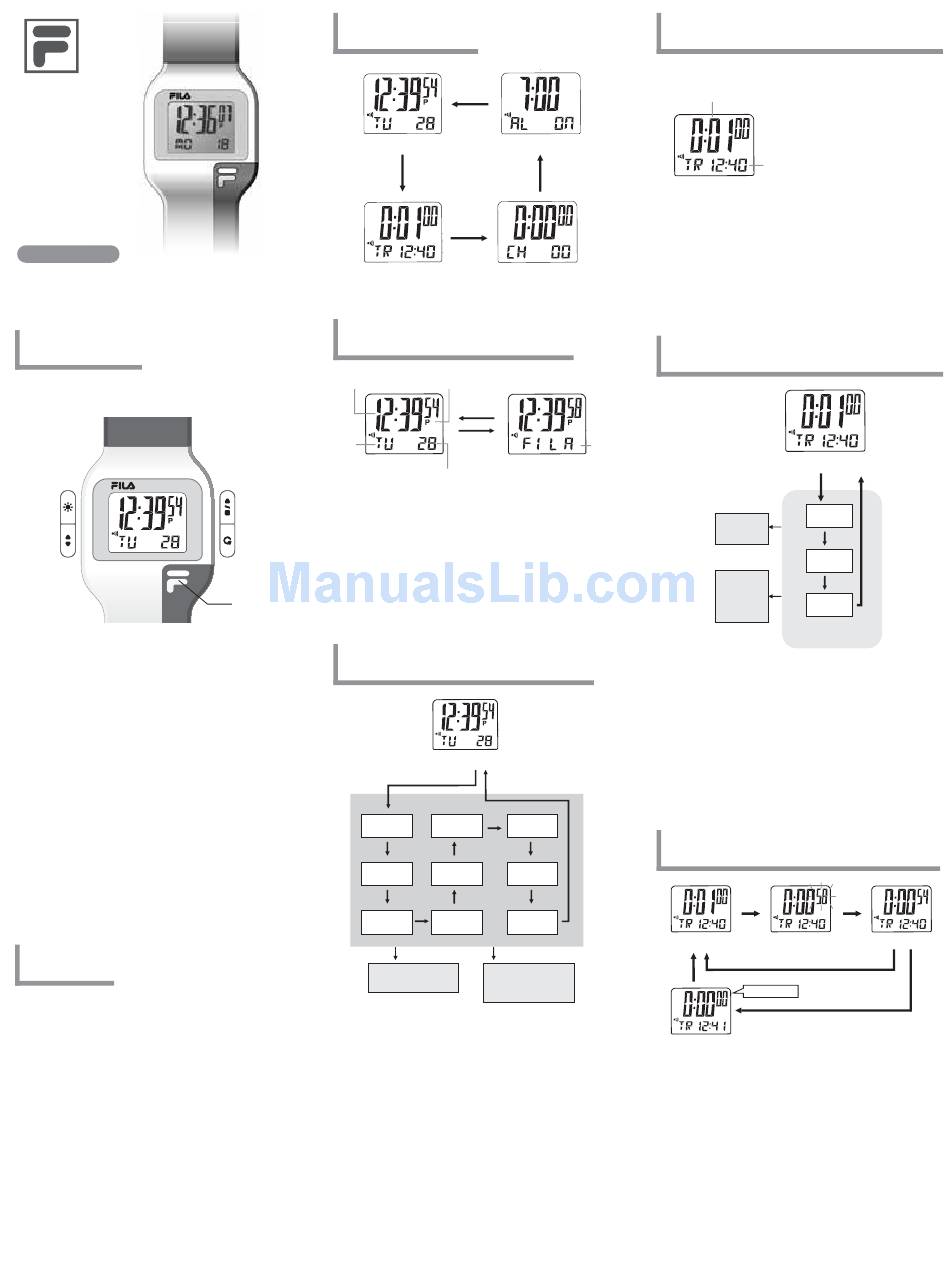

Major Function Modes

Current Time Mode
MANUAL
Timer Mode
FM-717.1
4
Current Time Mode
Current time
Day of
week
Current Time
[S/S]
Current Time Display
• When the Current Time Mode is selected, the Watch will
show the following items on the display:
[L/R]
• The current time (hour, minute, second) is exhibited on the
1st row of the display.
• The day of week and date of the current time are exhibited
on the 2nd row of the display.
• The FILA word will show at every 58 & 59 seconds.
[T]
4.1
Current Time Mode
12/24
Hour Format
Second
Minute
Increase / Decrease
the number

How to Set the Current Time

• To select the setting display, hold down the [M] button for 2
seconds in the Current Time Mode.
• In setting display, press the [M] button to change the selection
following the adjacent diagram.
• When one of the setting items (minute, hour, day, month,
year) is flashing (selected), press the [S/S] or [L/R] button
to increase / decrease the number. (Hold down the button
to change the number at a higher speed).
• When the second digits are flashing (selected), press the
[S/S] or [L/R] button to reset the digits to "00".
• When 12/24 hour format setting is selected, press the
[S/S] button to select between 12 and 24 hour format.
• When key beep or Touch setting is selected, press the
[S/S] or [L/R] button to select between ON and OFF.
• When the setting is completed, hold down the [M] button or
press the [M] button (after "Touch" setting is completed) to
exit the setting display. The Watch will also exit the setting
display if NO keystroke has been activated for 1 minute.
[M]
Daily Alarm Mode
[M]
[M]
[M]
Chronograph Mode
- Current Time Display
AM/PM indicator
0-57 sec
58-59 sec
Current Time
Mode Date Mode
(Day, month)
- Setting the Current Time
Current Time Mode
Hold [M] [M]
Setting Sequence
[M]
Month Day
[M] [M] [M]
Key Beep
Year
ON/OFF
[M] [M] [M]
[M]
Touch
Hour
ON/OFF
Hold [L/R] / [S/S]
[L/R] / [S/S]
Increase / Decrease
the number
at a higher speed
5
Countdown Timer Mode
Counting time
(hour, minute)
Current
time
Countdown Timer
Display
Countdown Timer Display
• When the Countdown Display is selected, the Watch will
show the following items on the display:
• The target time (hour, minute) is exhibited on the 1st row of
the display.
• The current time (hour, minute) is exhibited on the 2nd row
of the display.
5.1
Countdown Timer Mode
FILA
Countdown Timer Display
[L/R] / [S/S]
Increase /
Decrease
the number
Hold [L/R] / [S/S]
Increase /
Decrease
the number
at a higher
speed
How to Set the Countdown Timer
• To select the setting display, hold down the [M] button for 2
seconds in the Countdown Timer Mode, and then the 'Hour'
digits start flashing on the display.
• In setting display, press the [M] button to move the flashing
following adjacent diagram to select among different settings.
• When one of the settings (hour, minute, second ) is flashing,
press the [L/R] / [S/S] button to change the number (hold
down the button to change the number at a higher speed).
• When the setting is completed, hold [M] button or press the
[M] button (after "second" setting is completed) to exit the
setting display. The Watch will also exit the setting display if
NO key-stoke has been activated for 1 minute.
5.2
Countdown Timer Mode
[S/S]
Timer Display Counting Display
[L/R]
[L/R]
beep, beep
To Use the Timer
• Once the target time has been set and
Count to zero
loaded (for example 1 minutes), press
the [S/S] button to start the measurement (the digits will start
running); press the [S/S] button once again to stop the
measurement (the digits will stop running).
• The current time will be exhibited on the 2nd row of display
throughout the measurement.
How to Reload the Timer
• To reload the timer display to original target time prior to the
timer counts to zero, press the [L/R] button to re-load the
timer during the timer is stopped.
• Or press the [L/R] button to reload after the Watch counted to
zero.
Timer Alarm Sound
• During the counting, the Watch will beep once when it comes
to the last 10 second (s).
• When the timer counts to zero, the Watch will beep for 15
seconds.
- Countdown Timer Display
Countdown Timer Mode
• This Watch includes a
countdown timer function
which timekeeping for the
elapse of a fix period of time
(target time).
• When a target time is set for
the timer, the Watch will start
running from the target time
to zero.
• The measurement unit of the
timer is 1 second, and its
measuring capacity is 23
hours and 59 minutes 59
second.
- Setting the Countdown Timer
Hold [M]
Hour
[M]
[M]
Minute
[M]
Second
Setting Sequence
- Using the Countdown Timer
[S/S]
Stop Counting
