MLis MLB-G1102 User Manual

Quad band gsm/gprs terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MLB-G1102
Quad Band GSM/GPRS
Terminal
 USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLB-G1102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MLis MLB-G1102

Summary of Contents for MLis MLB-G1102

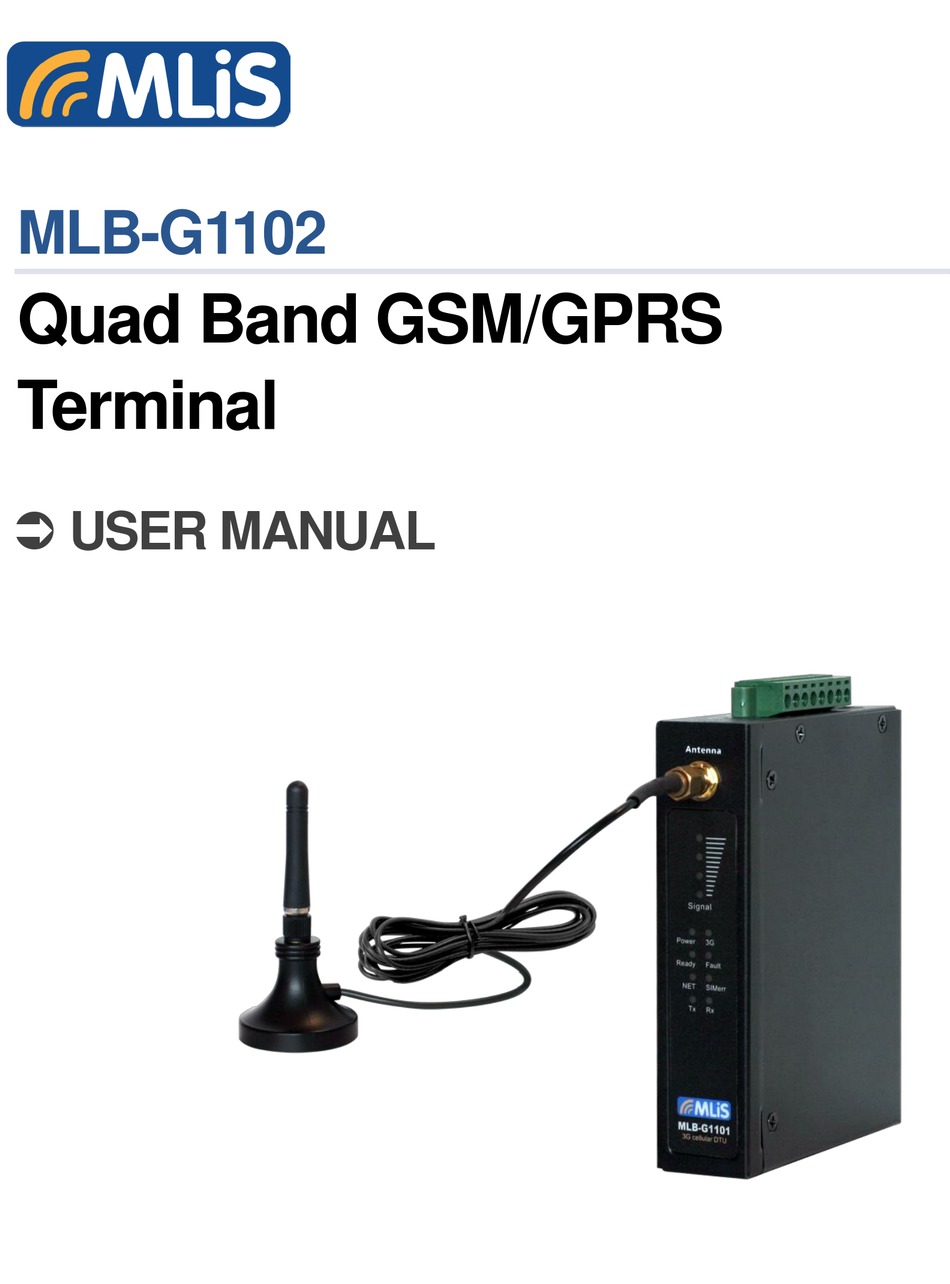

  • Page 1 MLB-G1102 Quad Band GSM/GPRS Terminal  USER MANUAL...
  • Page 2 WARNING: The MLiS GSM wireless terminal is a RF product intended for interfacing and operating with a host device. Local relevant RF regulations such as allowed frequencies and usage in commercial flights must be observed.

  • Page 3: Table Of Contents

    Reset to default ........................27 External input x2 ........................27 External Relay x1 ......................... 27 DB9 Connector ........................27 Install SIM card........................27 MLiS Cellular Control Protocol (MCCP) ..................28 SALES CONTACT ..........................37 MLB-G1102 Wireless Terminal User Manual Rev 1.1...
  • Page 4 Table 1: Operating Modes ..................錯誤! 尚未定義書籤。 Table 2: Features and Specifications ..................... 8 Table 3: Chassis Dimensions and Mechanical Description for MLB-G1102 ......... 10 Table 4: DB9 pins define for MLB-G1102..................... 11 Table 5: Interfaces and Indicators Description of MLB-G1102 ............. 12 Table 6: LED functions of MLB-G1102 ....................

  • Page 5: Introduction

    DC jack to provide power input. LEDs are used to indicate the status of the wireless terminal. The MLB-G1102 wireless terminal can be used to provide a wireless communication link to many applications, including metering, fleet and asset management, vending, security and alarm monitoring, e-maintenance and other telemetry applications.
  • Page 6 Data Buffering : 1M • Data Delimiter : Yes • Data Length Packing : Yes • MCCP/MCCU : Yes – API : MLiS Cellular Control Protocol (=MCCP) – Utility : MLiS Cellular Control Utility (=MCCU) MLB-G1102 Wireless Terminal User Manual Rev 1.1...

  • Page 7: Functional Block Diagram

    Functional Block Diagram Figure 1: Functional Block Diagram for MLB-G1102 The MLB-G1102 consists of a fully certified (CE approved) GSM/GPRS engine, SIM card holder and power regulator. The wireless terminal is supplied with power via the DC jack. The remaining DB9 connector is used for data communications.

  • Page 8: Main Features And Services

    Main Features and Services The MLB-G1102 performs a set of telecom services (TS) according to GSM standard phase 2+, ETSI and ITU-T. The services and functions of the MLB-G1102 are implemented by issuing customized applications embedded on the device, or by AT commands issued internally, or over the RJ45 to RS232 serial interface.

  • Page 9: Precautions

    Table 1: Features and Specifications Precautions The MLB-G1102 wireless terminal is designed for indoor use only. For outdoor use it has to be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in the user manual.

  • Page 10: Mechanical Description

    Dimensions Figure 2: Chassis Dimension for MLB-G1102 Parameter Value Height (H) 26.9mm Length (L) 119.5mm Width (W) 89.0mm Weight 200g Chassis Material Metal Table 2: Chassis Dimensions and Mechanical Description for MLB-G1102 MLB-G1102 Wireless Terminal User Manual Rev 1.1...

  • Page 11: Electrical Interface Descriptions

    3 ELECTRICAL INTERFACE DESCRIPTIONS Right side view (DB9 connector) Figure 3:RS232/RS422/RS485 for MLB-G1102 The table below defines the RS232/RS422/RS485 pin configuration on the wireless terminal. Table 3: DB9 pins define for MLB-G1102 MLB-G1102 Wireless Terminal User Manual Rev 1.1...

  • Page 12: Left Side View (Dc Jack & Industry Connector)

    1-click to reboot MLB-G1102. Reset Reset • Double click to set MLB-G1102 into configuration mode. • Long press over 5 seconds to reset MLB-G1102 to default. Table 4: Interfaces and Indicators Description of MLB-G1102 MLB-G1102 Wireless Terminal User Manual Rev 1.1...

  • Page 13: Frond View (Antenna & Led)

    Frond view (Antenna & LED) Figure 5: Antenna Connector for MLB-G1102 For optimum RF performance, the MLiS wireless terminal has to be connected to an external RF antenna matched to 50ohms. Please use a SMA Male connection for the wireless terminal.

  • Page 14: Sim Card Holder

    SIM card holder In the bottom, The MLB-G1102 wireless terminal is provided with a SIM card reader designed for 1.8V and 3V SIM cards. It is the flip-up type which can be locked. It can be accessed through removing the battery cover as shown below.

  • Page 15: Getting Started

    Be sure to power off the modem when user replaces the SIM card. Otherwise it may cause damage to the equipment. Step 2: Please connect to device through serial port as following Pinouts. MLB-G1102 Wireless Terminal User Manual Rev 1.1...
  • Page 16 The device is ready after LED of signal is lighted. Then user can operate it. Step 5: When user use the MCCU (MLiS Cellular Configuration Utility) to configure MLB-G1102, please refer the connection as below: MLB-G1102 Wireless Terminal User Manual Rev 1.1...
  • Page 17 SW Installation Preliminary work: Power on MLB-G1102 and use USB-to-RS232 cable to connect to MLB-G1102 & PC. Step 1：Open MCCU (MLiS Cellular Configuration Utility). Step 2：The main window of MCCU launch. Figure 1: MLB-G1102 Configuration Utility MLB-G1102 Wireless Terminal User Manual...
  • Page 18 Basic Information The Basic Information page summarizes the current settings of MLB-G1102. Item Shows the model user connected. Model FW Version Current firmware version. SIM Card The status of SIM Card. Operator Telecoms Get Info Click it to reload the basic information.
  • Page 19 Input phone no. with country uses this phone to send SMS to modify the code. SMS Admin settings of MLB-G1102. The SMS content follow For example: +886911222333 the MCCP. Tick the check box then input the phone number. Input phone no. with country...
  • Page 20 Ex. If user sets 60 seconds, the heartbeat will be send every 60 seconds. Set the string of heartbeat. Heartbeat String Select the Heartbeat receiver. (Main server only or all) Send to Main/Send to all MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 21 Click to get the status of DIO1 Click to get the status of DIO2 Get DIO2 Click ON/OFF to enable/disable relay Relay Select the receiver (SMS or Server) when the status of DIO Send to SMS/Send to Server changed. MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 22 Step 3：Select the Operation mode by drop-down list, then the related setting page displayed. Operation mode Transparent Mode IP-0: Single IP to transfer and MLB-G1102 support DDNS client function. Port: Set the port. Packing Mode/Fast Mode: Select the Mode under Transparent. Those modes are used for different cases. Please refer Modes table.
  • Page 23 Socket TCP Mode 0-IP~4-IP: Use multiple IP to transfer and MLB-G1102 support DDNS client function. Port: Set the port. Notice: When the multiple IP function is enabled with large data transmission, the transmission performance will be affected. Socket UDP Mode 0-IP~4-IP: Use multiple IP to transfer and MLB-G1102 support DDNS client function.
  • Page 24 Server TCP Mode Set the server port in the input box. SMS Mode Mobile: Set the mobile number user receives SMS. Send Box: Input SMS text. MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 25 Packing Mode Fast Mode Connection Speed 2~5M (Base on baud-rate 115200) Functions Fully Support Fully Support Transmission Only Packing TCP packing Stream Stream Notice: In common, we suggest user to use TCP/UDP mode. MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 26 [Note]: This is a real operation for reference. The user may input different parameters accordingly • If MLB-G1102 is not running with 115200 baud-rate and user want to re-configure it, please double click the reset button to enter configuration mode (115200, N81). (Refer 3.2 Table5) MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...

  • Page 27: Operating Note

    Please turn to back view, screw open the cover, then user will see SIM card holder. Please use SIM card faces to PCB board and put it into holder, please screw the cover back. (Please refer to Figure 6) MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...

  • Page 28: Mlis Cellular Control Protocol (Mccp)

    5 MLiS Cellular Control Protocol (MCCP) MLiS user can remotely control MLB-G1102 through MLiS Cellular Control Protocol. MLiS Cellular Control Protocol is open to MLiS user. The MCCP should be converted to hexadecimal then count with checksum. If any question about MCCP, please feel free to contact us.
  • Page 29 IN STAGE2 No response Receive: over 12 secs MCCP command Receive: IN STAGE2 Receive: MLB-SAVEPARAMETERS Receive: Reboot MLB-RESTART MCCP Setting Process via SMS Receive: Working Mode MCCP command Receive: MLB-SAVEPARAMETERS Receive: Reboot MLB-RESTART MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 30 End Tag Response format Response +: {IP}: {Port}, {Disable(0)/ Enable(1) bit} Example: Send --> MLB+CONNECTIONPROFILE: 6, 2, Z Response +: 192.168.99.22: 54321,1 (Socket TCP Client Mode at Index 2 IP 192.168.99.22:54321 has been enabled) MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 31 192.168.100.99 port 27000 to profile 2 for TCP Client Mode (Enabled) Command Header MLB+UARTSETTING RS232 UART Type RS485 RS422 0. 230400 1. 115200 Read 2. 57600 3. 38400 Baud rate 4. 19200 5. 9600 6. 4800 7. 2400 MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 32 Enable)}, {DTR (H/L)}, {RTS (H/L)} Example: Send --> MLB+UARTSETTING: Z Response +:1, 1, 2, 2, 0, 0, 1 (UART Mode is RS232 at 115200/ODD /2Bits/H/W flow control disabled/ DTR at Low/RTS at High) MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 33 }, {User Name}, {Password}, Response format {Internet connection type } Example: Read Send --> MLB+INTERNETSETTING: Z Response +: internet, user, pass , 4 (APN=internet/User Name = user/Password = pass/Current Service Type is Transparent Server Fast Mode)" MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 34 Response +: { }, { Retry Time Interval } Retry Time Example: Read Send --> MLB+RECONNECTSETTING: Z Response +:9999, 5 (Connecting maximum retry time is no limit and retry interval is 5 minutes)" MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 35 Command Header MLB+PACKINGSETTING End Tag Response Response format +:{ID},{Header},{Packing(Enable/Disable)} Example: Read Send --> MLB+PACKINGSETTING: Z Response +: ID_123, MST,1 (The device ID is ""ID_123"") (Packing header will be ""MST"" and has been enabled)" MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
  • Page 36 2. DIO2 End Tag Set Relay Command Header MLB-SETRELAY 0. Low Relay Level Write 1. High End Tag Save Parameters Command Header MLB-SAVEPARAMETERS Write End Tag Restart Command Header MLB-RESTART Write End Tag MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...

  • Page 37: Sales Contact

    F (886-2) 2502-6717 info@schmidthk.com Thailand Schmidt Electronics (Thailand) Ltd 252/97 (B), 19 Fl., Tower B, Muang Thai-Phatra Complex Building, Ratchadaphisek Rd., Huaykwang Subdistrict, Huaykwang District Bangkok 10310 Thailand T (66-0) 2693-3445 F (66-0) 2693-3448 info.th@schmidtelectronics.com MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...

  • Page 38: Ordering Information

    6 ORDERING INFORMATION MLiS Product MLB-G1102: The MLIS Dual-Band 2G/3G wireless terminal Power Adaptor MLA-PSP-100: Input: AC 100 ~ 240V Output: 9V/1.3A DC jack 5.5/2.1 MLA-PSP-101: US Adapter Plug MLA-PSP-104: British Adapter Plug MLA-PSP-103: European Adapter Plug MLA-PSP-102: Australia Adapter Plug MLA-CAB-001: DC Jack power line 5.5/2.1...
  • Page 39 Regional Contact Taiwan | +886 2-2502-5095 China | +86 (755) 8376-0232 Singapore | +65 6272-7233 Email sales.mlis@schmidtelectronics.com Official Website MLiS Website | www.schmidtm2m.com Support | www.schmidtm2m.com/support Download | www.schmidtm2m.com/download Facebook | www.facebook.com/MLiSM2M MLB-G1102 WIRELESS TERMINAL User Guide Rev 1.1...
