Reflecta projection screens brochure

Advertisement

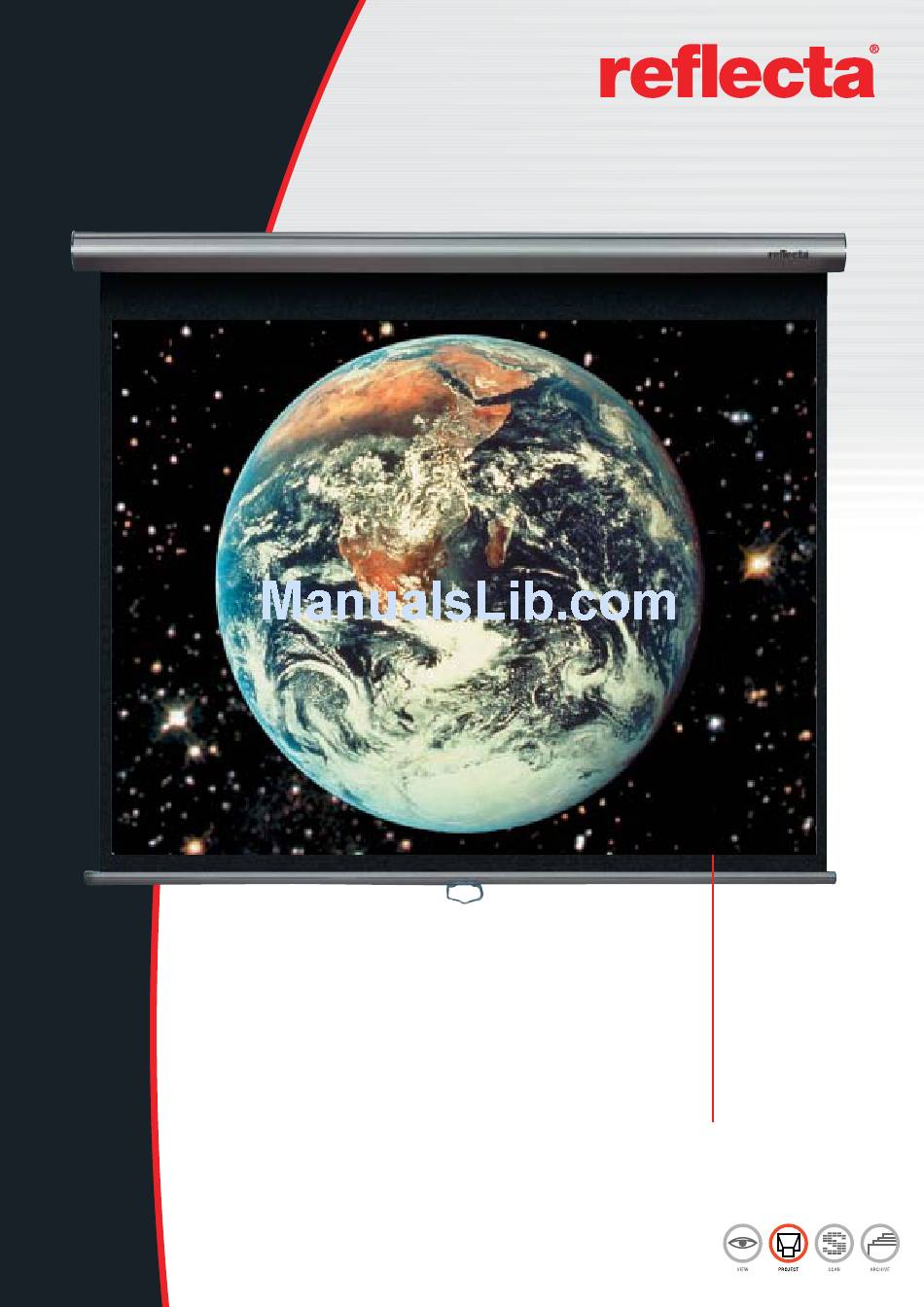

Projection
Screens
The right projection
screen for your
specific purpose
XX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Projection Screens and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Reflecta Projection Screens

  • Page 1 Projection Screens The right projection screen for your specific purpose...
  • Page 2 THE ENTIRE UNIVERSE OF PROJECTION SCREENS P R O J E C T I O N S C R E E N S B Y R E F L E C T A...
  • Page 3: Table Of Contents

    Contents reflecta ...4 Basics ...6 Projection screen know-how ...7 reflecta screen fabric terminology...8 Portable projection screens Tripods ...Alpha ...10 ...Silverline large format ...11 ...Starlight...12 Cinemobil ...13 Portables ...Table screen ...14 ...Floor screen...15 Landscape format ...16 Alum. frame...Multi system ...18 ...Mono system ...20 Fixed projection screens Spring roller ...22...
  • Page 4: Reflecta

    Quality and innovation in photography - this has been the hallmark of reflecta for more than 35 years. The history of our company started with the production of projection lamps and photo accessories in 1967 – today, we offer customised solutions for presenting and pro- cessing photos for almost any purpose.
  • Page 5 Europe Belgium worldwide Cyprus Denmark Great Britain Finland France Greece Netherlands Ireland Island Italy Luxembourg Austria Poland Portugal Romania Sweden Switzerland Slovenia Slovakia Spain Czech Republic Hungary R E F L E C T A – R E P R E S E N T E D W O R L D W I D E...
  • Page 6: Basics

    Basics about the fabrics If you want to present pictures or information to an audience, be it in the private or business sector, a perfect presentation is indispensable. However, this can be achieved only if projec- tion device and screen match each other. A slide projector, e.g., needs a different screen than a beamer.
  • Page 7: Screen Size

    A. Trapezoid distortion Front projections typically produce a trapezoid distortion (keystoning). The projected picture is larger at the top of the screen than at the bottom. This distortion is caused by an inclined projec- tion onto a straight hanging screen. Special key- stone eliminators allow for an inclined positio- ning of the screen to provide for an appropriate means to avoid the trapezoid distortion when...
  • Page 8: Reflecta Screen Fabric Terminology

    Typically, the specified gain factor indicates the maximum reflection of a screen along the projection axis. Special coatings of the projection screens are used to obtain diffe- rent reflection characteristics. Their effect is to manipulate the light reflection, i.e. either distri- buted evenly in all directions or concentrated to a small viewing angle.
  • Page 9 ValueLux Characteristics: Gain 1.1 Viewing angle 120 Weight/m 1100 g Screen thickness 0.65 mm Used for: Cosmos series Gain 1,1 ValueStarlux Characteristics: Gain 2.1 Viewing angle 80 Weight/m 1100 g Screen thickness 0.65 mm Used for: Cosmos series Gain 2,1 DeltaLux Characteristics: Gain 1.0...
  • Page 10: Portable Projection Screens

    TwinLux matte white, 1.1 gain and wide viewing angle. • Optional carrying bags for all sizes PORTABLE PROJECTION SCREENS ULTRA-PORTABLES PORTABLES Tripod projection screens Alpha – Technical data (all dimensions in cm) Ref. no Type Fabric 40511 Tripod 125x125 AlphaLux...
  • Page 11: Silverline Large Format

    CINEMOBIL TRIPODS Tripod projection screens Large format – Technical data (all dimensions in cm) Ref. no. Type Fabric Format 84031 Tripod LF Pro 180x180 UltraLux 84051 Tripod LF Pro 200x200 UltraLux 84071 Tripod LF Pro 240x180 UltraLux Keystone eliminator Stable tripod...
  • Page 12: Starlight

    • Light-proof black rear side. • Continuous black border. • Optional carrying bags for sizes 133, 158 and 184 cm PORTABLE PROJECTION SCREENS ULTRA-PORTABLES PORTABLES Tripod Starlight – Technical data (all dimensions in cm) Ref. no. Type Fabric Format 40512 Tripod Starlight SuperLux...
  • Page 13: Cinemobil

    Cinemobil 160x120 Alphalux 84221 Cinemobil 160x160 Alphalux 84234 Cinemobil 180x135 Alphalux Keystone eliminator Collar for tripod tube PORTABLE PROJECTION SCREENS ULTRA-PORTABLES PORTABLES Format Retracted screen Lock head LANDSCAPE FORMAT ALUMINUM FRAME CINEMOBIL Portable projection screen in an appealing design for all projection types.
  • Page 14: Portables

    Sturdy casing to protect against dust and dirt. • Fold-out legs for a secure stand. • Ideal for a small group of viewers PORTABLE PROJECTION SCREENS PORTABLES Ultra-portable table screen – Technical data (all dimensions in cm) Ref. no. Type Fabric...
  • Page 15: Floor Screen

    Fabric Format A 40763 Portable floor screen GammaLux 40764 Portable floor screen GammaLux Fold-out legs Handle PORTABLE PROJECTION SCREENS PORTABLES 128 154 122 172 4.5 kg 169 196 163 122 214 5.5 kg Retracted screen with fixed Lock head tripod tube...
  • Page 16: Landscape Format

    TRIPODS CINEMOBIL ULTRA-PORTABLES Projection screen in landscape format PORTABLE PROJECTION SCREENS PORTABLES LANDSCAPE FORMAT A high-quality fabric with a wide viewing angle is used for this handy projection screen simply hung to a hook. When rolled up, the landscape projection screen can be stored at a small space.
  • Page 17 Landscape format – Technical data (all dimensions in cm) Ref. no. Type Fabric 40191 Landscape format 155x155 UltraLux 40211 Landscape format 180x180 UltraLux 40221 Landscape format 200x200 UltraLux 40261 Landscape format 240x180 UltraLux 40251 Landscape format 250x190 UltraLux 40271 Landscape format 260x195 UltraLux 40281 Landscape format 280x210...
  • Page 18: Alum. Frame

    It is particularly suited for widescreen video or rear projections. The high-grade and lightweight materials of the reflecta framed projection screen make it ideal for an easy and fast use. Fabric for rear projec- tion is available optionally.
  • Page 19 Aluminum frame projection screen Multi system – Technical data (all dimensions in cm) Ref. no. Type (front projection) 81401 Alu frame projection screen Multi system 200x200 81402 Alu frame projection screen Multi system 240x240 81403 Alu frame projection screen Multi system 290x290 81404 Alu frame projection screen Multi system 340x340 81405...
  • Page 20: Mono System

    TRIPODS CINEMOBIL ULTRA-PORTABLES Aluminum frame Mono system PORTABLE PROJECTION SCREENS PORTABLES LANDSCAPE FORMAT The sensible combination of our proven frame system with stable, smooth running hinges which snap in automatically allow for a single- piece frame. This system is particularly suited when the setting up shall be as simple and fast as possible.
  • Page 21 Alu frame projection screen Mono system – Technical data (all dimensions in cm) Ref. no. Type (front projection) 81450 Alu frame projection screen Mono system 203x203 81451 Alu frame projection screen Mono system 249x249 81452 Alu frame projection screen Mono system 294x294 81453 Alu frame projection screen Mono system 340x340 81454...
  • Page 22: Fixed Projection Screens

    SPRING ROLLER Spring roller The proven and reliable reflecta spring roller system offers high functionality at a reasonable price. The screen tube is safely mounted to a wall. The tensioning system guarantees a plain screen. Product details: • Fixed projection screen, tube diameter 6 cm.
  • Page 23: Galaxy, Self-Locking Roller System

    C I N E H O M E P L A I N Galaxy self-locking roller The rectractable reflecta projection screen is installed in a profiled sheetmetal case and is ope- rated with the locking mechanism with the soft lift function. When pulled slightly downwards, the projection screen automatically retracts slow- ly and safely to the tube.
  • Page 24: Silverline

    FIXED PROJECTION SCREENS S T A R L I G H T SILVERLINE The reflecta large projection screen to be fixed permanently to a wall or ceiling is mounted to an aluminum profile case and is operated either manually or motor-driven. The projection screen...
  • Page 25 Silverline self-locking roller – Technical data (all dimensions in cm) Ref. no. Type Fabric 80901 Silverline self-locking roller UltraLux 80911 Silverline self-locking roller UltraLux 80921 Silverline self-locking roller UltraLux 80931 Silverline self-locking roller UltraLux 80941 Silverline self-locking roller UltraLux 80904 Silverline self-locking roller UltraLux 80914...
  • Page 26: Starlight

    S I L V E R L I N E STARLIGHT The fixed reflecta screen is mounted in a 8 cm x 9 cm or 9 cm x 11 cm white sheetmetal profiled case and is available as electric version or with a locking system.
  • Page 27 Starlight self-locking roller – Technical data (all dimensions in cm) Ref. no. Type Fabric 86901 Starlight self-locking roller SuperLux 86904 Starlight self-locking roller SuperLux 86911 Starlight self-locking roller SuperLux 86914 Starlight self-locking roller SuperLux 86915 Starlight self-locking roller SuperLux 86921 Starlight self-locking roller SuperLux 86934...
  • Page 28: Cosmos

    To be used in conference rooms or in the private home theatre, the electric reflecta Cosmos screen offers a high-end solution for your projections. The reflecta electric system lives up to highest standards due to the conscious use of sturdy and safe components for a long product life.
  • Page 29 Cosmos – Technical data (all dimensions in cm) Ref. no. Type Fabric 80211 Electric Cosmos 150x150 ValueLux 80221 Electric Cosmos 180x180 ValueLux 80231 Electric Cosmos 200x200 ValueLux 80241 Electric Cosmos 250x250 ValueLux 80251 Electric Cosmos 300x300 ValueLux 80311 Electric Cosmos 150x150 ValueStarlux 80321 Electric Cosmos 180x180...
  • Page 30: Electric Rc

    To be used in conference rooms or in the private home theatre, the electric reflecta Cosmos screen offers a high-end solution for your projections. The reflecta electric system lives up to highest standards due to the conscious use of sturdy and safe components for a long product life.
  • Page 31 Cosmos – Technical data (all dimensions in cm) Ref. no. Type Fabric 81211 Electric RC Cosmos 150x150 ValueLux 81221 Electric RC Cosmos 180x180 ValueLux 81231 Electric RC Cosmos 200x200 ValueLux 81241 Electric RC Cosmos 250x250 ValueLux 81251 Electric RC Cosmos 300x300 ValueLux 81311 Electric RC Cosmos 150x150...
  • Page 32: Cinehome

    Either with front or rear projection material. • Screen is optimised for beamers. FIXED PROJECTION SCREENS S I L V E R L I N E S T A R L I G H T C O S M O S Cinehome –...
  • Page 33: Plain

    The elegant aluminum rectangular profile (23 mm x 28 mm) in light grey rounds off the reflecta Plain 22 model. The screen is ideal for video and data projections as well as for overhead projections. It is particularly suited...
  • Page 34 THE ENTIRE UNIVERSE OF PROJECTION SCREENS C U S T O M I S E D P R O J E C T I O N S C R E E N S Projection screens to your dimensions... For special purposes, you will need a special pro- jection screen.
  • Page 36 Fax 0 74 57/94 65-72 As part of our continued efforts to improve the quality of our products, we reserve the right to change our products without notification. Ref. no. 72208 © reflecta Germany The reflecta product range Please contact us for...
