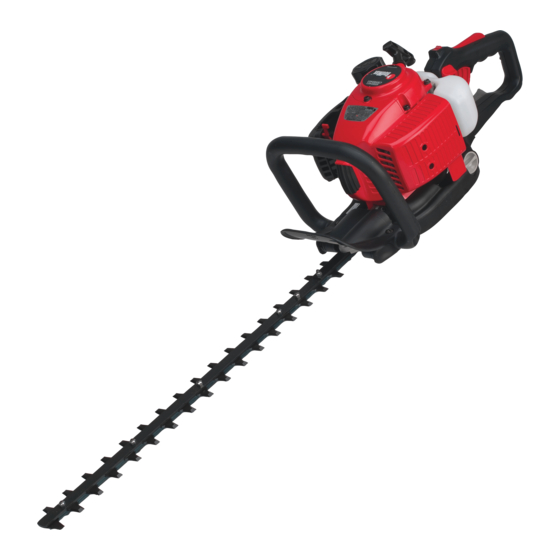

RedMax CHTZ2460 Owner's/Operator's Manual
  1. Manuals
  2. Brands
  3. RedMax Manuals
  4. Trimmer
  5. CHTZ2460
  6. Owner's/operator's manual

RedMax CHTZ2460 Owner's/Operator's Manual

Hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

HTZ2460
HTZ2460L
CHTZ2460
CHTZ2460L
HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L
848-D3Z-93A0 (005)
OWNER'S/OPERATOR'S
MANUAL

HEDGE TRIMMER

WARNING
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.
WARNING
Before using our products,
please read this manual carefully
to understand the proper use of
your unit.
This spark ignition system complies with
the Canadian standard ICES-002.
U
S
US-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHTZ2460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RedMax CHTZ2460

Summary of Contents for RedMax CHTZ2460

  • Page 1: Hedge Trimmer

    HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L HTZ2460 HTZ2460L CHTZ2460 CHTZ2460L 848-D3Z-93A0 (005) OWNER'S/OPERATOR'S MANUAL HEDGE TRIMMER WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. WARNING Before using our products,...

  • Page 2: Table Of Contents

    HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L SAFETY FIRST Instructions contained in warnings within this manual marked with a points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

  • Page 3: Parts Location

    1080(mm)/ 42.5(in) 35(mm)/ 1.38(in) 34(mm)/ 1.34(in) Centrifugal clutch, Cam-crank Air-cooled 2-stroke gasoline 23.6(cm 1.15Hp(0.85kW)/8000 min 3000 ± 200 / min mixture(Gasoline 50 : Oil 1)(when using RedMax genuine oil) Walbro Diaphragm type 0.47(litter)/15.9(fl.oz) HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L CHTZ2460 CHTZ2460L Reciprocating double-sided dual blades 5.8(kg)/12.8(lbs)

  • Page 4: Warning Labels On The Machine

    WARNING Never modify your machine. We won’t warrant the machine, if you use the remodeled hedge-trimmer or you don’t observe the proper usage written in the manual. ■ EMISSION CONTROL An emission control label is located on the engine.

  • Page 5: For Safe Operation

    At night, at times of heavy fog, or at any HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L other times when your field of vision might be limited and it would be difficult to gain a clear view of the working area.

  • Page 6: Maintenance

    If it continues to move even after the throttle has been moved fully back, turn off the engine and take the unit to your authorized RedMax servicing dealer for repair. ■ USING THE PRODUCT IMPORTANT...

  • Page 7: Handling Fuel

    ■ HANDLING FUEL 1. The engine of the RedMax product is designed to run on a mixed fuel, which contains highly flammable gasoline. Never store cans of fuel or refill the tank of the...

  • Page 8: Fuel

    • Poor quality gasolines or oils may damage sealing rings, fuel US-8 lines or fuel tank of the engine. • Failures caused by operating engines on gasoline with octane rating lower than 89 are not covered by the RedMax Two- Stroke engine warranty. WARNING • Alternative Fuels (Not Gasoline)

  • Page 9: Fueling The Unit

    Do not mix more gasoline/oil than you intend to use in 30 days, and 60 days when fuel stabilizer is added. RedMax Air-Cooled "Max Life" Synthetic blend Premium two-stroke engine oil "Contains fuel stabilizer" and will automatically extend your gasoline/oil mixture life up to 60 days.

  • Page 10: Operation

    HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L 7. Operation ■ STARTING ENGINE WARNING • The cutting head will start moving upon the engine starts. 1. Feed fuel into the fuel tank and tighten the cap securely. 2. Rest the unit on a flat, firm place. Keep...
  • Page 11 • With the single-sided blade hedge- trimmer, model HTZ2460/HTZ2460L always cut from the bottom up (OP9). OP10 • With the 2-sided blade model CHTZ2460/CHTZ2460L use an arcing cut from the bottom upwards, then downwards to use both sides of the blades (OP10). HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L...

  • Page 12: Maintenance

    • Starting failure and mis-firing are often caused by a fouled spark plug. Clean the spark plug and check that the plug gap is in the correct range. For a replacement plug, use the correct type specified by RedMax. (MA3) US-12 Every Every Procedure...
  • Page 13 MA10 • [HTZ2460/HTZ2460L] Check periodically if the rubber cushions are not deformed or damaged. • [CHTZ2460/CHTZ2460L] Check periodically if the springs are not deformed or damaged. US-13...

  • Page 14: Spark Arrester

    HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L 8. Maintenance ■ PROCEDURES TO BE PERFORMED AFTER EVERY 100 HOURS OF USE 1. Remove the muffler, insert a MA11 screwdriver into the vent, and wipe away any carbon buildup. Wipe away any carbon buildup on the muffler exhaust vent and cylinder exhaust port at the same time.

  • Page 15: Storage

    Put the spark plug back in. 5. Wrap the engine with a plastic sheet. 6. Store the trimmer in a dry place, preferably not in direct contact with the floor and away from heat sources. 10. Disposal •...
  • Page 16 As the small off-road engine owner, you should however be aware that the RedMax may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 17 Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non- exempted add-on or modified parts will be grounds for disallowing a warranty claim. RedMax will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

This manual is also suitable for:

Chtz2460lHtz2460Htz2460l

Table of Contents
