EBZ5100Q
848-L3N-93A1 (909)
OWNER'S/OPERATOR'S
MANUAL

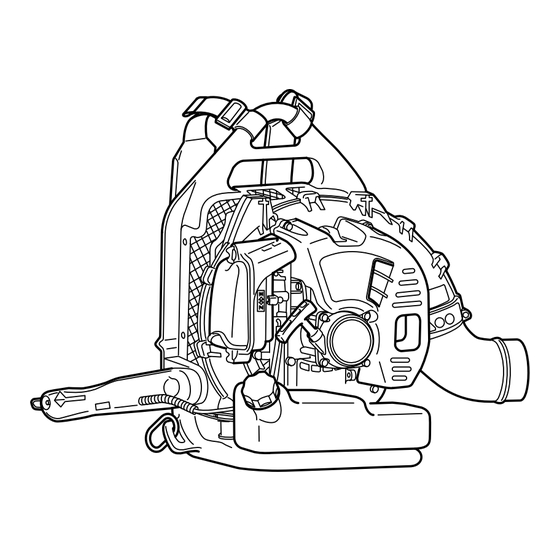

BACKPACK BLOWER
WARNING
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.
WARNING
Before using our products,
please read this manual carefully
to understand the proper use of
your unit.
APPLICABLE SERIAL NUMBERS :
90400101 and up
EBZ5100Q
U
S
US-1
Advertisement
Table of Contents
Related Manuals for RedMax US-1 EBZ5100Q
Summary of Contents for RedMax US-1 EBZ5100Q
- Page 1 EBZ5100Q EBZ5100Q 848-L3N-93A1 (909) OWNER'S/OPERATOR'S MANUAL BACKPACK BLOWER WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. WARNING Before using our products, please read this manual carefully to understand the proper use of your unit.
-
Page 2: Table Of Contents
Instructions contained in warnings within this manual and warning seals marked with a blower concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail. -
Page 3: Parts Location
1. Parts location 2. Specifications ■ MODEL EBZ5100Q Dimensions (L x W x H) mm (in) ···············································································401x483x495 (15.8x19.0x19.4) Dry Weight kg (lbs) ······································································································································9.4 (20.7) Fuel Tank Capacity liter (fl. oz)·······················································································································2.1 (71) Engine Type ··········································································································Air cooled 2-cycle gasoline engine Piston Displacement cm Air Filter ··········································································································································Half wet Urethane Carburetor (Diaphragm) valve type ··················································································································Rotary Ignition System ····················································································································································C.D.I... -
Page 4: Warning Labels On The Machine
(2) Wear head, eye and ear protection. (3) Handling this machine improperly could result in accidents causing serious injury or death. Read this manual carefully and practice using the blower until you are fully acquainted with all operations and have learned to use it correctly. -
Page 5: For Safe Operation
If any damage is found in the fuel line, the exhaust line, or the ignition wiring, do not use the blower until it has been repaired. US-5... - Page 6 If cracked, be sure to replace without delay. 4. Check the work area that the blower will be used in and remove or cover all valuables that may be damaged by the air blast or thrown debris.
- Page 7 4. When replacing the any other part, or any lubricant, always be sure to use only RedMax products or products which have been certified by RedMax for use with the RedMax product. 5. In the event that any part must be replaced...
-
Page 8: Set Up
EBZ5100Q 6. Set up ■ BLOWER TUBES 1. Connect the blower and swivel joint 2. Align the protrusion and the groove A light lubricant may be used to ease assembly of flexible pipe to blower elbow. US-8 with flexible hose. Clamp both ends of the flexible hose securely with the hardware supplied with the unit. -
Page 9: Fuel
• Poor quality gasolines or oils may damage sealing rings, fuel lines or fuel tank of the engine. NOTE • Failures caused by operating engines on gasoline with octane rating lower than 89 are not covered by the RedMax Two- Stroke engine warranty. WARNING • Alternative Fuels (Not Gasoline) - Page 10 Do not mix more gasoline/oil than you intend to use in 30 days, and 60 days when fuel stabilizer is added. RedMax Air-Cooled "Max Life" Synthetic blend Premium two-stroke engine oil "Contains fuel stabilizer" and will automatically extend your gasoline/oil mixture life up to 60 days.
-
Page 11: Operation
(3) Idling (4) Ignition Switch “O” “ I ” 4. To start, hold the top of the blower firmly with your left hand. Pull the starter knob slowly until you feel it engage and then give it a vigorous strong pull. (F6) IMPORTANT •... - Page 12 EBZ5100Q 8. Operation ■ ADJUSTING THE SHOULDER STRAPS Tightening: • Pull on the end of the strap. Loosening: • Pull up on the lower portion of the buckle with a finger and slide the end of the strap back up to the buckle. ■...
-
Page 13: Maintenance
■ AIR CLEANER • Never operate the blower without an air filter or with a deformed or broken filter element because unfiltered dusty air will quickly ruin the engine. - Page 14 • Inspect periodically, the muffler for loose fasteners, any damage or corrosion. If any sign of exhaust leakage is found, do not use the blower and have it repaired immediately. • Note that failing to do so may result in the engine catching on fire.
- Page 15 9. Maintenance ■ IGNITION COIL AIR GAP INSPECTION • If the gap is out of standard or when installing the coil or rotor, adjust the air gap between the ignition coil and the iron core of the rotor. Air Gap: 0.40mm (0.35 ~ 0.45mm) 0.016"...
-
Page 16: Storage
EBZ5100Q 10. Storage BEFORE STORING THE BLOWER: 1. Drain a fuel tank and push the primer bulb until it becomes empty of fuel. 2 .Remove the spark plug and drop a spoonful of 2-cycle oil into the cylider. Crank the engine several time and install the spark plug. - Page 17 As the small off-road engine owner, you should however be aware that the RedMax may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
- Page 18 Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non- exempted add-on or modified parts will be grounds for disallowing a warranty claim. RedMax will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
