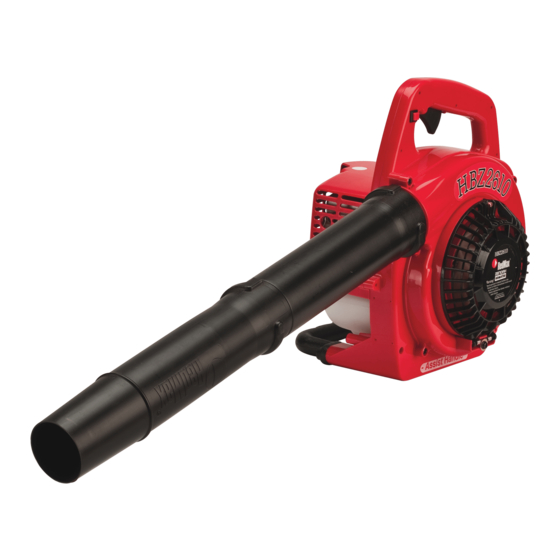

HBZ2610
848-L0T-93A0 (909)
OWNER'S/OPERATOR'S
MANUAL
BLOWERS
WARNING
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.
WARNING
Before using our products,
please read this manual carefully
to understand the proper use of
your unit.
APPLICABLE SERIAL NUMBERS :
90100101 and up
HBZ2610
U
S
US-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBZ2610 and is the answer not in the manual?

Questions and answers

Related Manuals for RedMax HBZ2610

Summary of Contents for RedMax HBZ2610

  • Page 1 HBZ2610 HBZ2610 848-L0T-93A0 (909) OWNER'S/OPERATOR'S MANUAL BLOWERS WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. WARNING Before using our products, please read this manual carefully to understand the proper use of your unit.

  • Page 2: Table Of Contents

    Instructions contained in warnings within this manual and warning seals marked with a blower concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

  • Page 3: Parts Location

    1. Parts location 2. Specifications ■ MODEL HBZ2610 Dimensions (L x W x H) mm (in) ···············································································327x269x360 (12.9x10.6x14.2) Dry Weight kg (lbs) ········································································································································4.1 (9.0) Fuel Tank Capacity liter (fl. oz)··················································································································0.65 (22.0) Engine Type ··········································································································Air cooled 2-cycle gasoline engine Piston Displacement cm Carburetor valve type·············································································································Walbro Diaphragm type...

  • Page 4: Warning Labels On The Machine

    (2) Wear head, eye and ear protection. (3) Handling this machine improperly could result in accidents causing serious injury or death. Read this manual carefully and practice using the blower until you are fully acquainted with all operations and have learned to use it correctly.

  • Page 5: For Safe Operation

    If any damage is found in the fuel line, the exhaust line, or the ignition wiring, do not use the blower until it has been repaired. US-5...
  • Page 6 Before each use, check that, the screw (1) is securely tightened and is free from any damage. 3. Check the work area that the blower will be used in and remove or cover all valuables that may be damaged by the air blast or thrown debris.
  • Page 7 4. When replacing the any other part, or any lubricant, always be sure to use only RedMax products or products which have been certified by RedMax for use with the HBZ2610 RedMax product. 5. In the event that any part must be replaced...

  • Page 8: Set Up

    Rotate the pipe clockwise to lock it into place. ■ INSTALLING SUPPORT HANDLE • This handle is supplied with the blower. • Fit the holes of volute and handle, tighten the screws. • Be sure to tighten the screws straightly.

  • Page 9: Fuel

    • Poor quality gasolines or oils may damage sealing rings, fuel lines or fuel tank of the engine. NOTE • Failures caused by operating engines on gasoline with octane rating lower than 89 are not covered by the RedMax Two- Stroke engine warranty. WARNING • Alternative Fuels (Not Gasoline)
  • Page 10 Do not mix more gasoline/oil than you intend to use in 30 days, and 60 days when fuel stabilizer is added. RedMax Air-Cooled "Max Life" Synthetic blend Premium two-stroke engine oil "Contains fuel stabilizer" and will automatically extend your gasoline/oil mixture life up to 60 days.

  • Page 11: Operation

    3. Move the choke lever upward to close the choke. (1) Choke lever (2) Close (3) Open 4. Holding the blower handle, pull the starter rope with your right hand. (Throttle trigger in idling position.) NOTE Avoid pulling the rope to its dead end or returning it by releasing the knob.

  • Page 12: Maintenance

    HBZ2610 9. Maintenance Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-road engine repair establishment or individual. ■ MAINTENANCE CHART system/compornent fuel leaks, fuel spillage fuel tank, air filter, fuel filter idle adjusting screw...
  • Page 13 • Inspect periodically, the muffler for loose fasteners, any damage or corrosion. If any sign of exhaust leakage is found, do not use the blower and have it repaired immediately. • Note that failing to do so may result in the engine catching on fire.

  • Page 14: Storage

    HBZ2610 10. Storage BEFORE STORING THE BLOWER: 1. Drain a fuel tank and push the primer bulb until it becomes empty of fuel. 2 .Remove the spark plug and drop a spoonful of 2-cycle oil into the cylider. Crank the engine several time and install the spark plug.
  • Page 15 As the small off-road engine owner, you should however be aware that the RedMax may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 16 Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non- exempted add-on or modified parts will be grounds for disallowing a warranty claim. RedMax will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
