RedMax HBZ2600 Owner's/Operator's Manual

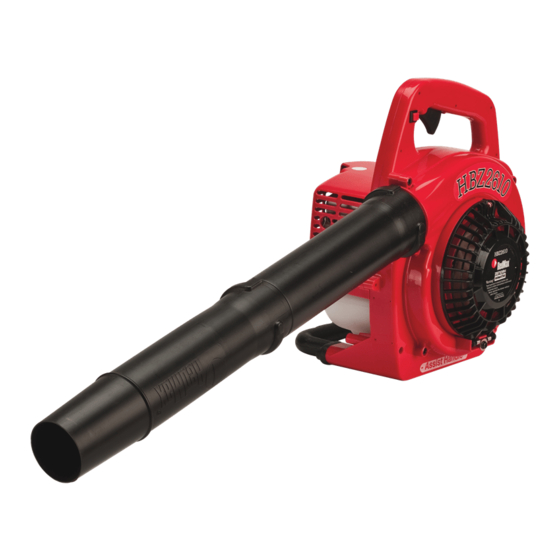

Handheld blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER / OPERATOR MANUAL
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
APPLICABLE SERIAL NUMBERS :
DRIVE UNIT 200101 and up
HANDHELD BLOWER
HBZ2600
ENGINE UNIT 200101 and up
Thank you for purchasing a RedMax
product.
Before using our blower, please read
this manual carefully to understand the
proper use of your unit.
T4033-96110 (207)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBZ2600 and is the answer not in the manual?

Questions and answers

Related Manuals for RedMax HBZ2600

Summary of Contents for RedMax HBZ2600

  • Page 1 California to cause cancer, birth defects or other reproductive harm. APPLICABLE SERIAL NUMBERS : DRIVE UNIT 200101 and up HBZ2600 Thank you for purchasing a RedMax product. Before using our blower, please read this manual carefully to understand the proper use of your unit.

  • Page 2: Safety First

    Instructions contained in warnings within this manual and warning seals marked with a symbol on the blower concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

  • Page 3: Table Of Contents

    SAFETY PRECAUTIONS················································································ 4 OPERATOR USE OF BLOWER WORKING CONDITION AVOID NOISE PROBLEM AVOID CHANCES OF DAMAGE SYMBOLS ON THE MACHINE ······································································· 7 PARTS LOCATION & SPECIFICATIONS ······················································· 8 ASSEMBLY······································································································ 8 BLOWER PIPE FUEL················································································································ 9 HOW TO MIX FUEL FUELING THE UNIT OPERATION ··································································································...

  • Page 4: Safety Precautions

    If any damage is found in the fuel line, the exhaust line, or the ignition wiring, do not use the blower until it has been repaired.

  • Page 5: Working Condition

    • Avoid using any accessory or attachment other than those bearing the RedMax mark for use with the blower. • When suspending a job or inspecting the blower, be sure to stop engine.

  • Page 6: Avoid Noise Problem

    • Keep operation area clear of all persons, particularly small children and pets. Injury may result from flying debris. • Avoid using the blower where stable footing and balance are not assured. • Never touch the spark plug or plug cord while the engine is in operation.

  • Page 7: Symbols On The Machine

    REFER TO OWNER’S MANUAL FOR MAINTE- NANCE SPECIFICATIONS AND ADJUSTMENTS. KOMATSU ZENOAH CO. Use RedMax 50:1 Oil ! For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to take a mistake.

  • Page 8: Parts Location & Specifications

    Parts Location & Specifications MODEL HBZ2600 Dimensions ( L x W x H ) Dry Weight (without tube and nozzle) Fuel Tank Capacity Engine Type Piston Displacement Durability Period Carburetor Ignition System Spark Plug Muffler Operating Engine Speed Idle Speed Max.

  • Page 9: Fuel

    3m(10ft) away from the fueling point before starting the engine. • The RedMax engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If RedMax oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use.

  • Page 10: Operation

    2. Pump the primer until fuel flows out in the clear tube. 3. Move the choke lever upward to close the choke. 4. Holding the blower handle, pull the starter rope with your right hand. (Throttle lever in idling position.) NOTE Avoid pulling the rope to its dead end or returning it by releasing the knob.

  • Page 11: Maintenance

    A clogged air filter may increase fuel consumption while cutting down the engine power. Never operate the blower without the air filter or with a deformed filter element because unfiltered dusty air will quickly ruin the engine. CLEANING AIR FILTER: 1.

  • Page 12: Fuel Filter

    • Inspect periodically the muffler for loose fasteners, any damage or corrosion. If any sign of exhaust leakage is found, do not use the blower and have it repaired immediately. • Note that failing to do so may result in the engine catching on fire.

  • Page 13: Air Inlet Screen

    WARNING • Never use the blower without the screen at the air intake of the blower. Before each use, check that, the screw(1) is securely tightened and is free from any damage.

  • Page 14: Optional Vacuum Kit Usage

    NOTE • Use the gloves during operation. • In adjustment of the blower/dust collector or in other types of operation, be sure to stop the engine and detach the spark plug cap. • Never start operation unless this machine is completely assembled.

  • Page 15: Dust Collecting Operation

    Optional vacuum kit usage (Tips for operation) DUST COLLECTING OPERATION • Put the dust bag belt on the shoulder, and adjust the length of the belt so as to permit easy operation. • Confirm that the dust bag is not twisted, pull the throttle trigger, and start dust collecting operation.

  • Page 16: Troubleshooting Guide

    (exhaust port) air cleaner When your unit seems to need further service, please consult with our RedMax service shop in your area. PROBABLE CAUSES incorrect fuel fuel filter is clogged out of normal range...

  • Page 17: Parts List

    (7) years after the machine is discontinued. It is also possible that some parts may be available even after the limit of seven (7) years.] APPLICABLE SERIAL NUMBERS : DRIVE UNIT 200101 and up HBZ2600 ENGINE UNIT 200101 and up July. 2002...

  • Page 18: Engine Group Parts

    Parts List Fig.1 ENGINE GROUP HBZ2600...
  • Page 19 Fig.1 ENGINE GROUP HBZ2600 Key# Part Number Description 4810-12111 CYLINDER 4810-12210 GASKET 4820-12130 BOLT TORX, M5x22 4810-13162 INSULATOR T1512-13120 GASKET, INSU 4810-13130 GASKET, CARB 4820-13180 BOLT TORX, M5x20 4810-16100 REEDVALVE-A(S) 4810-16110 • VALVECASE(S) 4810-16120 • REEDVALVE 4810-16130 • STOPPER 4810-16170 •...
  • Page 20 Parts List Fig.2 BLOWER GROUP HBZ2600...
  • Page 21 Fig.2 BLOWER GROUP HBZ2600 Key# Part Number Description 6811-11110 VOLUTE CASE T4022-11300 VOLUTE COVER-A 1600-33130 SCREW T4970-52001 SCREW TORX T4033-31310 GURD NET T4033-31320 SCREW T4033-31330 WASHER T4033-31340 SNAPRING T4033-31350 SPRING T4033-31360 SHAFT 1492-32120 WASHER T4970-51410 SCREW TORX 6811-11150 LEVER 6811-72200...

  • Page 22: California Emission Control Warranty Statement

    CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS THE CALIFORNIA AIR RESOURCES BOARD AND KOMATSU ZENOAH Co. ARE PLEASED TO EXPLAIN THE EMISSION CONTROL SYSTEM WARRANTY ON YOUR 1995 AND LATER LAWN AND GARDEN EQUIPMENT ENGINE. IN CALIFORNIA, NEW UTILITY AND LAWN AND GARDEN EQUIPMENT ENGINES MUST BE DESIGNED, BUILT AND EQUIPPED TO MEET THE STATE'S STRINGENT ANTI-SMOG STANDARDS.
  • Page 23 ZENOAH AMERICA INC. AT (770)-381-5147. IMPORTANT: YOU WILL RECEIVE A WARRANTY REGISTRATION CARD AT TIME OF PURCHASE. PLEASE FILL OUT THE CARD AND SEND IT TO RedMax / KOMATSU ZENOAH AMERICA WITHIN SEVEN (7) DAYS. BE SURE TO KEEP A COPY FOR YOUR RECORDS.
  • Page 24 à compter de la date de livraison initiale d’une unité. Telles sont les limites de la garantie. Le coût du transport de l'unité jusqu'au revendeur RedMax et depuis celui-ci sera à la charge de l'acheteur. L'acheteur ne supportera pas le coût de main d'oeuvre du diagnostic qui amène à la conclusion qu'une pièce garantie est défectueuse, si ce diagnostic est effectué...
